3-Point cam, right version, Steel zinc-plated
3-Point cam, left version, Steel zinc-plated

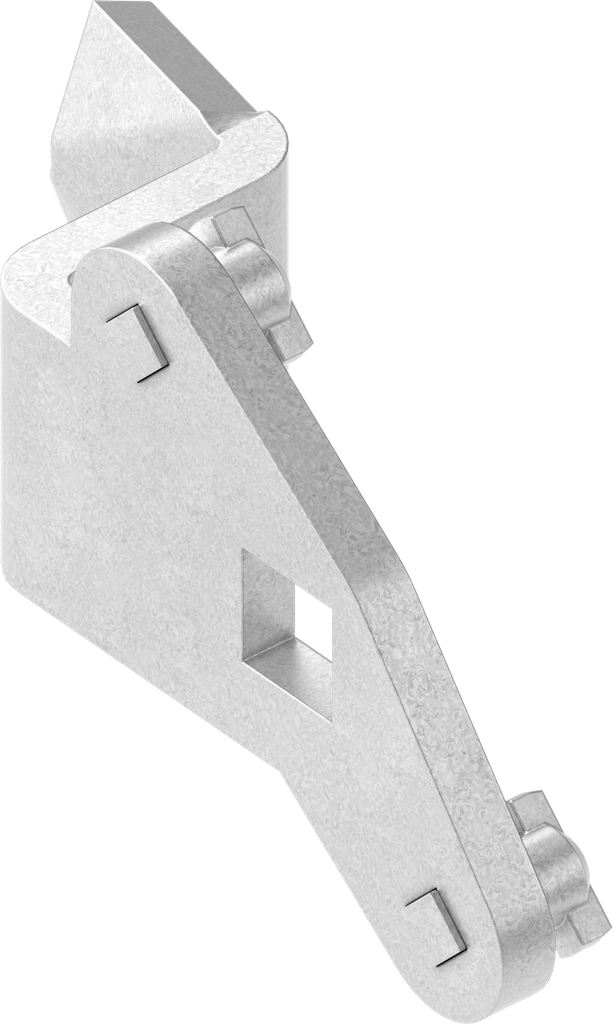

3-Point cam, right version, Steel zinc-plated; 1000-U544-38
Offset h = 20 mm
No stock item, please ask for availability
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
The ramp increases the compression distance by 4 mm.
Internal Reference:
1000-U544-38
Barcode:
1000-U00544-0000038
Product Type:
Cam
Program:
1000
Catalog sheet:
3YC-140
Material of the module :
Steel
Surface of the module:
zinc-plated
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 26 mm
Compression Value :
3 mm

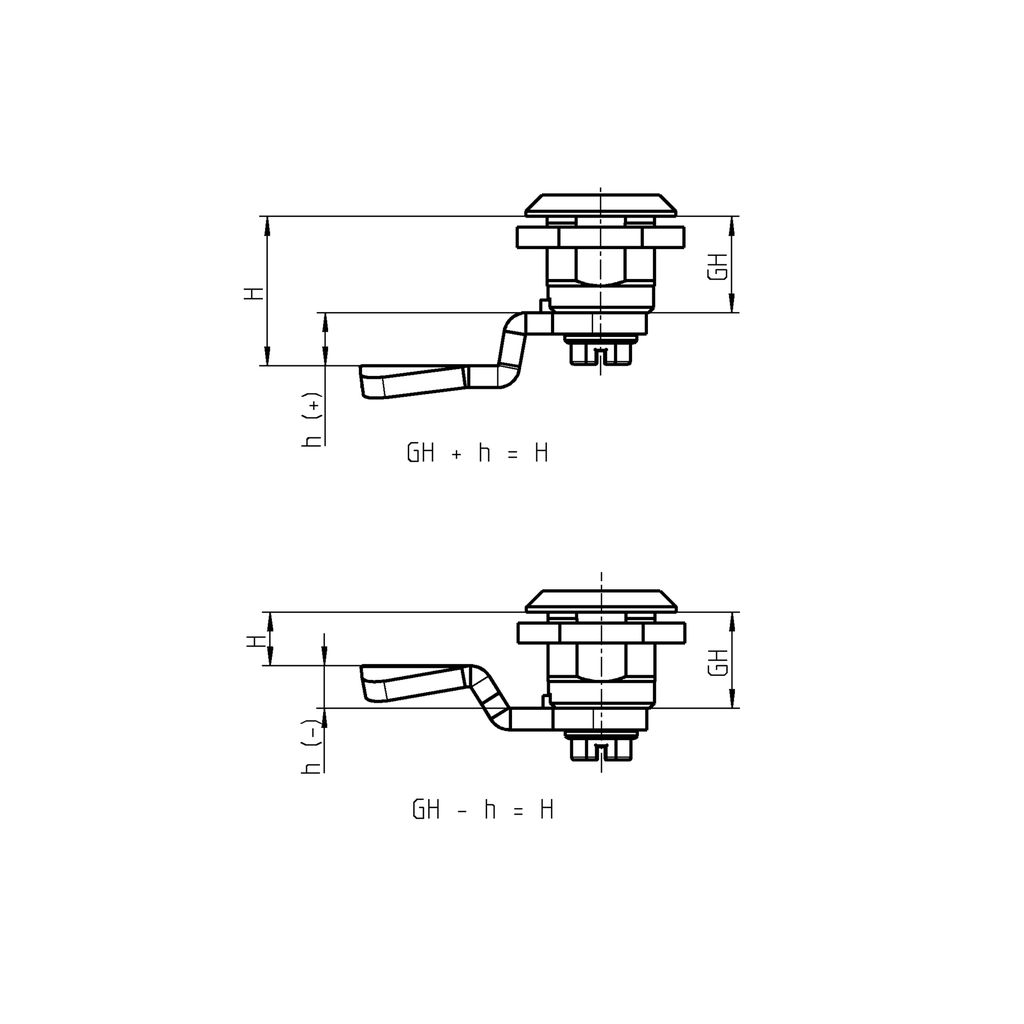

Offset:
positive
offset of cam:
20 mm

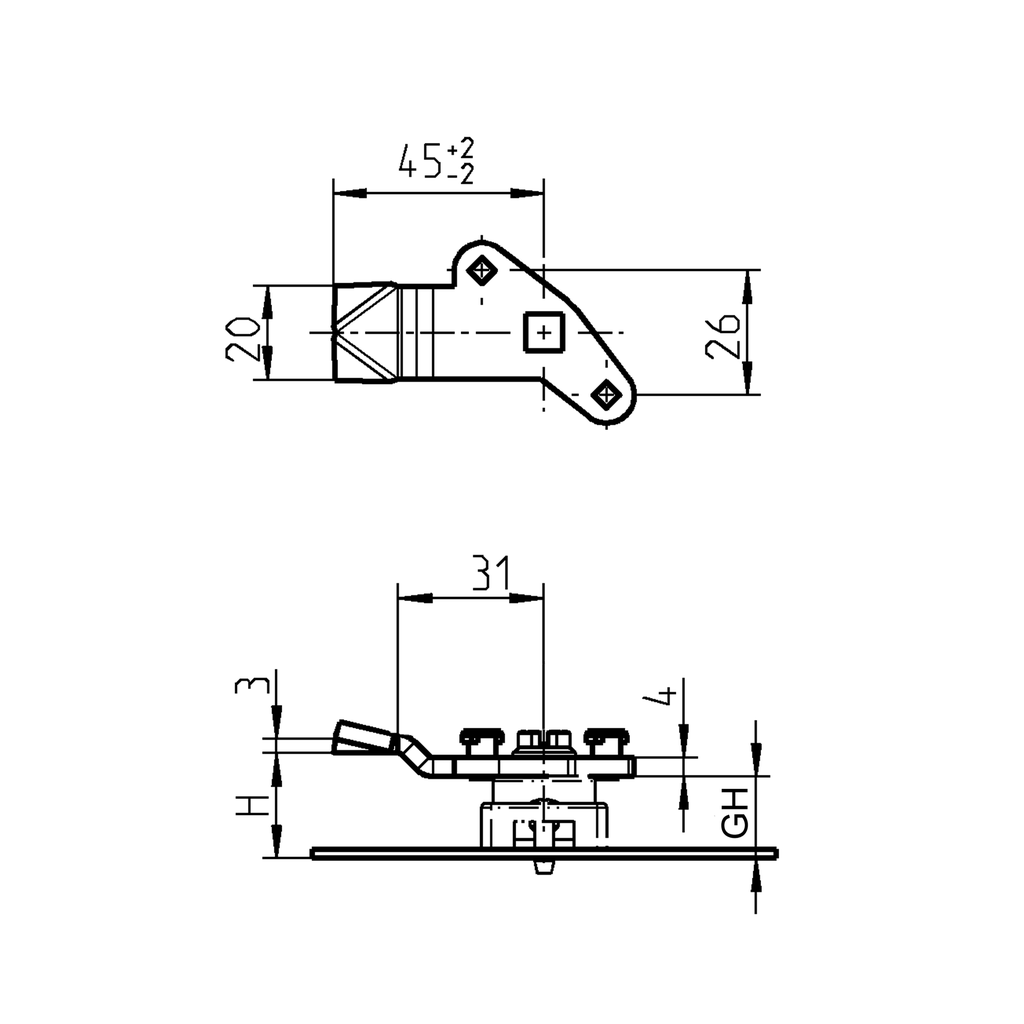

Dimension L:
45 mm
Spoon:
Yes
Dimension t:
4 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
