L-handle quarter turn for padlock, Steel black powder-coated
L-handle quarter turn for padlock, Stainless steel AISI 316

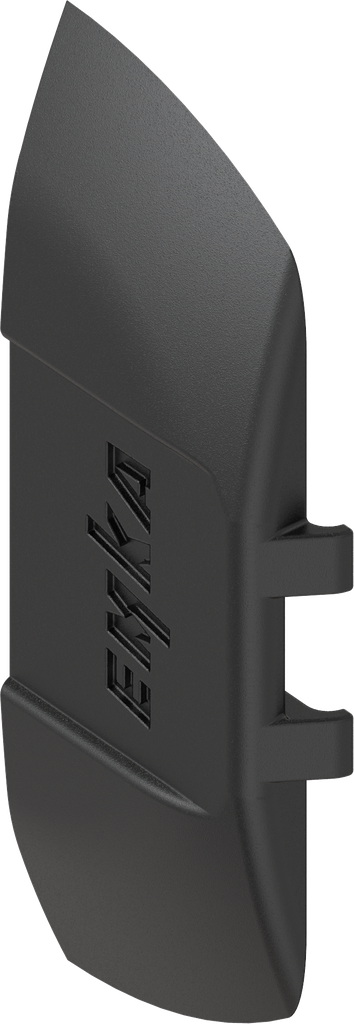

Ramp self-adhesive, Polyamide black; 1000-U858
increases the compression distance of the lock by 4 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Function:
Attention:

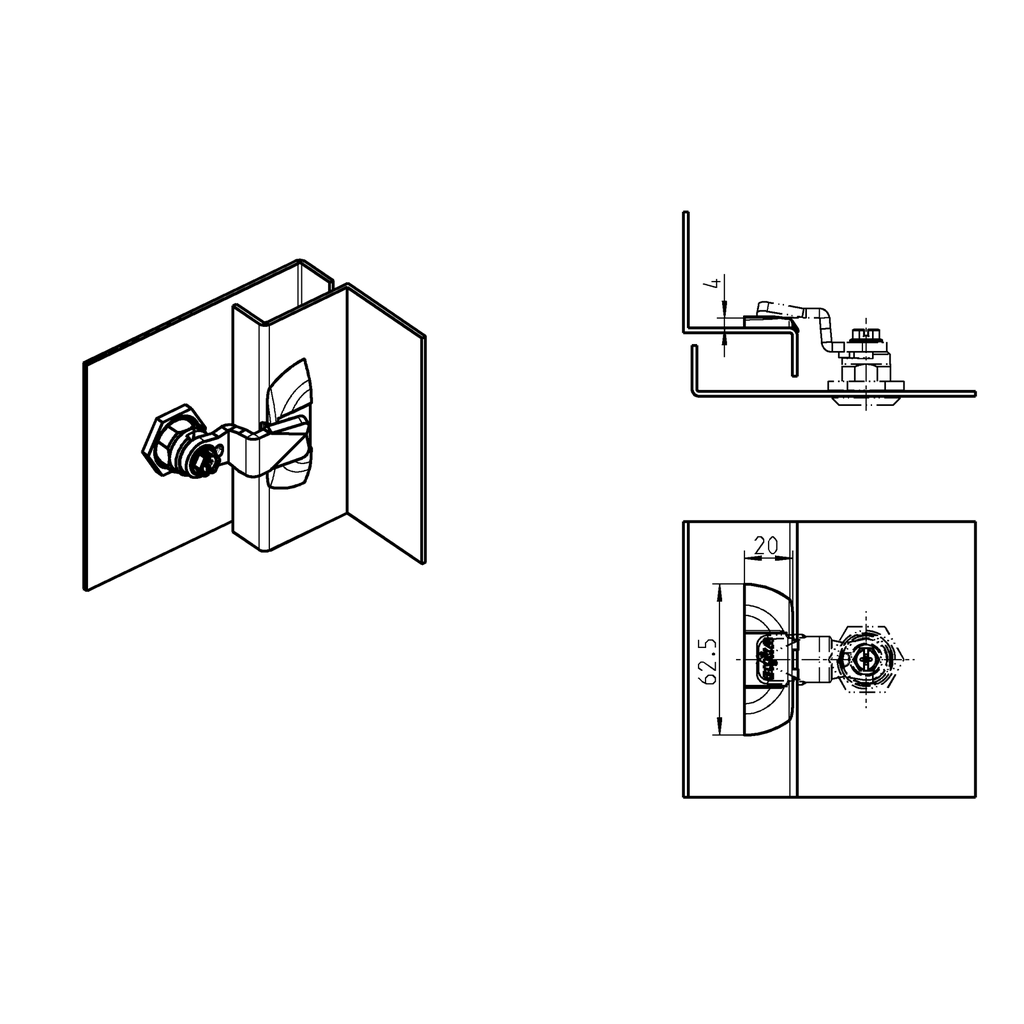

When using the Leading ramp the H-dimension resp. the A-dimension of the cam increases by 4 mm
Internal Reference:
1000-U858
Barcode:
1000-U00858-0000000
Product Type:
Ramp
Program:
1000
Catalog sheet:
1C-170
Material of the module :
Polyamide
Surface of the module:
black
Number of Possible Locking Points:
1 point, 3 point
Guiding ramps for cams:
Yes
Mounting Positions :
Inside the sealing
Compression Value :
4 mm
Door Version :
Left,Right
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
