Rod support, Steel raw
Loop, Steel zinc-plated

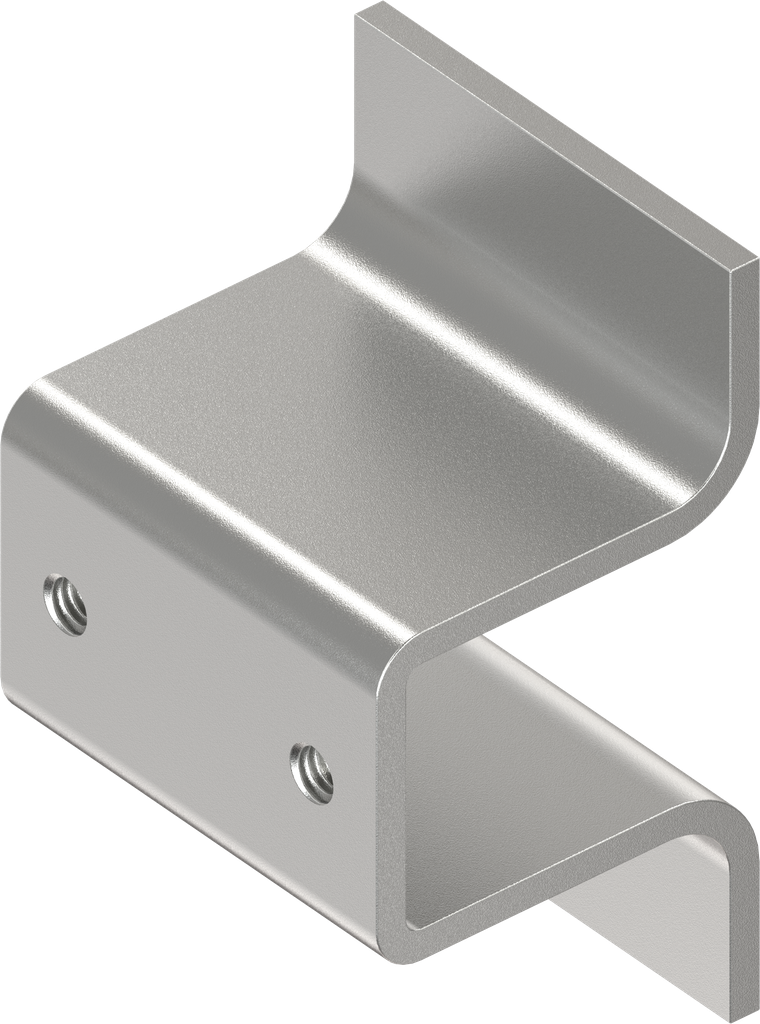

Rod support, Steel raw; 1001-21
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:

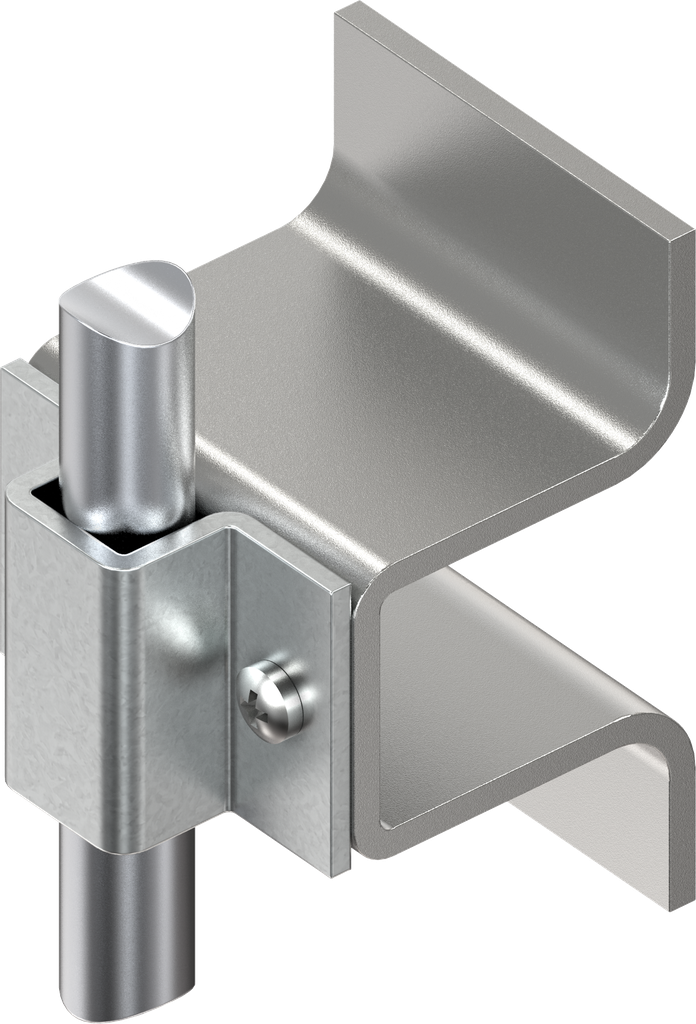

In order to complete the rod guide, loop 1001-22 is required.
Internal Reference:
1001-21
Barcode:
1001-000021-0000000
Product Type:
Rod guide
Material:
Steel
Program:
1001
Surface:
raw
Catalog sheet:
1C-640

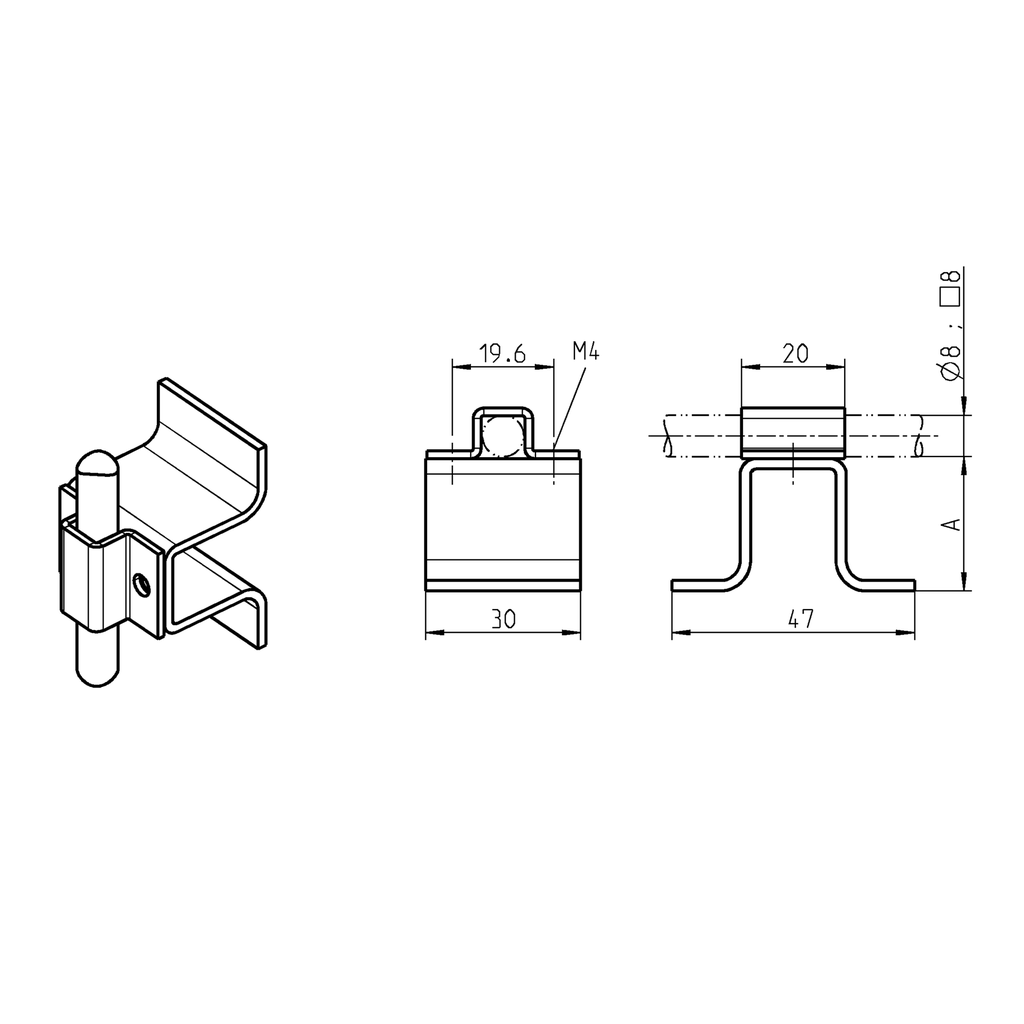

Dimention A:
A 26
Fixing of rod guide:
Bottom part weld-on, upper part screwed
For Square Bar:
8
For Round Rod:
Ø8
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
