Square adapter, Steel zinc-plated

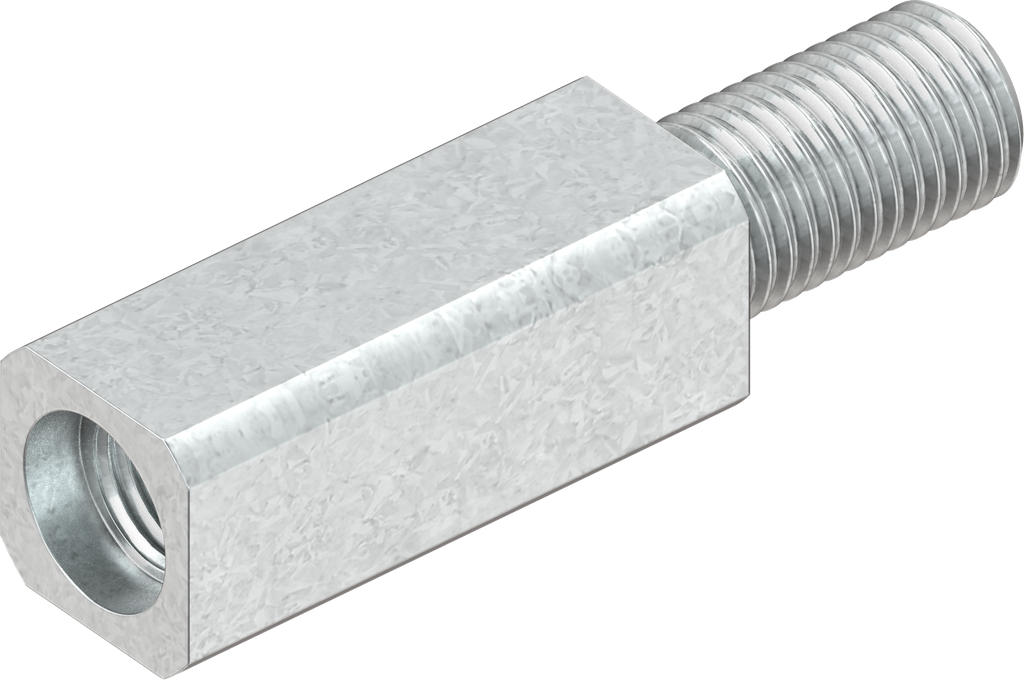

Square adapter, Steel zinc-plated; 1001-65
for adapter system with insulated door, L = 20 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:

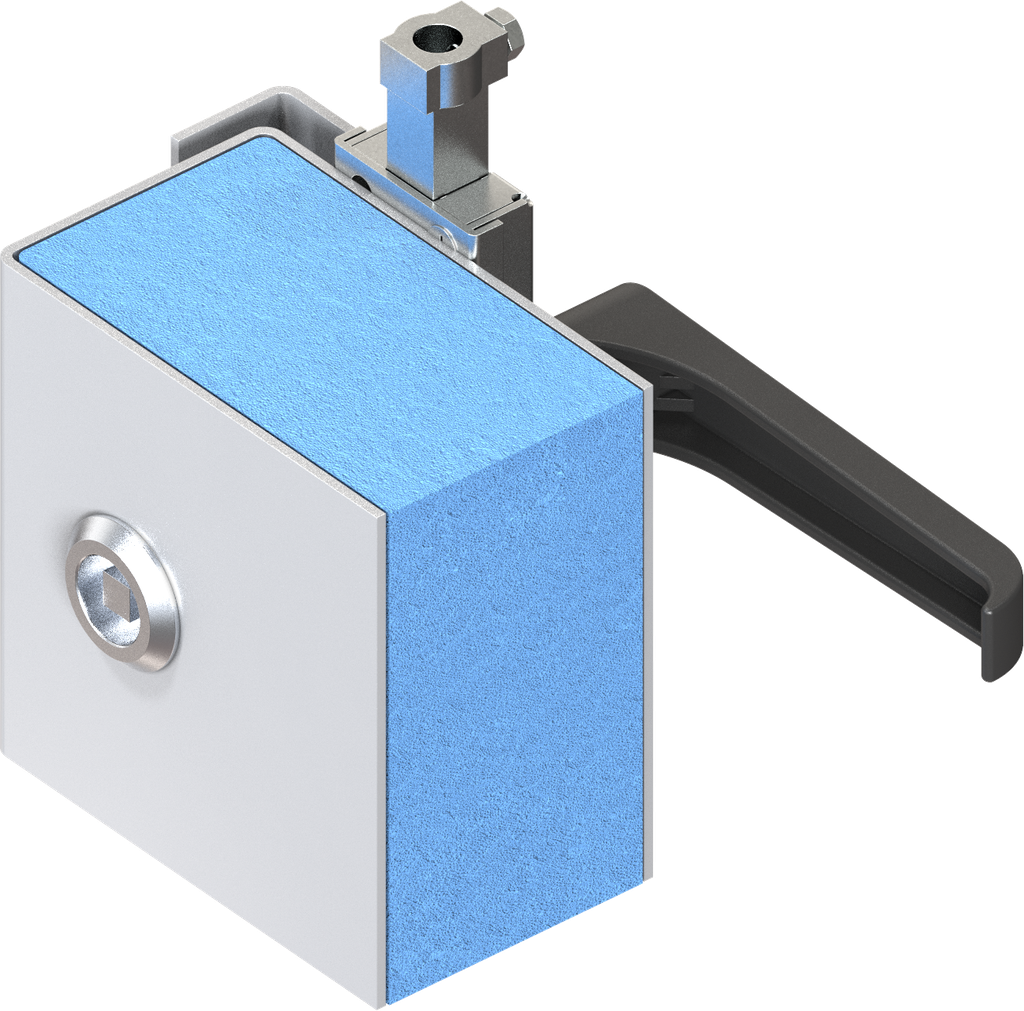

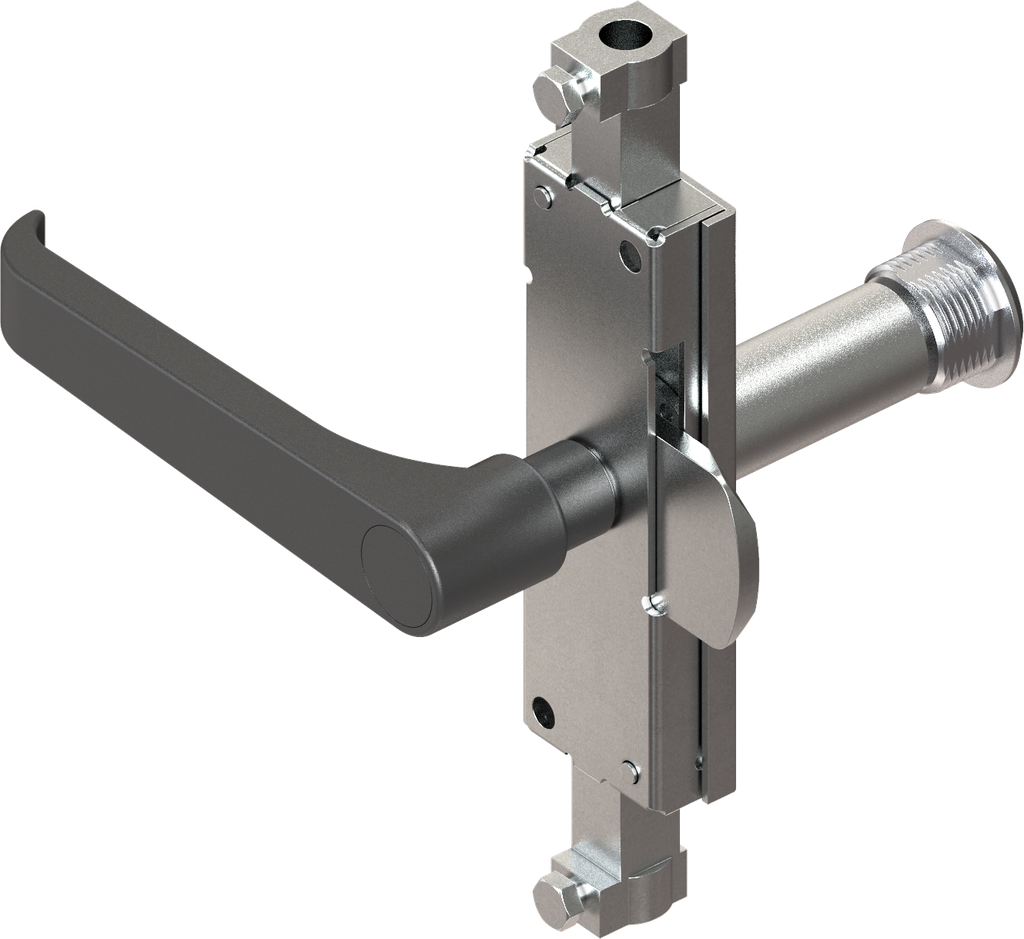

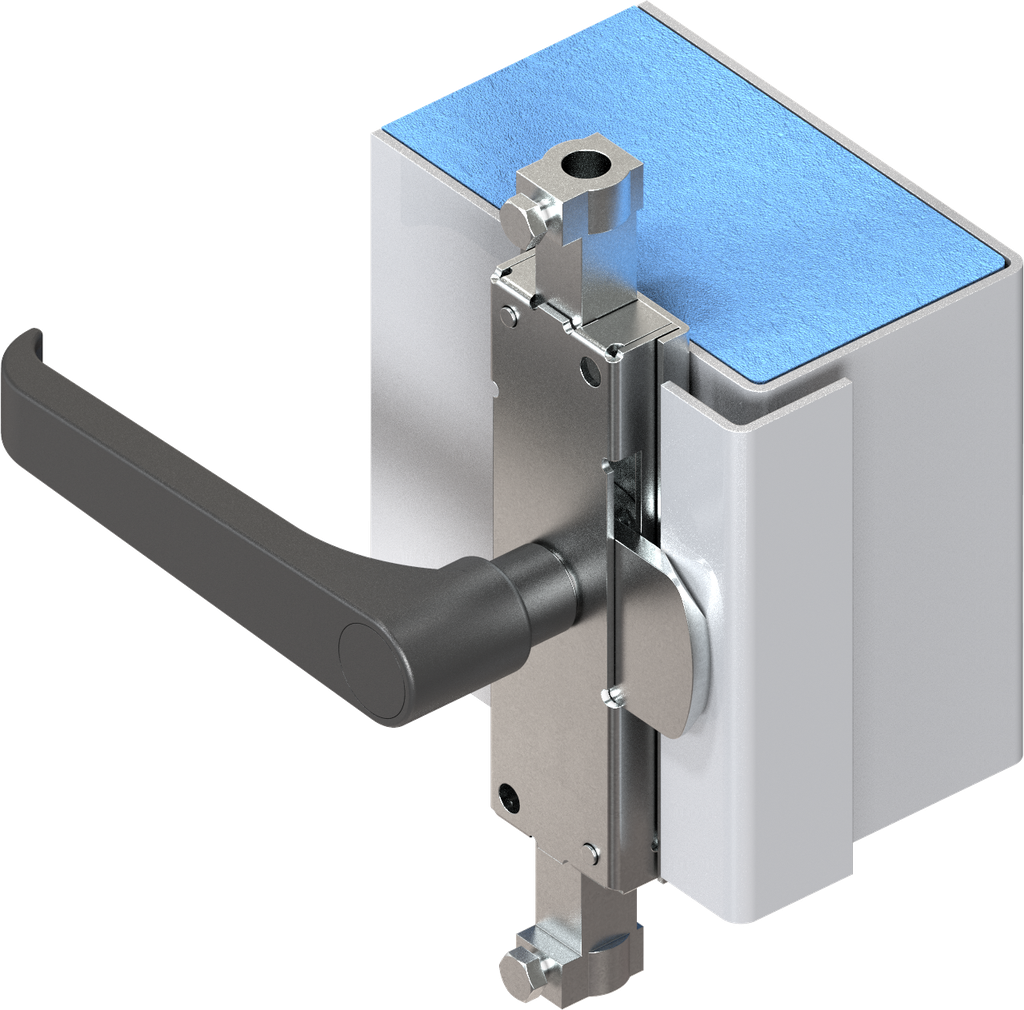

The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

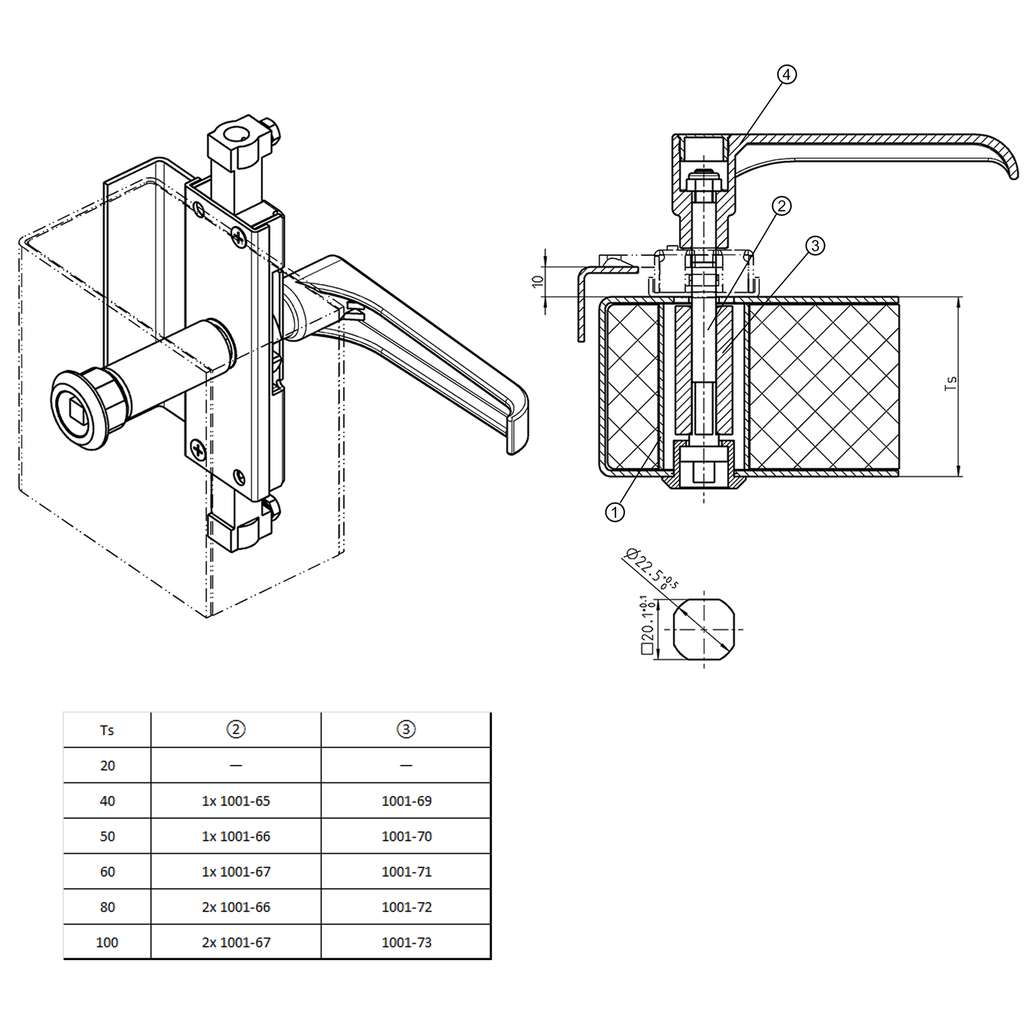

1 = e.g. tube Ø 30x1.5
2 = Square adapter
3 = Coupling piece
4 = Inside handle
Adapter 1001-65 is required in addition for the inside handle
The inside handle is not suitable for lockable T- and L-handles
Internal Reference:
1001-65
Barcode:
1001-000065-0000000
Product Type:
Adapter
Material:
Steel
Program:
1001
Surface:
zinc-plated
Catalog sheet:
2A-180
Adapter type:
Adapter for adapter system for insulated doors

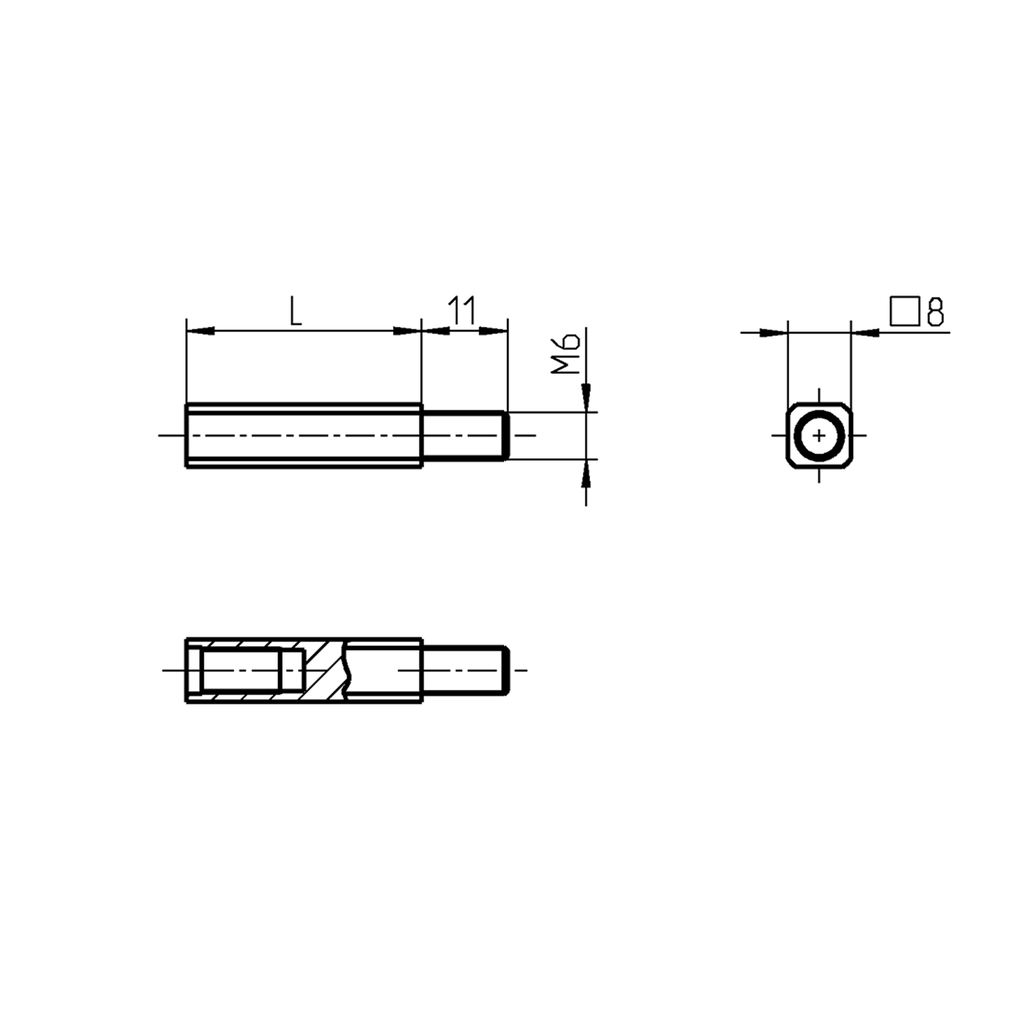

Dimension L:
20 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
