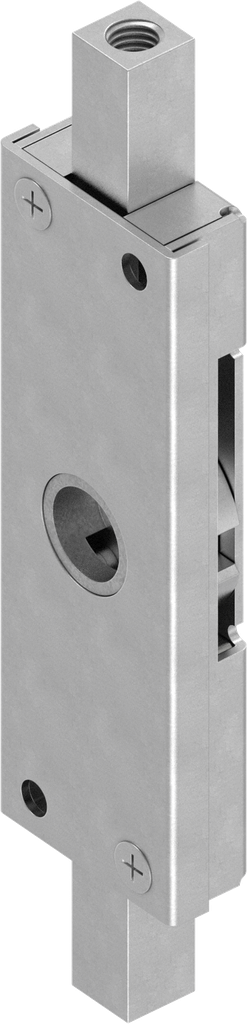

Rod control, left version, for pressure-tight system, round rods and square rods stroke 18, Steel zinc-plated; 1001-U10
Locking systems for high loads
100% original guarantee
Return within 30days
Free delivery on all orders

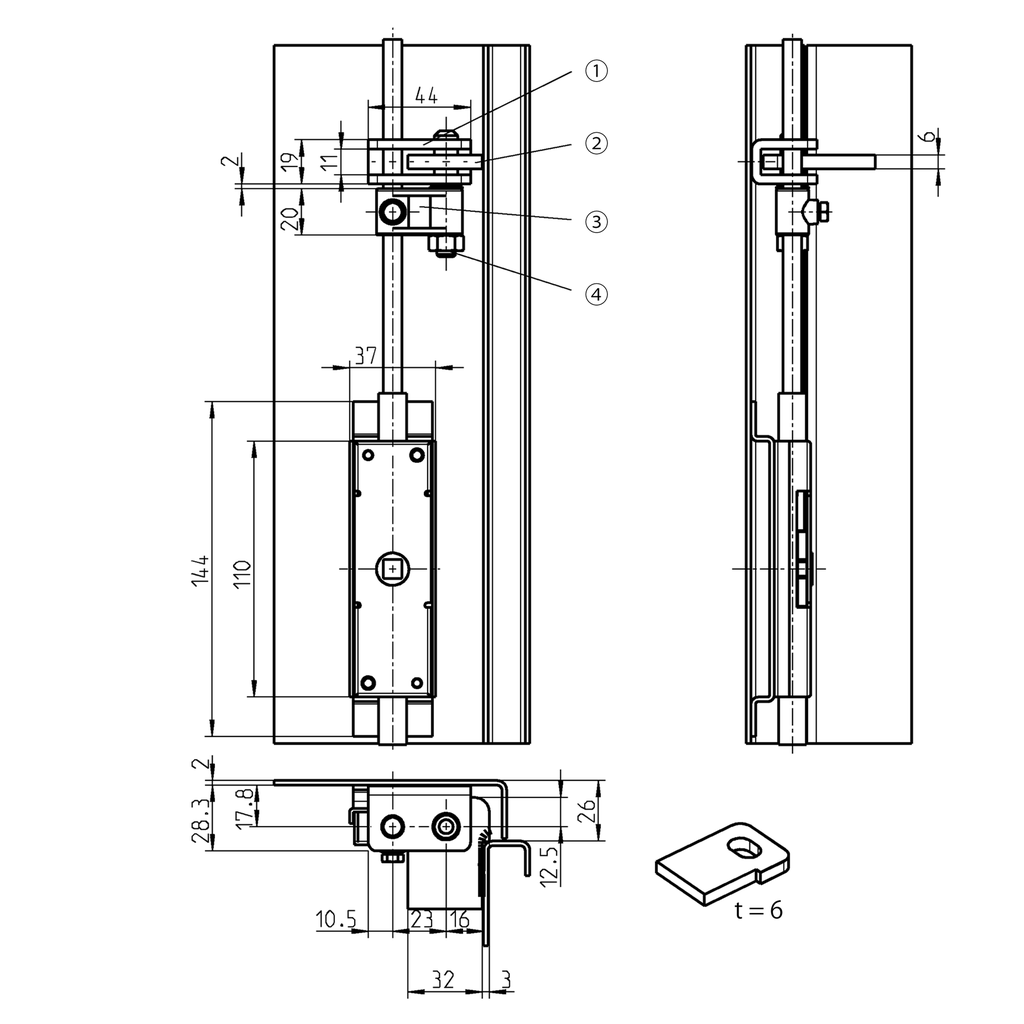

Product information:
1 = Fork
2 = Locking piece
3 = Connector
4 = Locking pin
Internal Reference:
1001-U10
Barcode:
1001-U00010-0000000
Product Type:
Rod control
Program:
1001
Catalog sheet:
2B-180
Material of the module :
Steel
Surface of the module:
zinc-plated

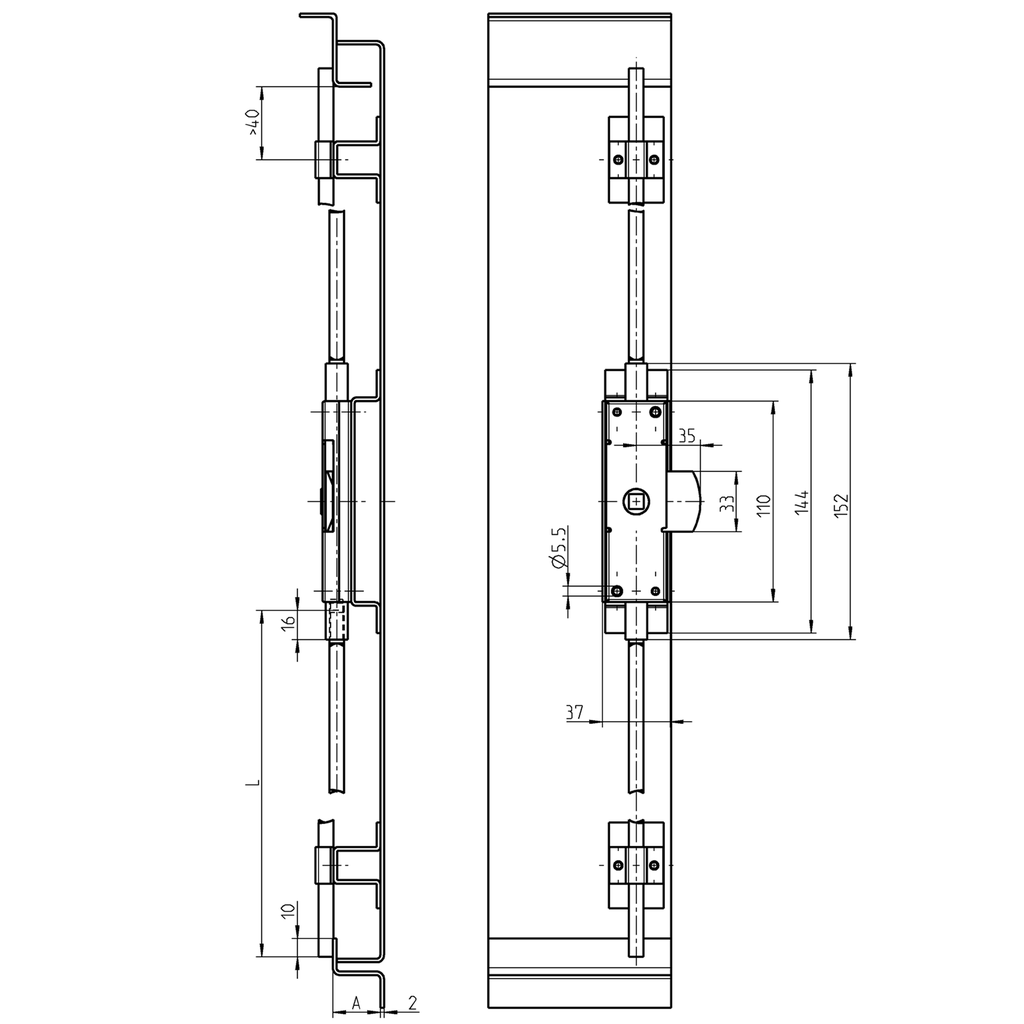

Dimention A:
A 20
Rod:
Round rod,Square rod,Round rod with pressure tight system
Connection rod mount:
Female thread M8 x 20
Mounting Positions :
Inside the sealing
Lock for higher loads:
Yes
Door Version :
Left
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
