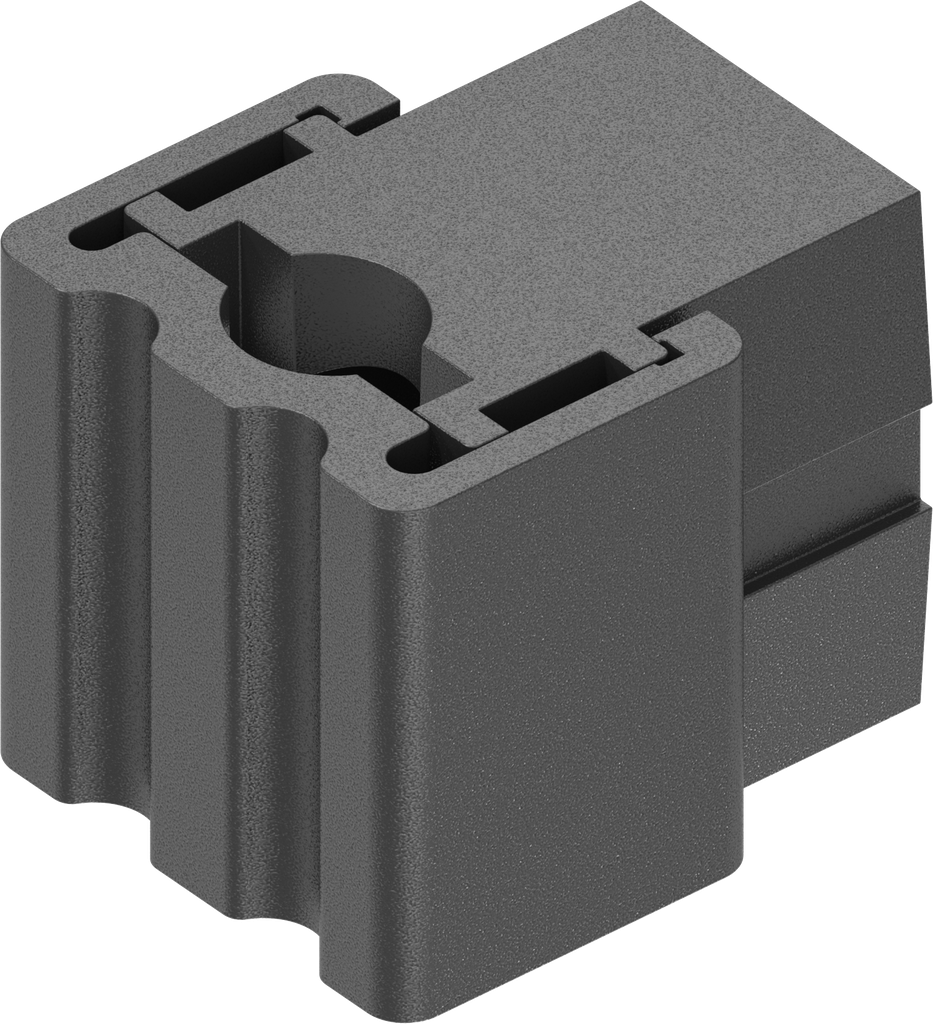

Rod guide for flat rod 14 x 3 or round rod 8 mm, Polyamide black; 1001-U40
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1001-U40
Barcode:
1001-U00040-0000000
Product Type:
Rod guide
Program:
1001
Catalog sheet:
3ZC-220
Material of the module :
Polyamide
Surface of the module:
black

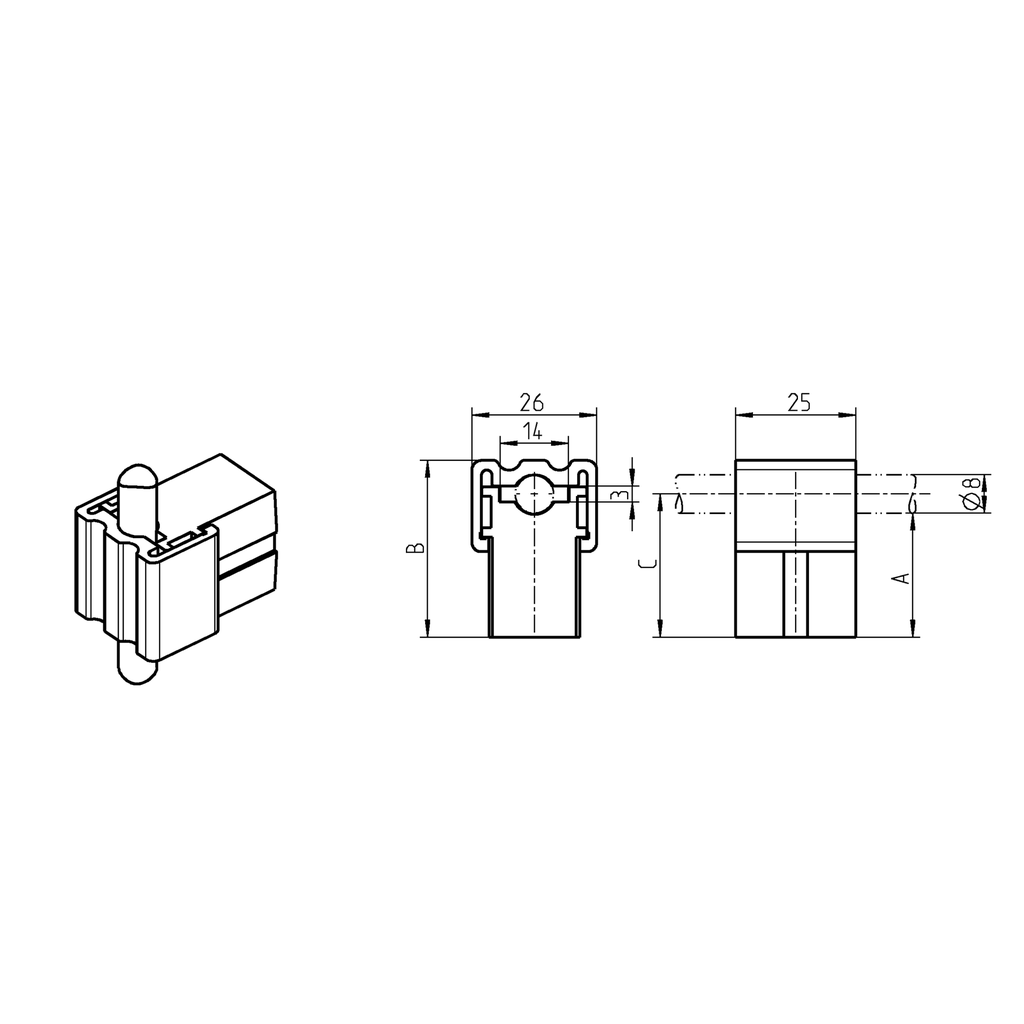

Dimention A:
A 20
Number of Possible Locking Points:
2 points, 3 point
Dimension B:
31 mm
Fixing of rod guide:
Weld stud M6 x 20,Weld stud M6 x 16,Weld stud M6 x 12
Dimension C:
24 mm
For Flat Bars:
14 x 3, horizontal
For Round Rod:
Ø8
Assembly:
Pre-assembly of bottom part,Cover will clip-on
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
