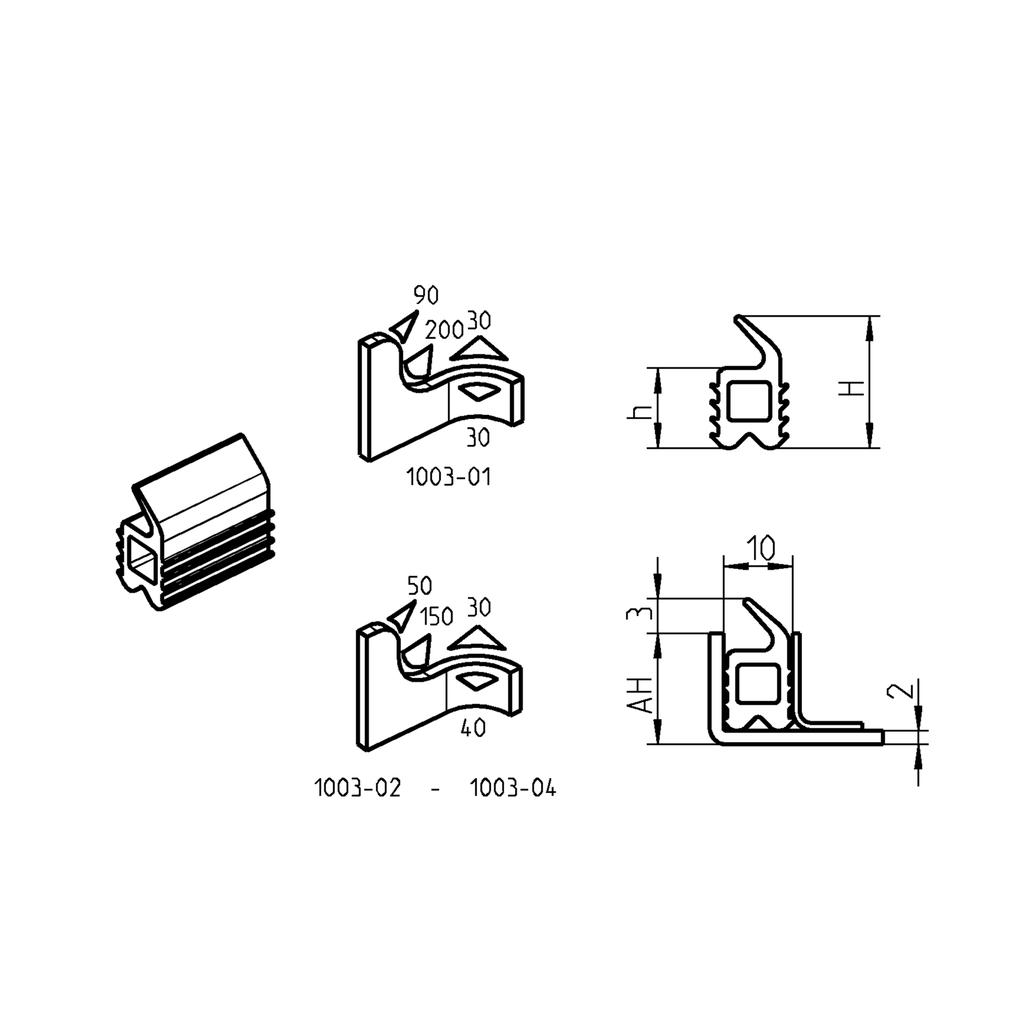

Lip profile H = 27 mm, EPDM 55 ± 5 Shore A black
Lip profile H = 19 mm, EPDM 55 ± 5 Shore A black

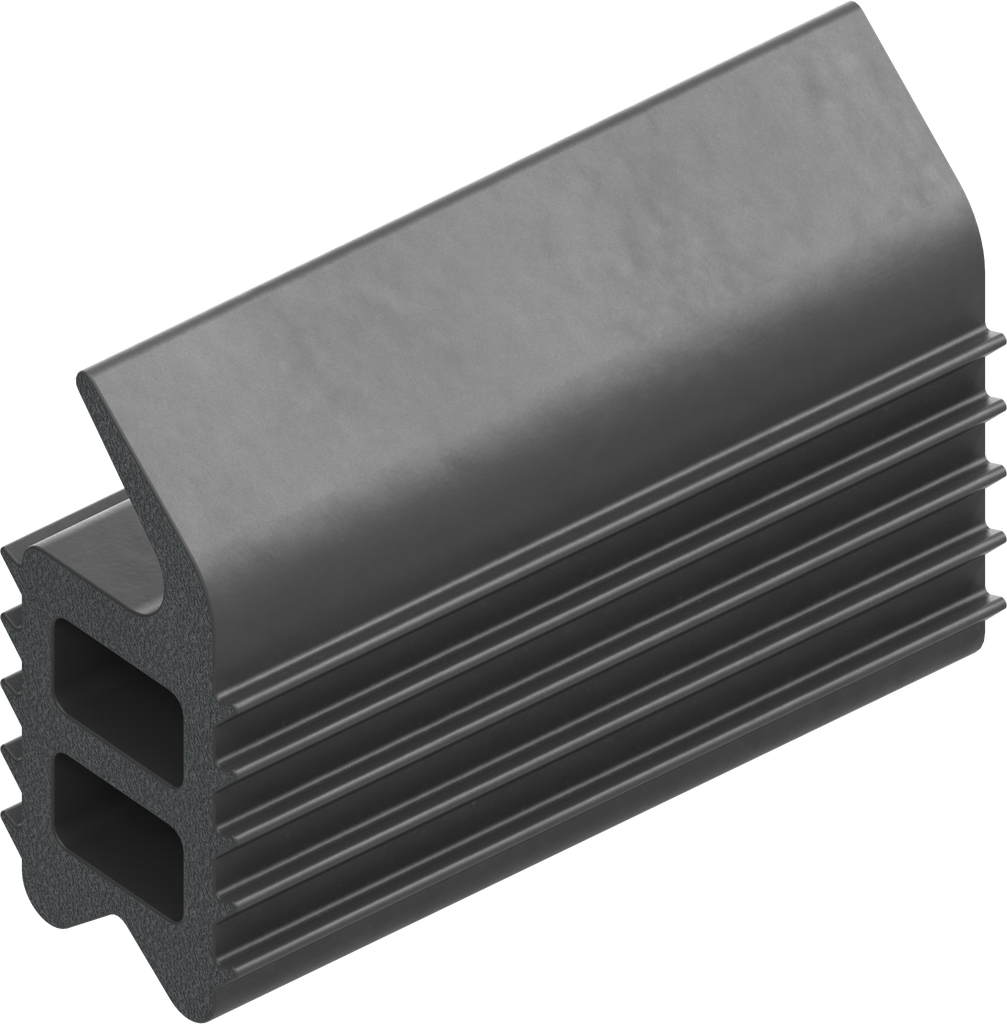

Lip profile H = 21 mm, EPDM 55 ± 5 Shore A black; 1003-02
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1003-02
Barcode:
1003-000002-0000000
Product Type:
Seal
Material:
EPDM 55 ± 5 Shore A
Program:
1003
Surface:
black
Catalog sheet:
5A-190
Dimension AH:
20 mm
Seal element:
Sealing lip, top
Seal Type:
Insertable profile
Dimension h:
13.50 mm
Dimension H:
21 mm
Clamping Channel:
10
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
