4-Lip profile H = 24.5 mm, Foam rubber EPDM 25 ± 5 Shore A black
Sealing profile made of fire protection material, Silicone foam blue black

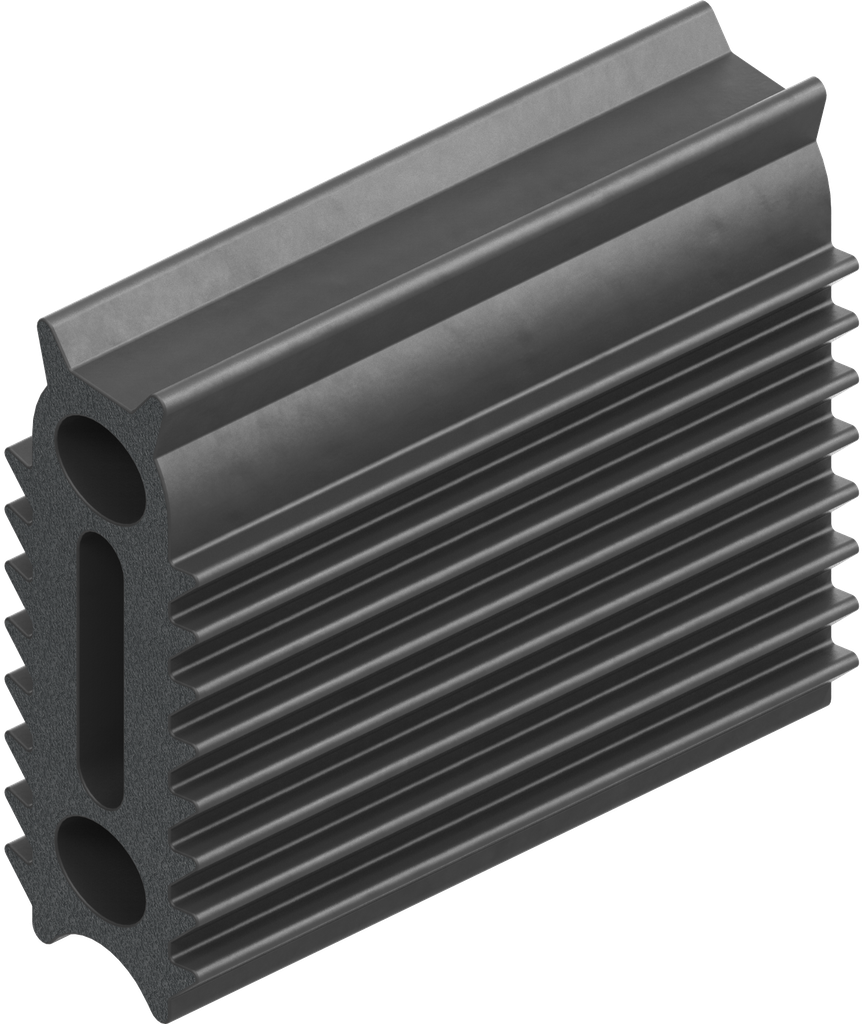

4-Lip profile H = 26.5 mm, Foam rubber EPDM 25 ± 5 Shore A black; 1003-24-N
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1003-24-N
Barcode:
1003-000024-000000N
Product Type:
Seal
Material:
Foam rubber EPDM 25 ± 5 Shore A
Program:
1003
Surface:
black
Catalog sheet:
5A-190

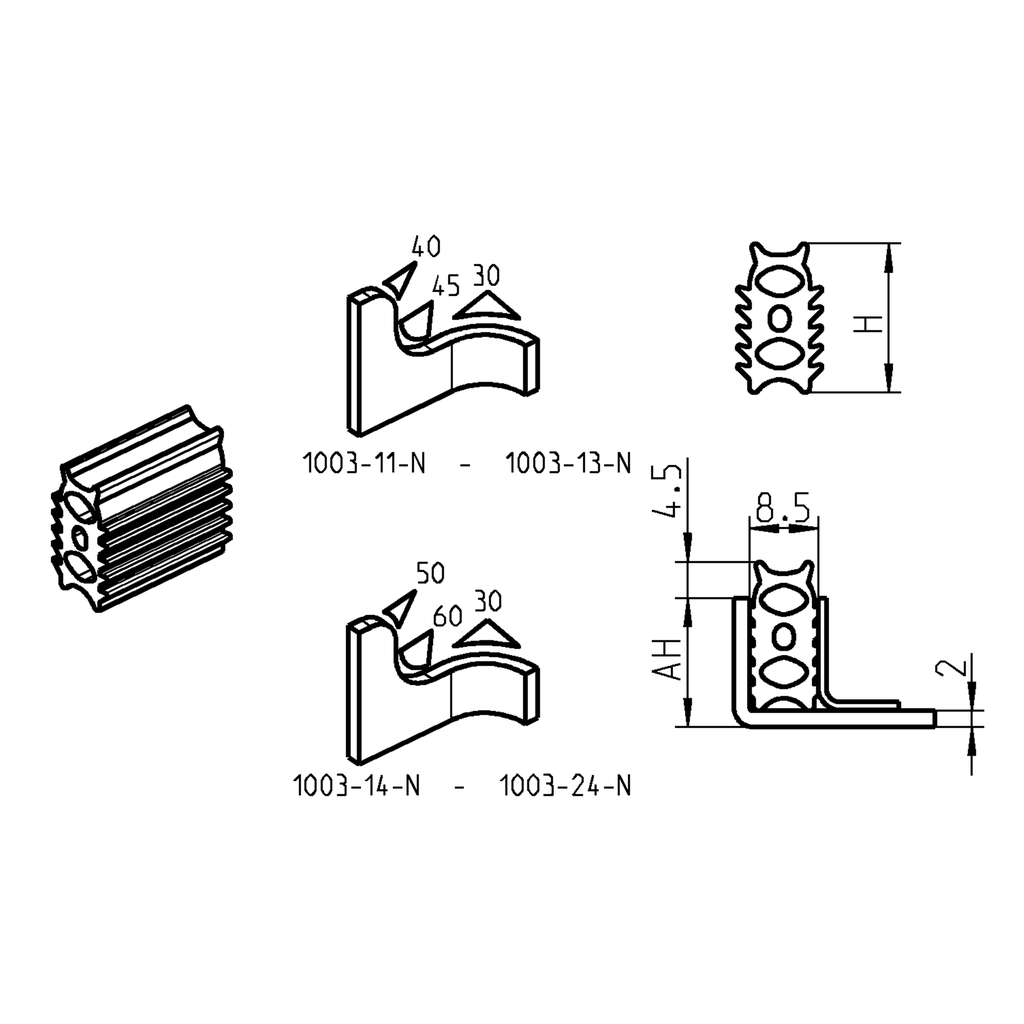

Dimension AH:
24 mm
Seal element:
Sealing balloon, top
Seal Type:
Insertable profile
Dimension H:
26.50 mm
Clamping Channel:
8.5
UL standard:
UL 50,UL 94-HB
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
