Sealing profile, self-clamping, Silicon solid material 60 ± 5 Shore A blue
Cam without catch, Steel zinc-plated

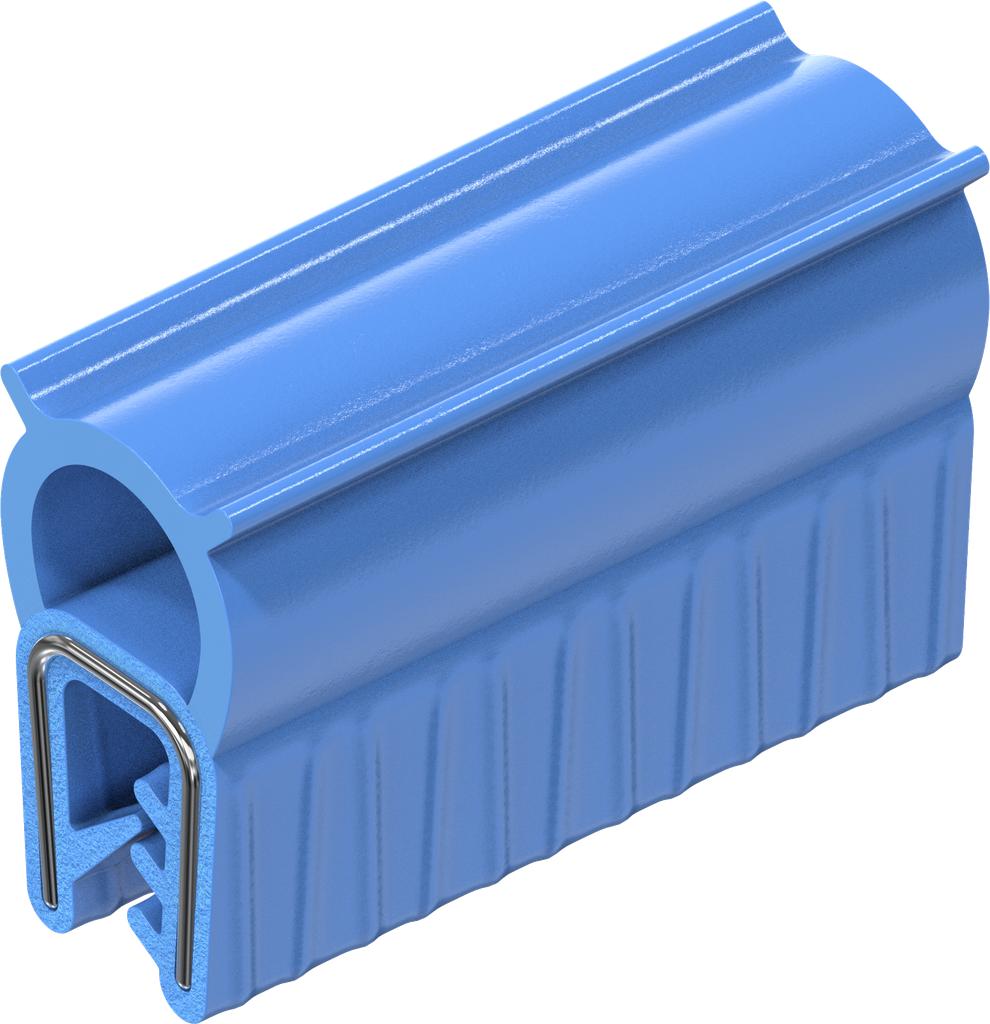

Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 70 ± 5 Shore A blue; 1011-S180
Seal made of FDA compliant material
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1011-S180
Barcode:
1011-S00180-0000000
Product Type:
Seal
Material:
Foam rubber NBR; clamping profile NBR 70 ± 5 Shore A
Program:
1011
Surface:
blue
Special industrial requirements:
The used compounds are compliant with the requirements of FDA 21 CFR 177.2600
Seal element:
Sealing balloon, top
Seal Type:
Clip-on profile
Spring Core:
Steel spring core
Clamping edge is or is up to:
3.5
Terminal Edge Of:
1
