Cam, Stainless steel AISI 304
Cam, Stainless steel AISI 304

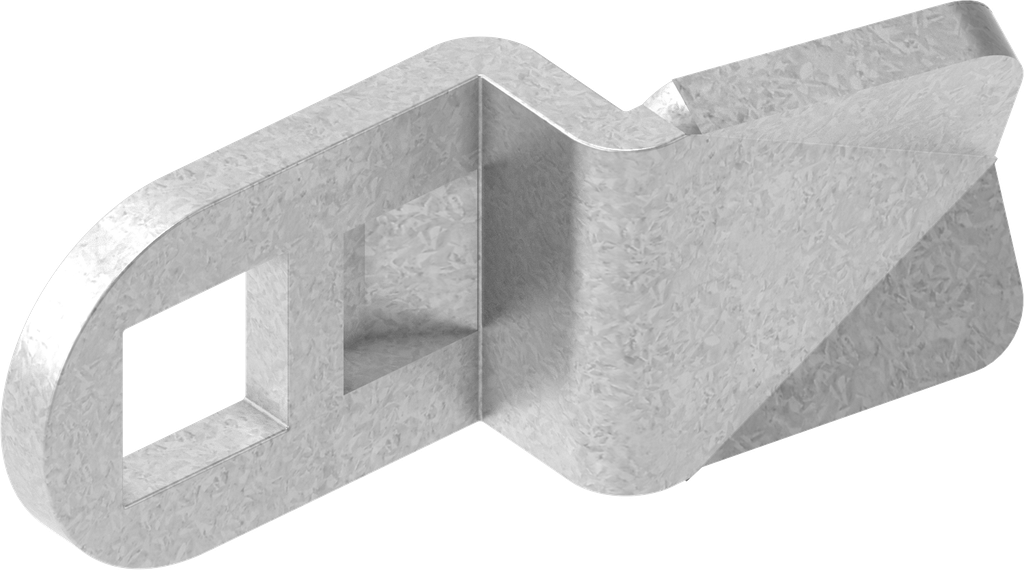

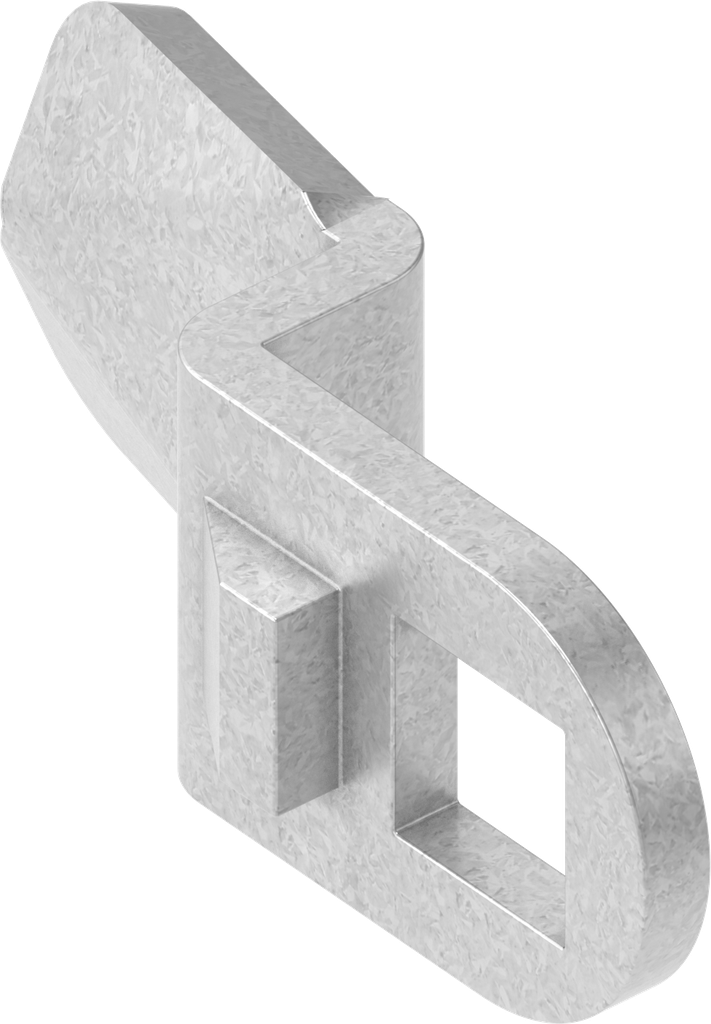

Cam, Steel zinc-plated; 1022-08
Offset h = 6 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1022-08
Barcode:
1022-000008-0000000
Product Type:
Cam
Material:
Steel
Program:
1022
Surface:
zinc-plated
Catalog sheet:
1A-140
Number of Possible Locking Points:
1 point
Mounting Positions :
Inside the sealing
Compression Value :
2 mm
Offset:
positive
offset of cam:
6 mm

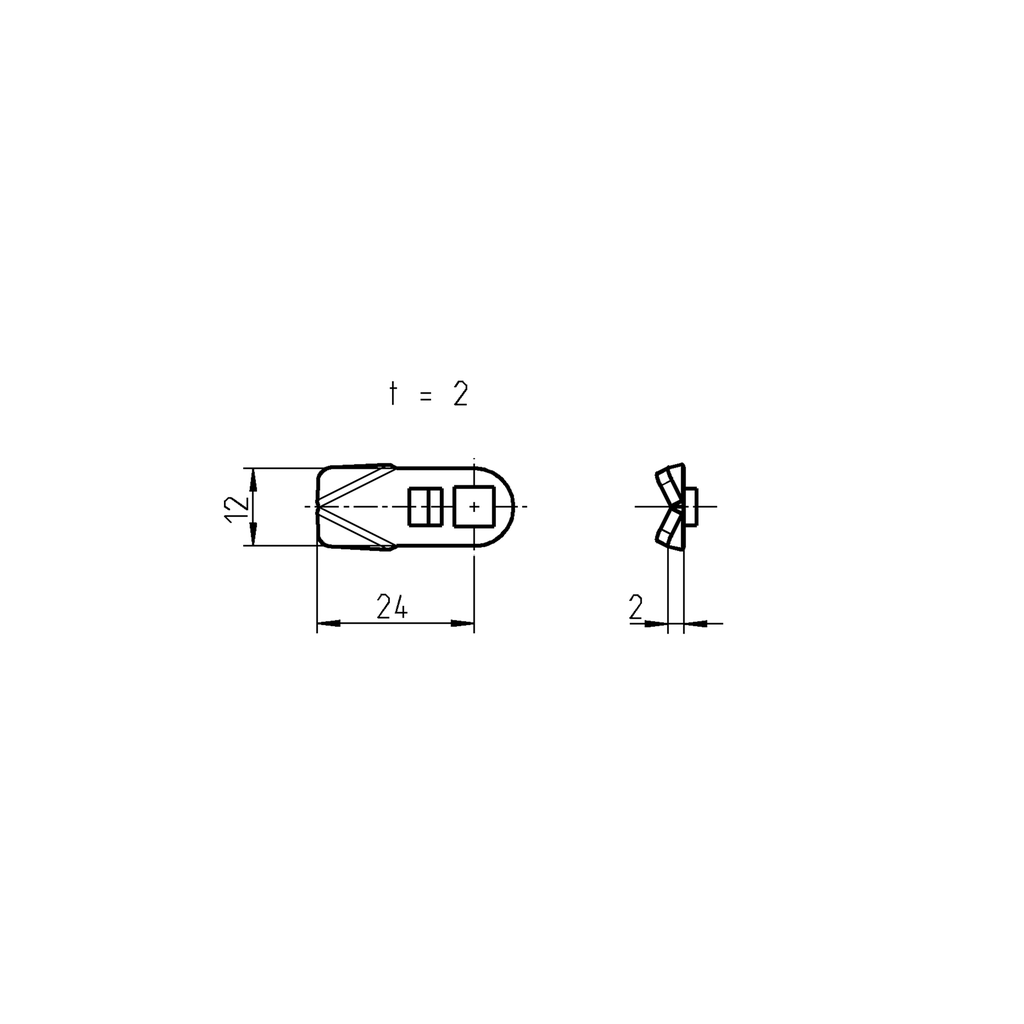

Dimension L:
24 mm
Spoon:
Yes
Dimension t:
2 mm
