Cam, Steel zinc-plated
Cam, Steel zinc-plated
Dust cap, Polyethylene black
Dust cap, Polyethylene black

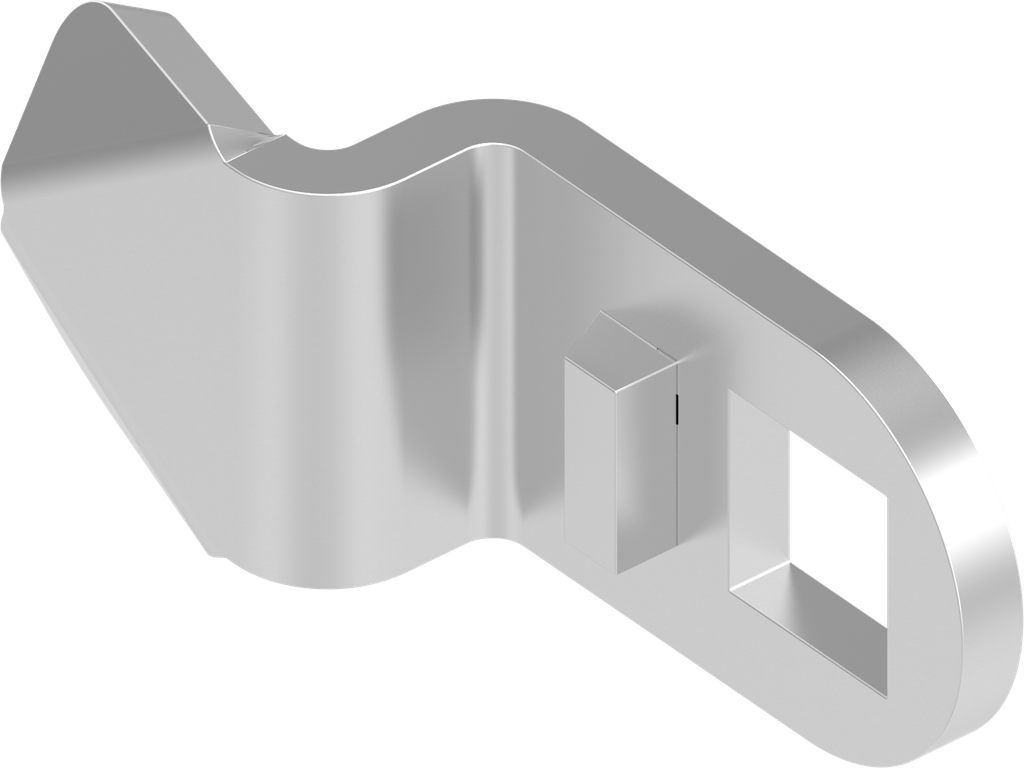

Cam, Stainless steel AISI 304; 1022-20-PC

https://20260223-uat.emka.opaas.sh/shop/1022-20-pc-cam-stainless-steel-aisi-304-60858 https://20260223-uat.emka.opaas.sh/web/image/product.template/60858/image_1920?unique=91468d0

Offset h = -6 mm

0.88 € 0.88 EUR 0.88 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Inside the sealing
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1022-20-PC
    Barcode: 1022-000020-00000pc
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1022
    Catalog sheet: 1A-120
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: negative
    offset of cam: -6 mm

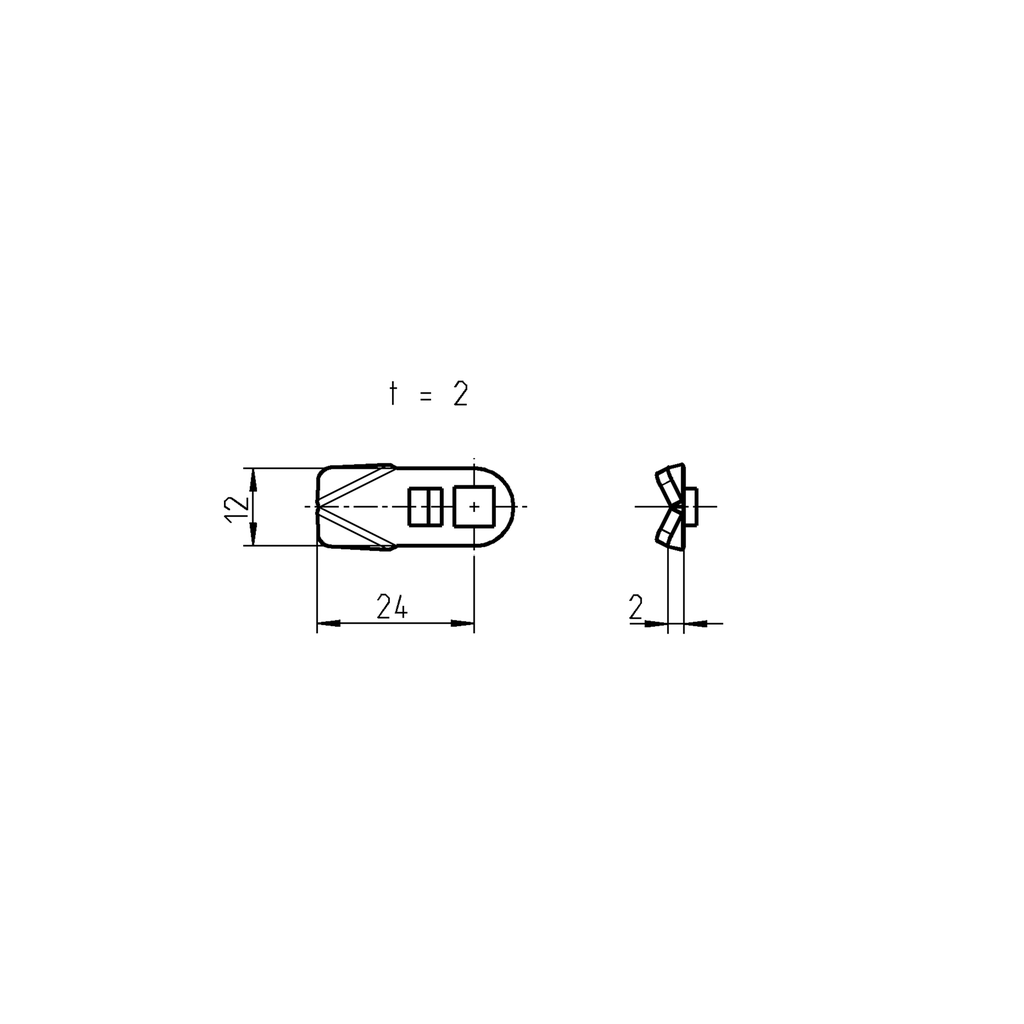

    Dimension L: 24 mm
    Spoon: Yes
    Dimension t: 2 mm
    No Specifications
    View All Products
    Housing
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
