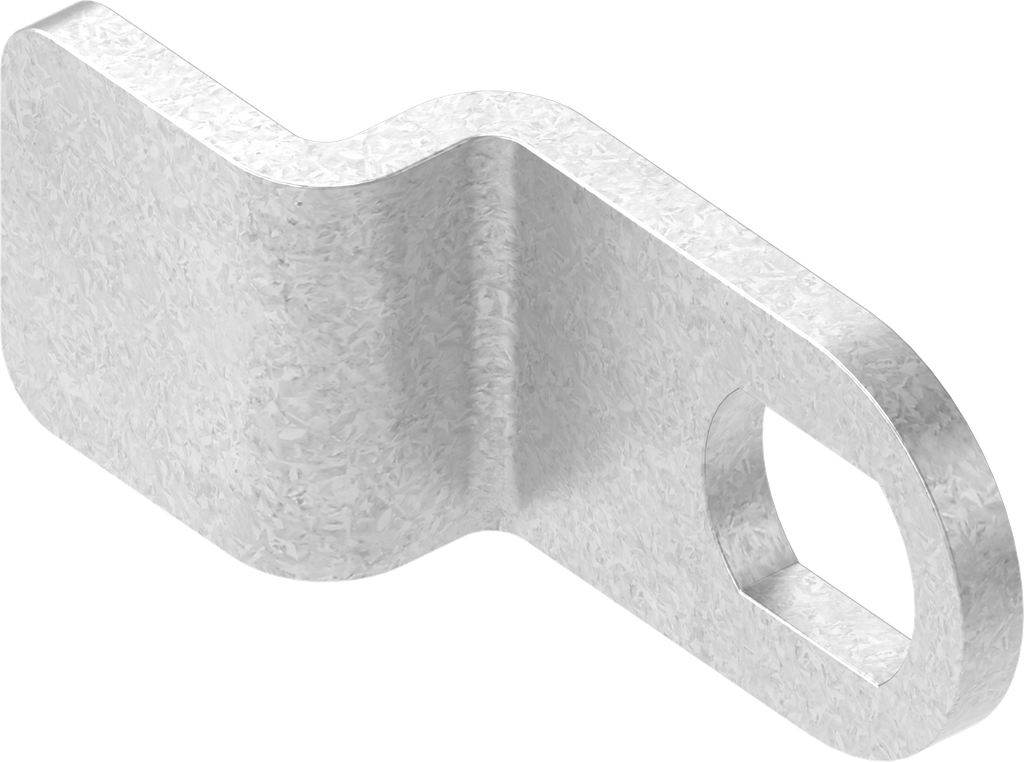

Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated; 1022-50
Offset h = 6 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Akeneo Note:

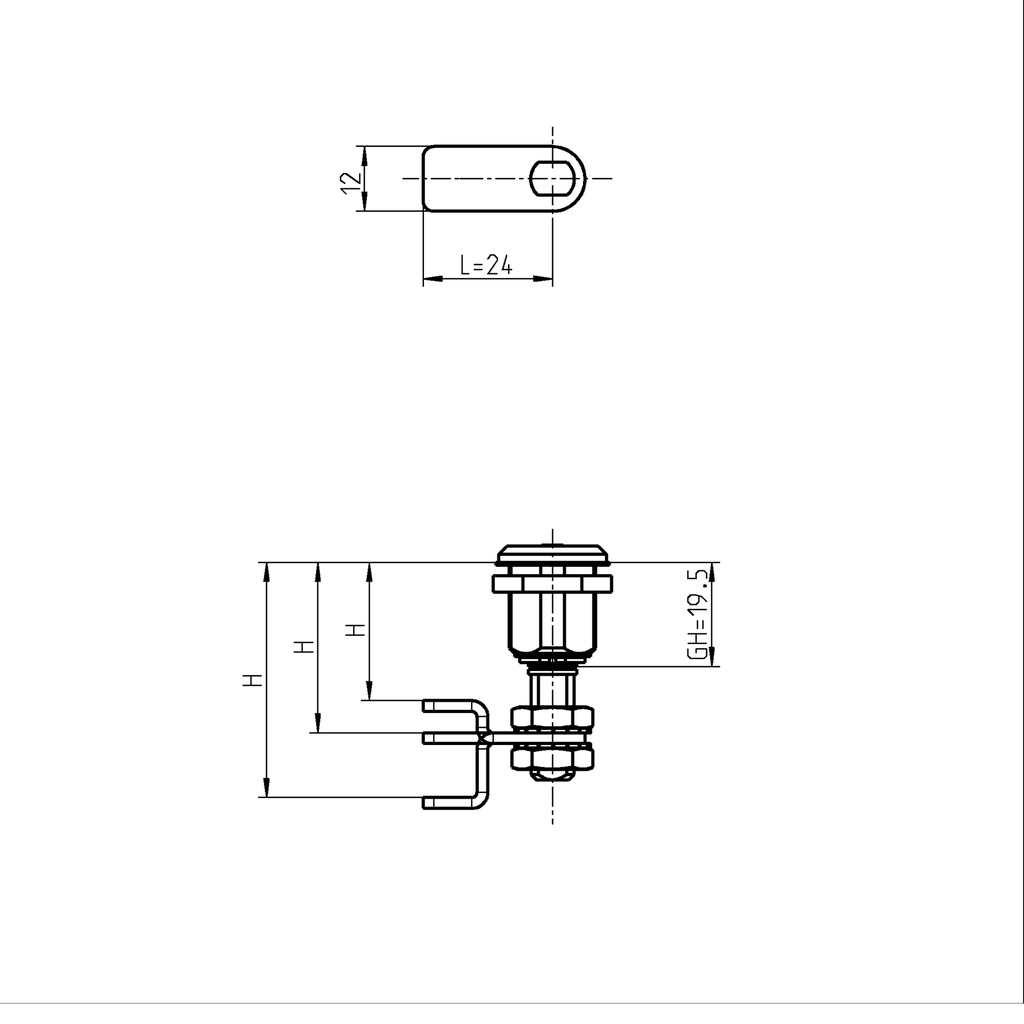

Dimension H = 19.5 - 26.5 mm or 31.5 - 38.5 mm
Internal Reference:
1022-50
Barcode:
1022-000050-0000000
Product Type:
Cam
Material:
Steel
Program:
1022
Surface:
zinc-plated
Catalog sheet:
1A-240
Number of Possible Locking Points:
1 point
Mounting Positions :
Inside the sealing
Offset:
positive and negative possible
offset of cam:
6 mm
Dimension L:
24 mm
Dimension t:
2 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
