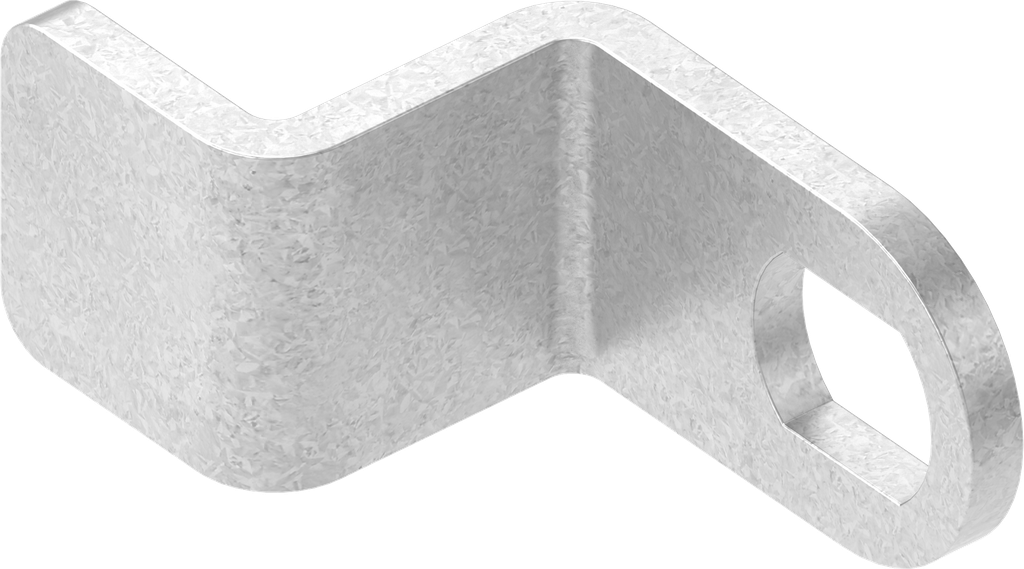

Cam, Steel zinc-plated; 1022-51
Offset h = 12 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
The cranked cam is reversible.
Akeneo Note:

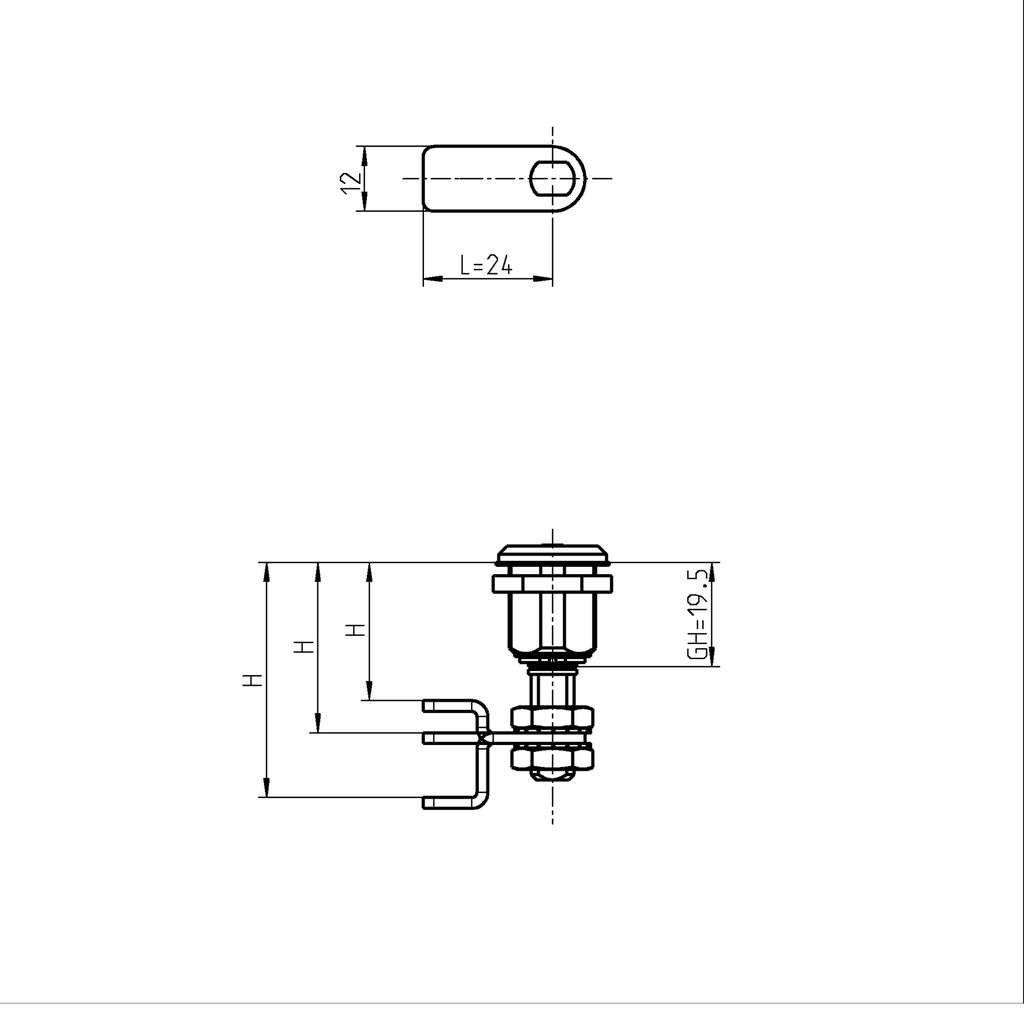

Dimension H = 13.5 - 20.5 mm or 37.5 - 44.5 mm
Internal Reference:
1022-51
Barcode:
1022-000051-0000000
Product Type:
Cam
Material:
Steel
Program:
1022
Surface:
zinc-plated
Catalog sheet:
1A-240
Number of Possible Locking Points:
1 point
Mounting Positions :
Inside the sealing
Offset:
positive and negative possible
offset of cam:
12 mm
Dimension L:
24 mm
Dimension t:
2 mm
