Insert square 6, Zinc die chrome-plated
Housing, Zinc die chrome-plated

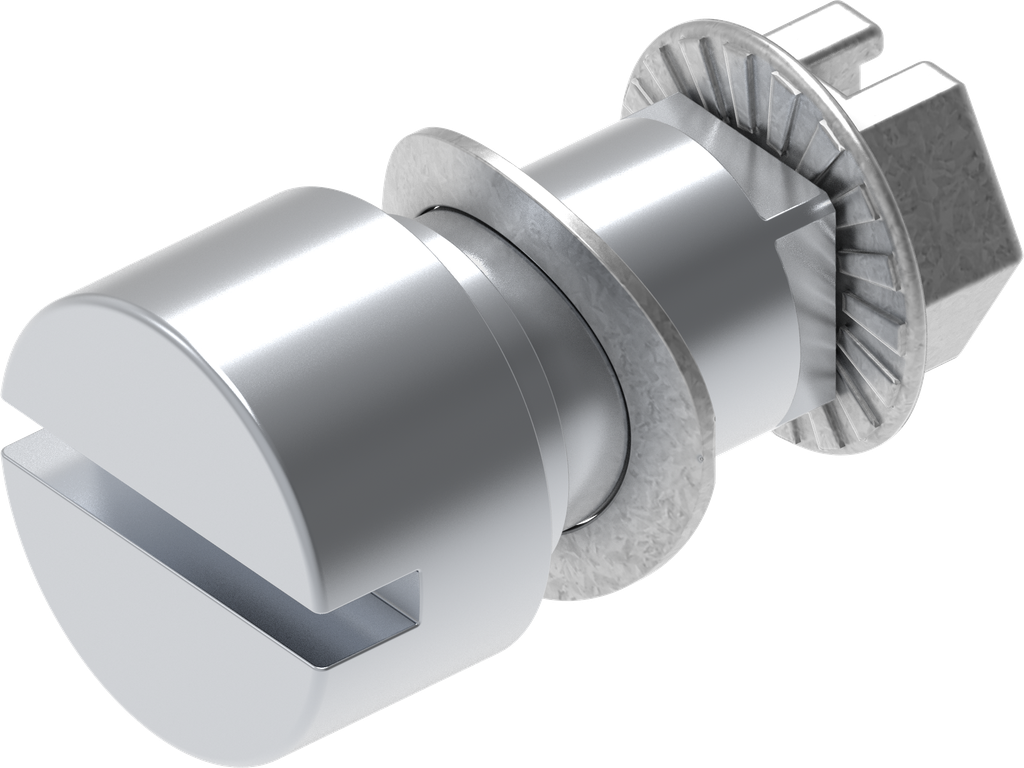

Insert slot 1.5 x 3, Zinc die chrome-plated; 1022-U3
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1022-U3
Barcode:
1022-U00003-0000000
Product Type:
Insert
Program:
1022
Catalog sheet:
1A-120
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Insert for:
Insert for housing, classic
Type of actuation:
Slot 1.5 x 3
For GH measure:
13.50 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
