Insert square 6, Stainless steel AISI 303
Insert slot 1.5 x 3, Stainless steel AISI 303

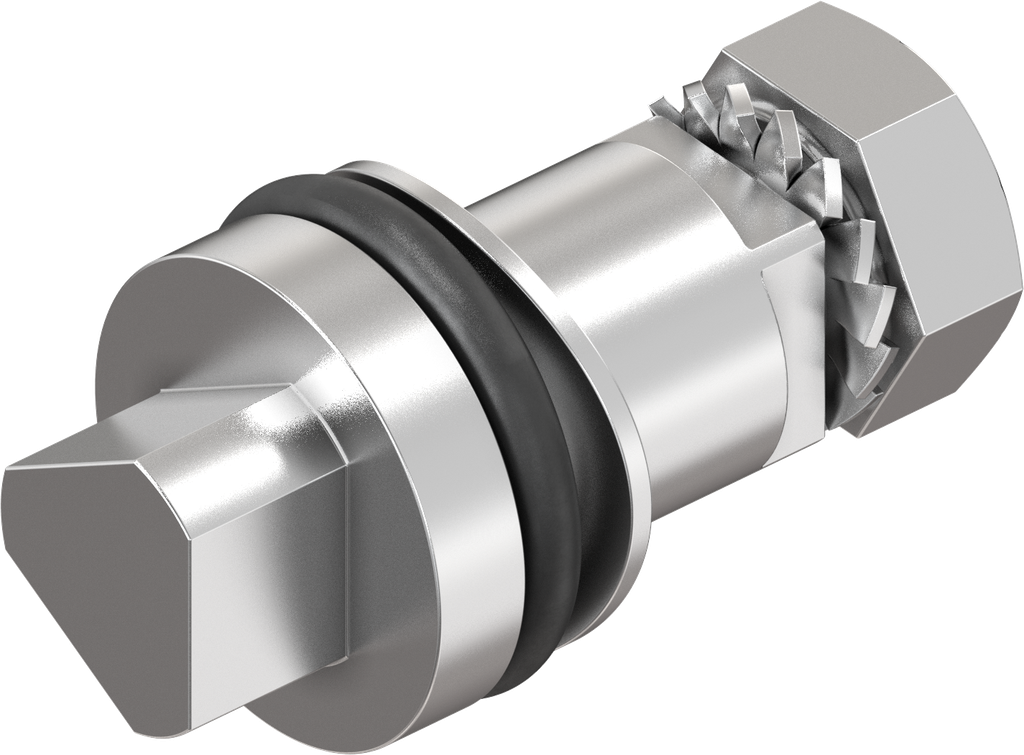

Insert triangular 6.5, Stainless steel AISI 303; 1022-U62
with O-ring
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1022-U62
Standards:
Protection class IP 65
Barcode:
1022-U00062-0000000
Product Type:
Insert
Program:
1022
Catalog sheet:
1A-120
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point
Insert for:
Insert for housing, classic
Type of actuation:
Triangular 6.5
For GH measure:
13.50 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
View All Products

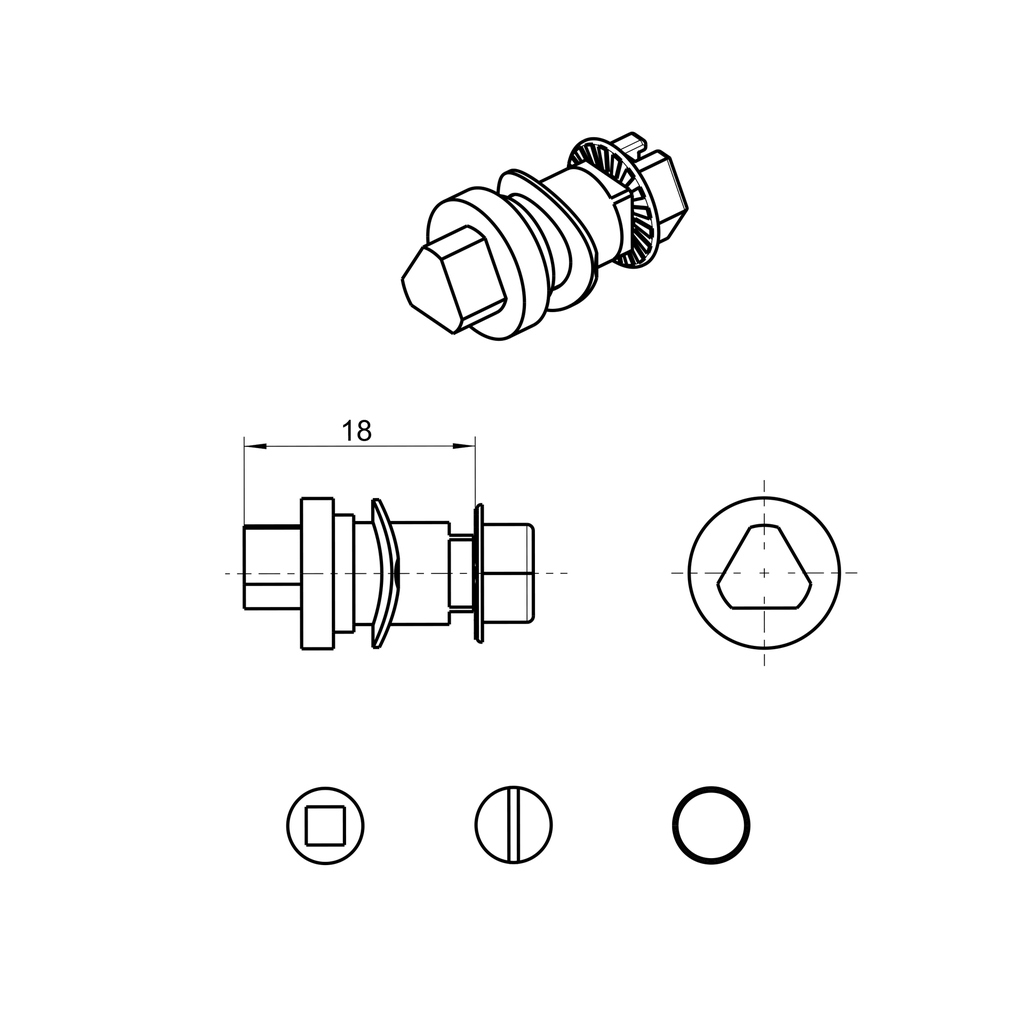

Here you can find the product data sheets and CAD files of this product
