Insert part slot 1.5 x 3, Polyamide GF black

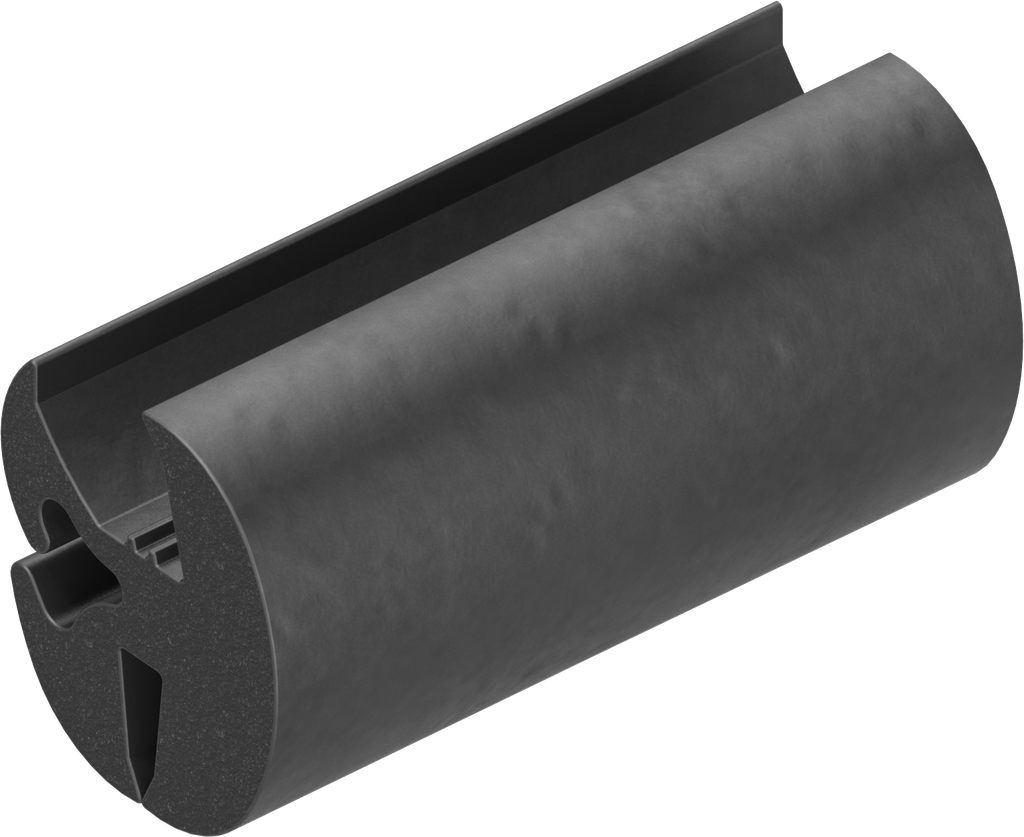

Clamping profile, EPDM 75 ± 5 Shore A black
Clamping profile, EPDM 75 ± 5 Shore A black; 1030-01
100% original guarantee
Return within 30days
Free delivery on all orders
Akeneo Note:

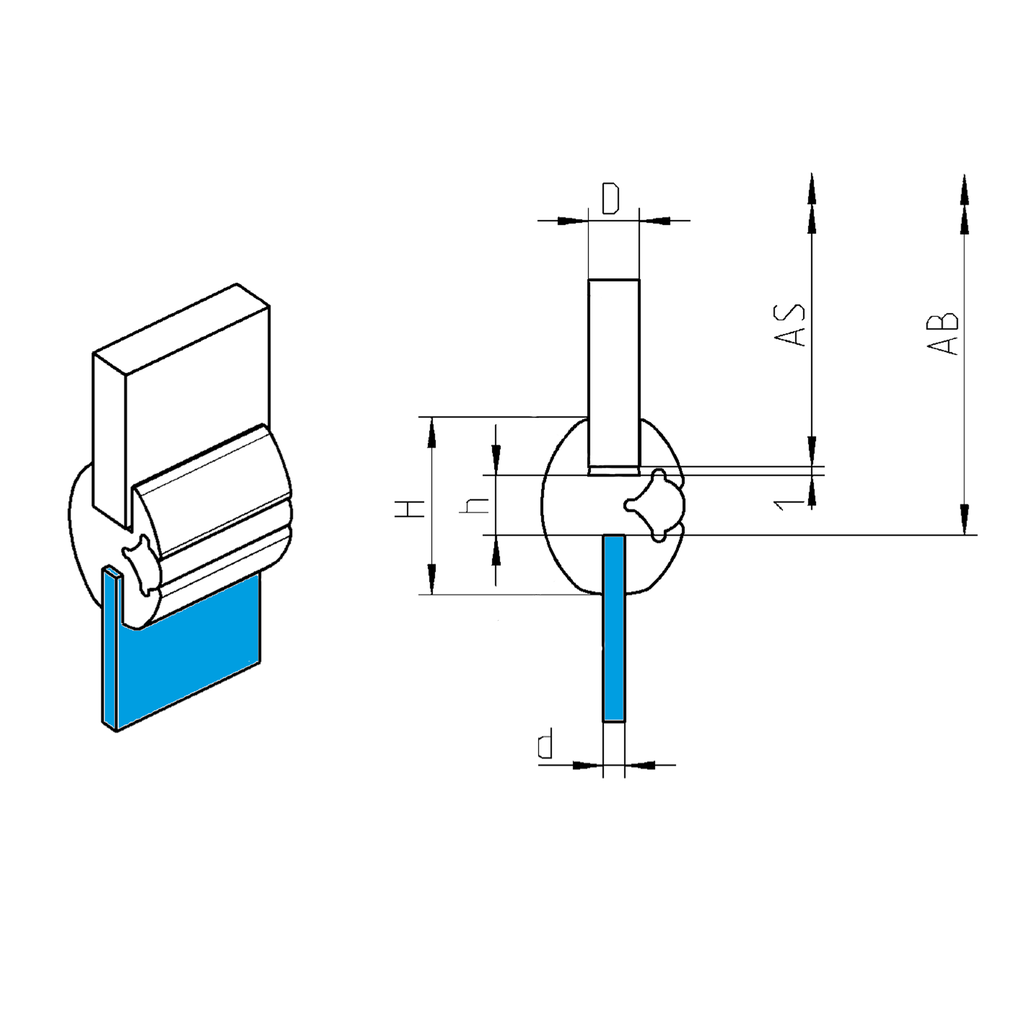

Bending radius > 30 mm
AB = AS + 10 mm
Internal Reference:
1030-01
Barcode:
1030-000001-0000000
Product Type:
Seal
Material:
EPDM 75 ± 5 Shore A
Program:
1030
Surface:
black
Dimension d:
2 mm
Dimension D:
4 mm
Seal Type:
Clamping profile with filler
Dimension h:
4 mm
Dimension H:
15 mm
Clamping edge is or is up to:
2
Clamping profile dimension d for sheet metal:
2 mm
Clamping profile dimension D for window:
4 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
