Profile hinge, screw-on, Steel zinc-plated
Profile hinge, screw-on, Steel zinc-plated
Profile hinge, screw-on, Steel zinc-plated
Profile hinge, screw-on, Steel zinc-plated

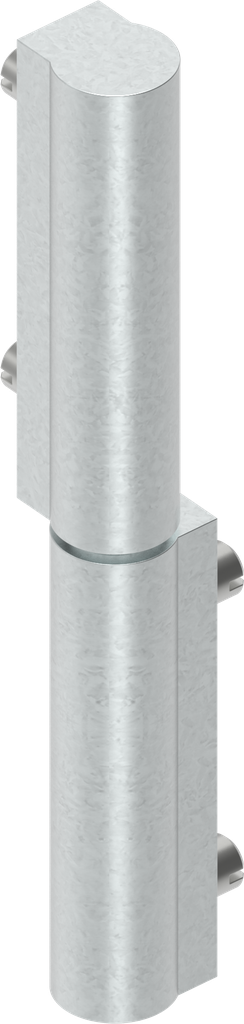

Profile hinge, weld-on, Steel zinc-plated; 1036-U3

https://20260223-uat.emka.opaas.sh/shop/1036-u3-profile-hinge-weld-on-steel-zinc-plated-61268 https://20260223-uat.emka.opaas.sh/web/image/product.template/61268/image_1920?unique=6491fb0

4.02 € 4.0200000000000005 EUR 4.02 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1036-U3
    Barcode: 1036-U00003-0000000
    Product Type: Hinge
    Program: 1036
    Catalog sheet: 4A-290
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: B
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products

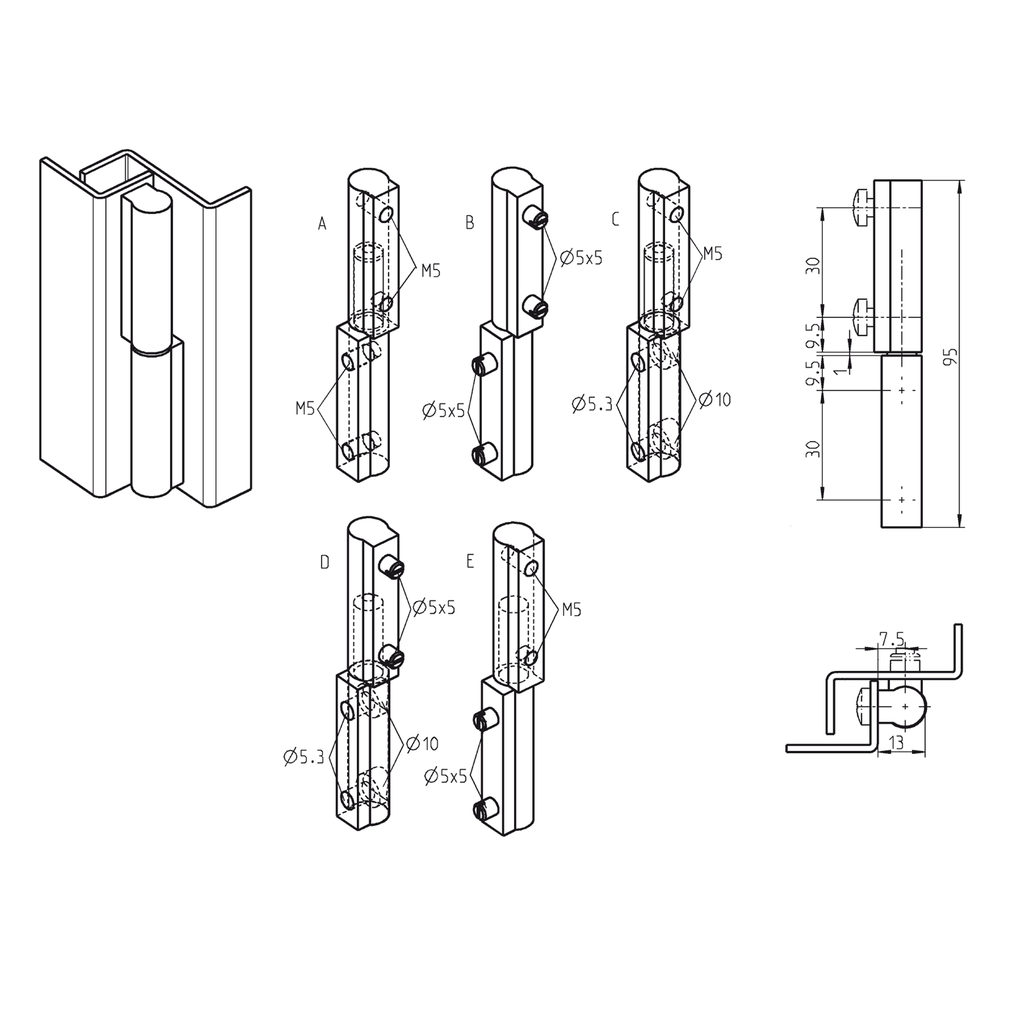

    Here you can find the product data sheets and CAD files of this product
