Profile hinge, screw-on, Steel zinc-plated
Profile hinge, screw-on and weld-on, Steel zinc-plated

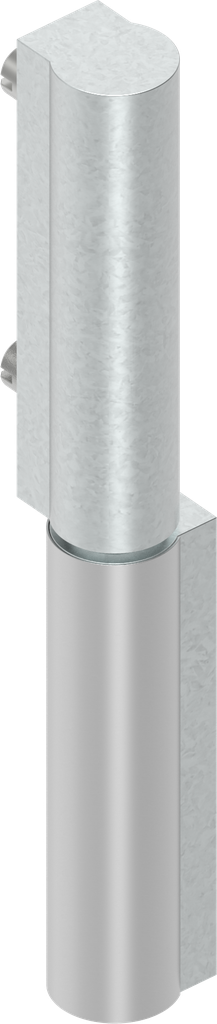

Profile hinge, screw-on and weld-on, Steel zinc-plated; 1036-U5
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1036-U5
Barcode:
1036-U00005-0000000
Product Type:
Hinge
Program:
1036
Catalog sheet:
4A-290
Material of the module :
Steel
Surface of the module:
zinc-plated
Door return variable:
Yes

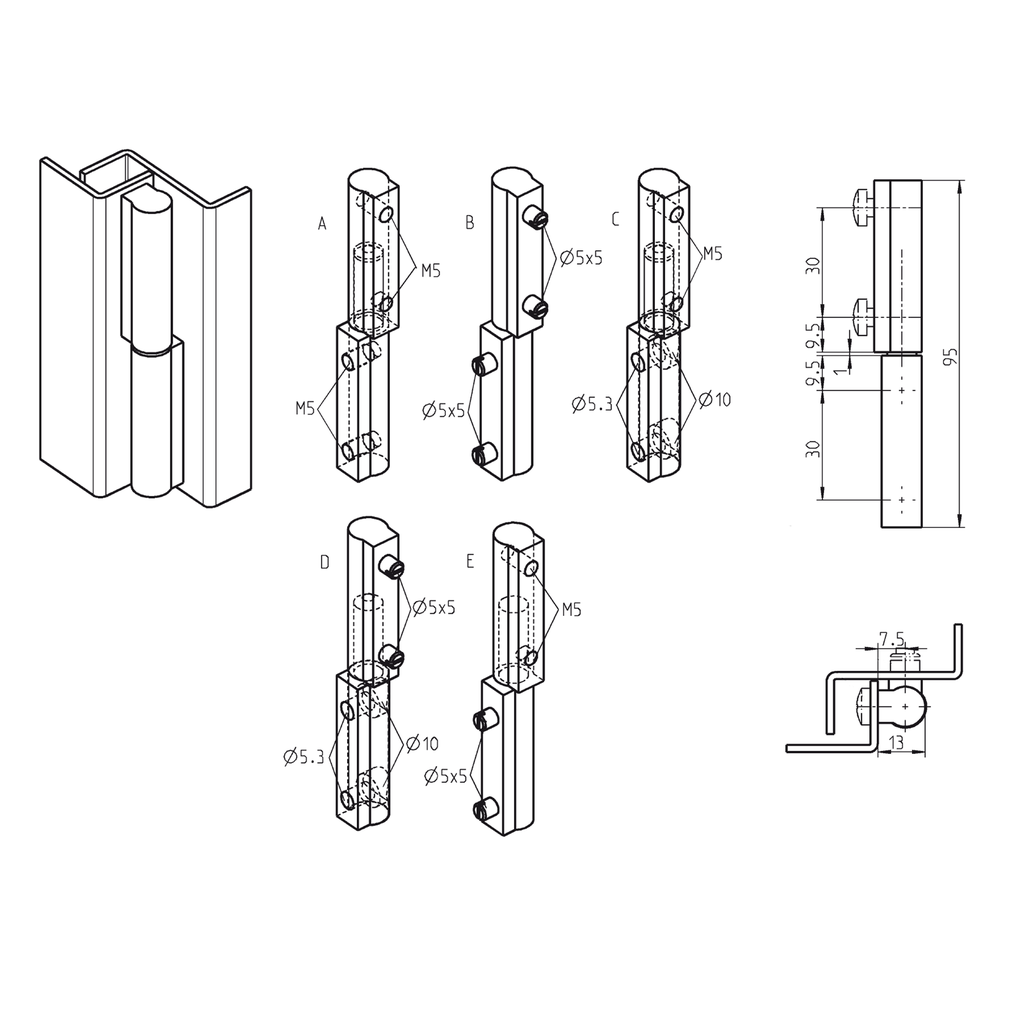

Execution:
D
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
