Bow-type handle, Zinc die black powder-coated
90° Concealed hinge, Steel zinc-plated and raw

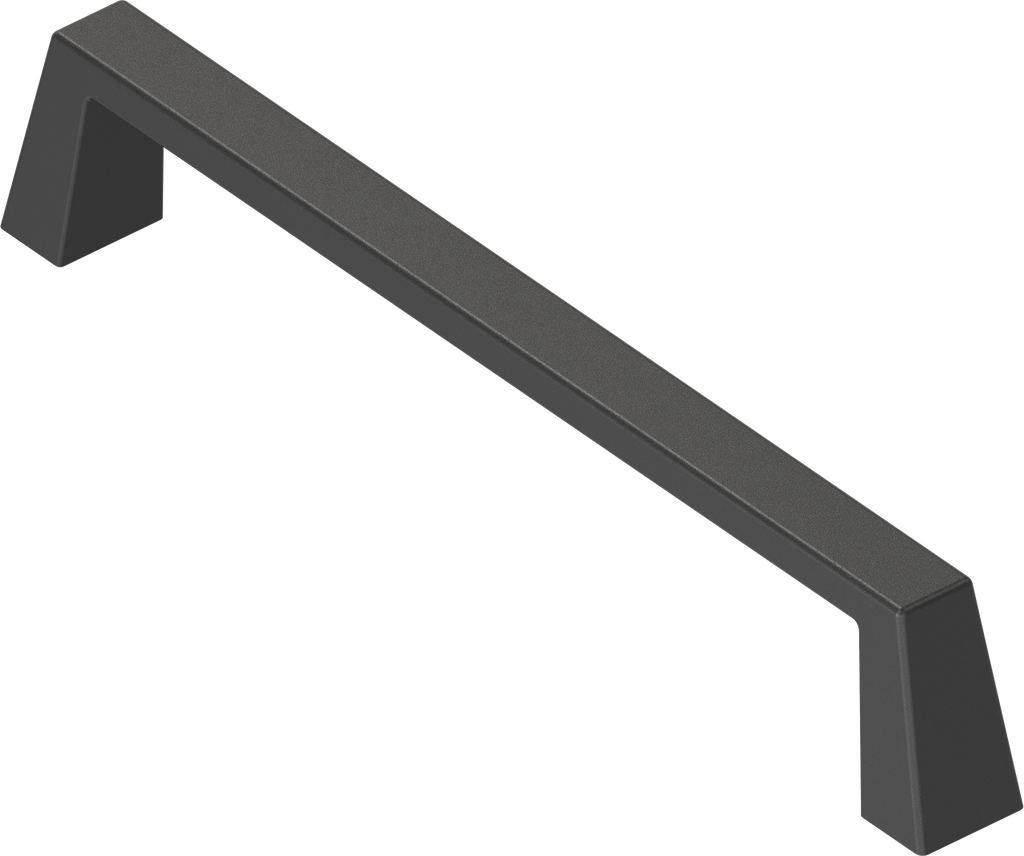

Bow-type handle, Zinc die black powder-coated; 1045-08

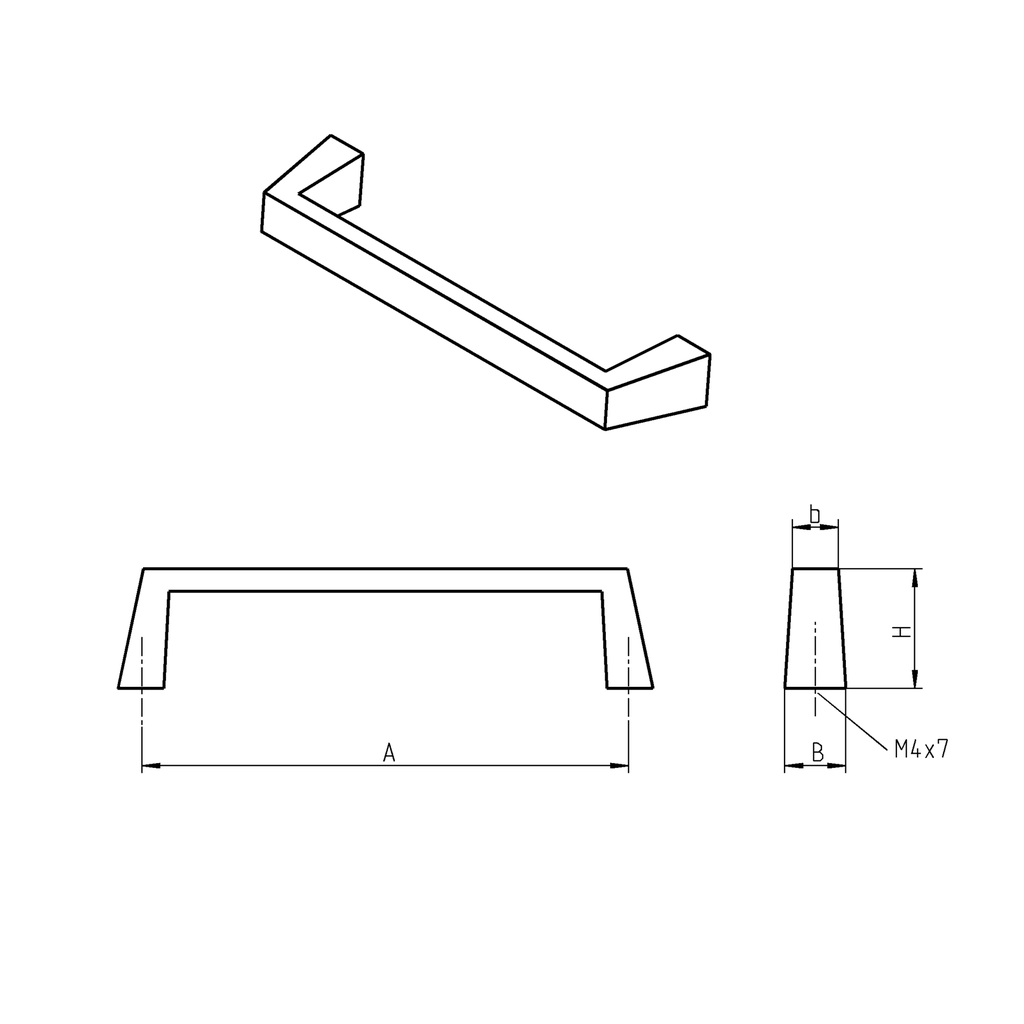

A = 115 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1045-08
Barcode:
1045-000008-0000000
Product Type:
Handle
Material:
Zinc die
Program:
1045
Surface:
black powder-coated
Dimension A:
115 mm
Dimension b:
8.50 mm
Dimension B:
12 mm
Fixing type of handle:
screw-on from inside
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
23 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
