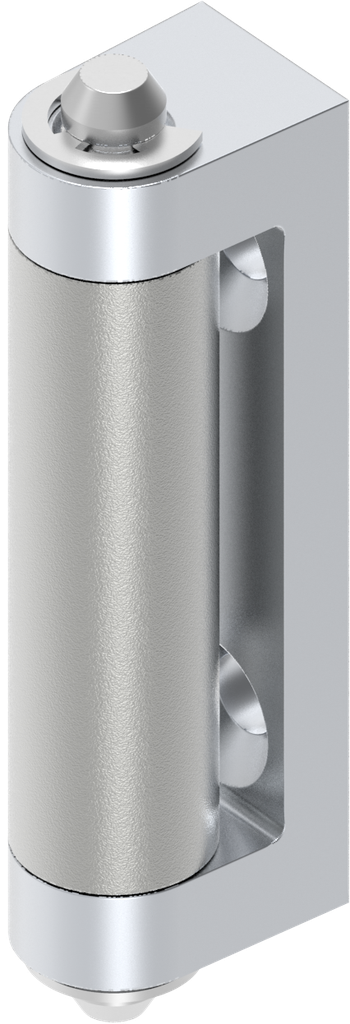

Hinge, Zinc die chrome-plated; 1054-U2

https://20260223-uat.emka.opaas.sh/shop/1054-u2-hinge-zinc-die-chrome-plated-212551 https://20260223-uat.emka.opaas.sh/web/image/product.template/212551/image_1920?unique=2fb2ee5

Middle part m.s. raw for welding on

4.45 € 4.45 EUR 4.45 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1054-U2
    Barcode: 1054-U00002-0000000
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4A-310
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Door return variable: Yes
    Execution: A
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products

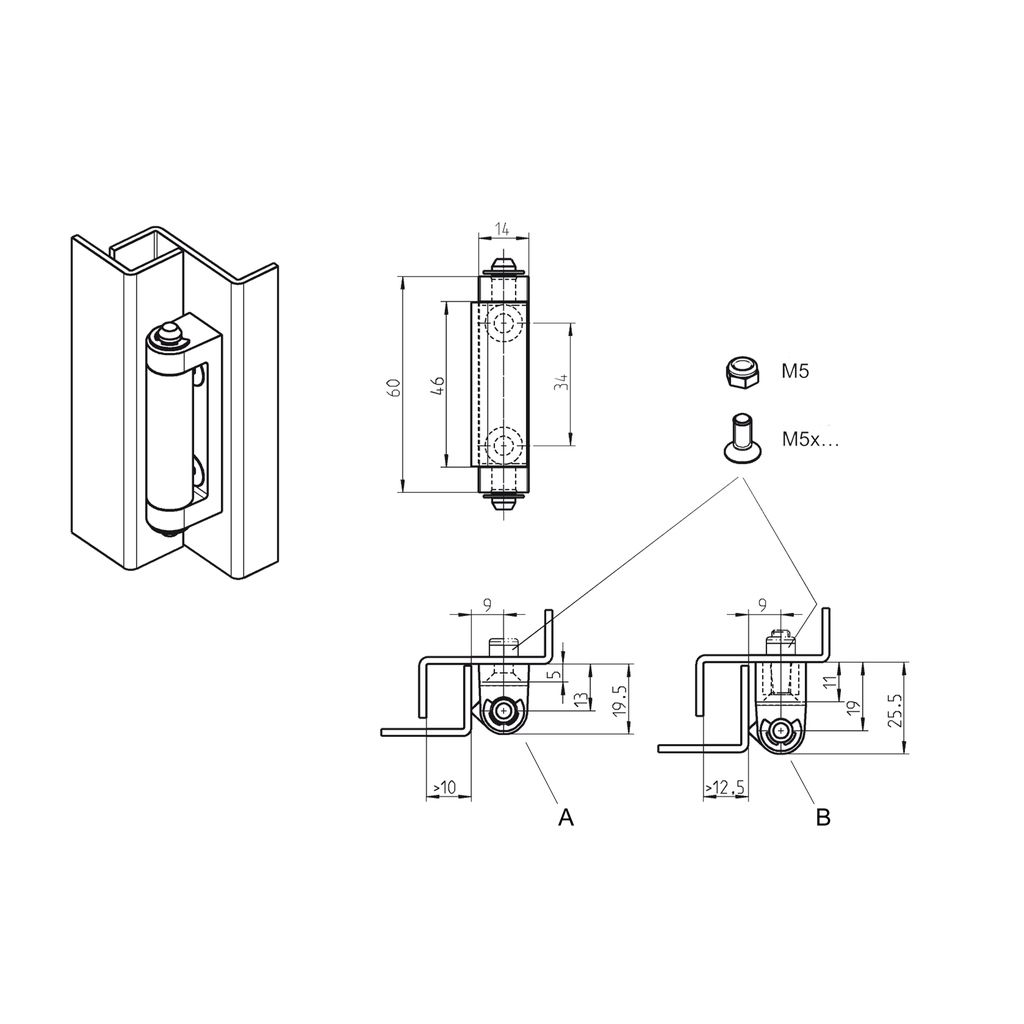

    Here you can find the product data sheets and CAD files of this product
