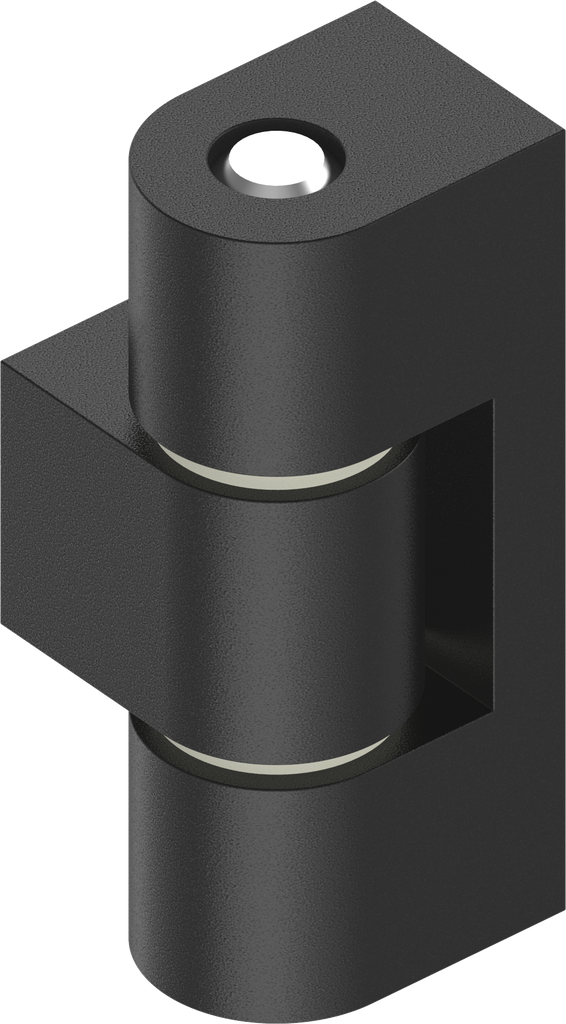

180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated
180° 3D Hinge, Zinc die black powder-coated
180° 3D Hinge, Zinc die black powder-coated

180° Hinge, Zinc die black powder-coated; 1054-U30

https://20260223-uat.emka.opaas.sh/shop/1054-u30-180deg-hinge-zinc-die-black-powder-coated-61558 https://20260223-uat.emka.opaas.sh/web/image/product.template/61558/image_1920?unique=ff6e84a

5.31 € 5.3100000000000005 EUR 5.31 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1054-U30
    Barcode: 1054-U00030-0000000
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4A-280
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products

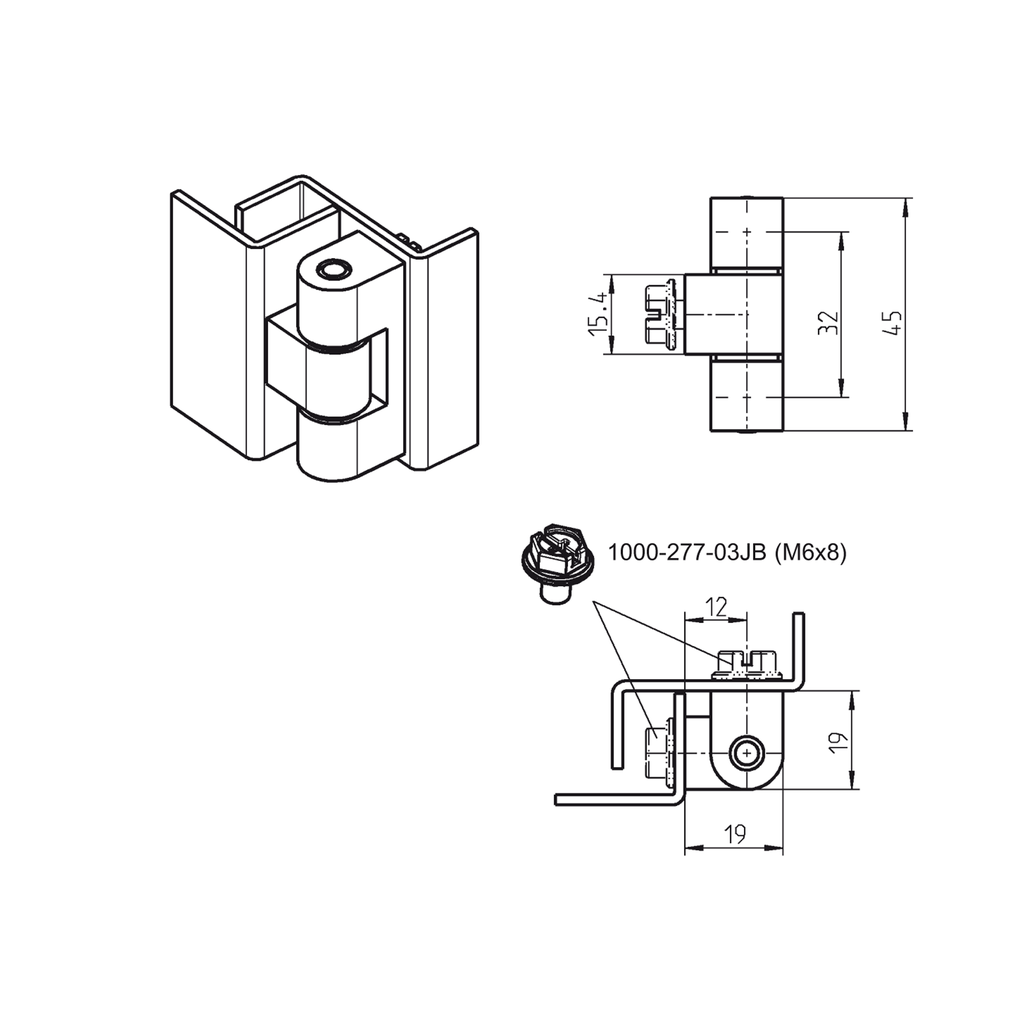

    Here you can find the product data sheets and CAD files of this product
