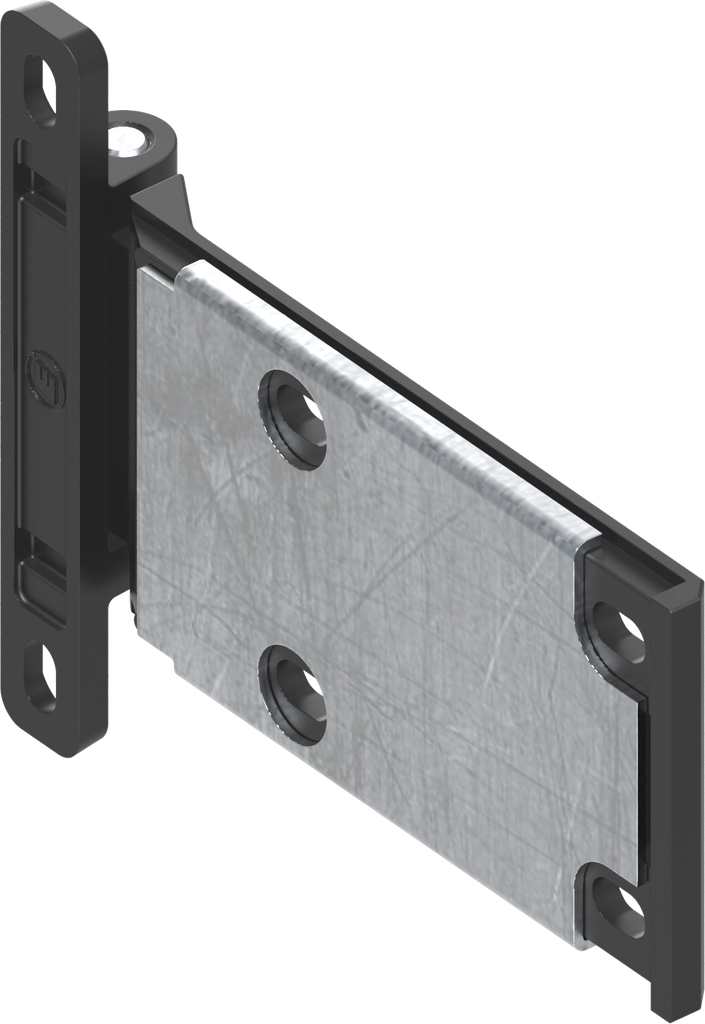

180° 3D Hinge, Zinc die black powder-coated

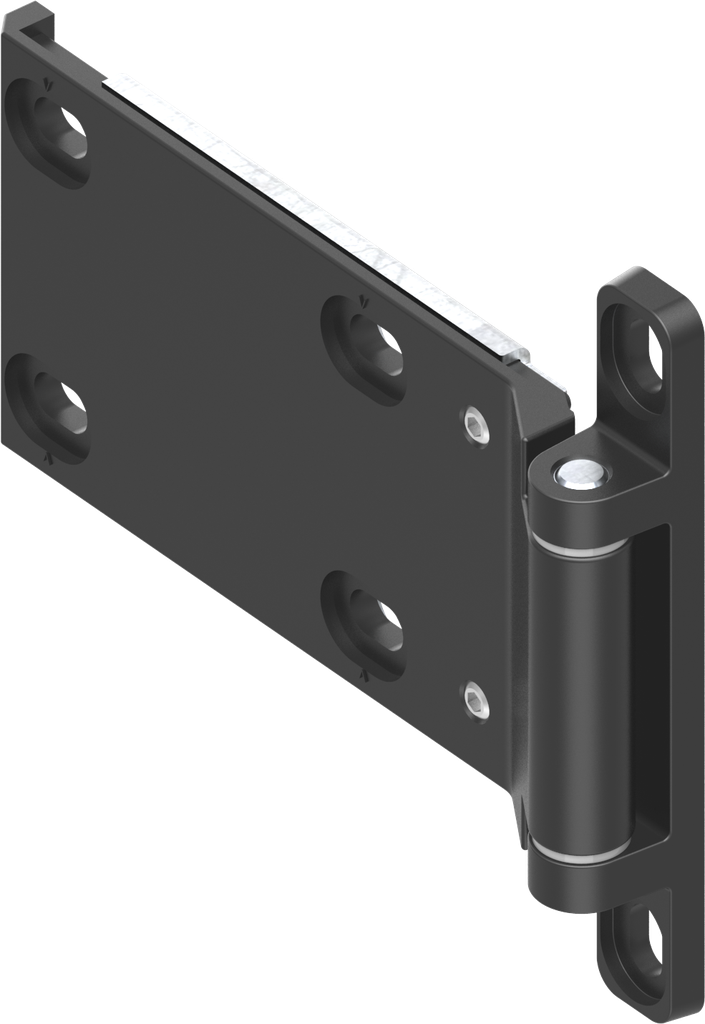

180° 2D Hinge, Zinc die black powder-coated
180° 3D Hinge, Zinc die black powder-coated; 1054-U43-01
100% original guarantee
Return within 30days
Free delivery on all orders
Akeneo Note:

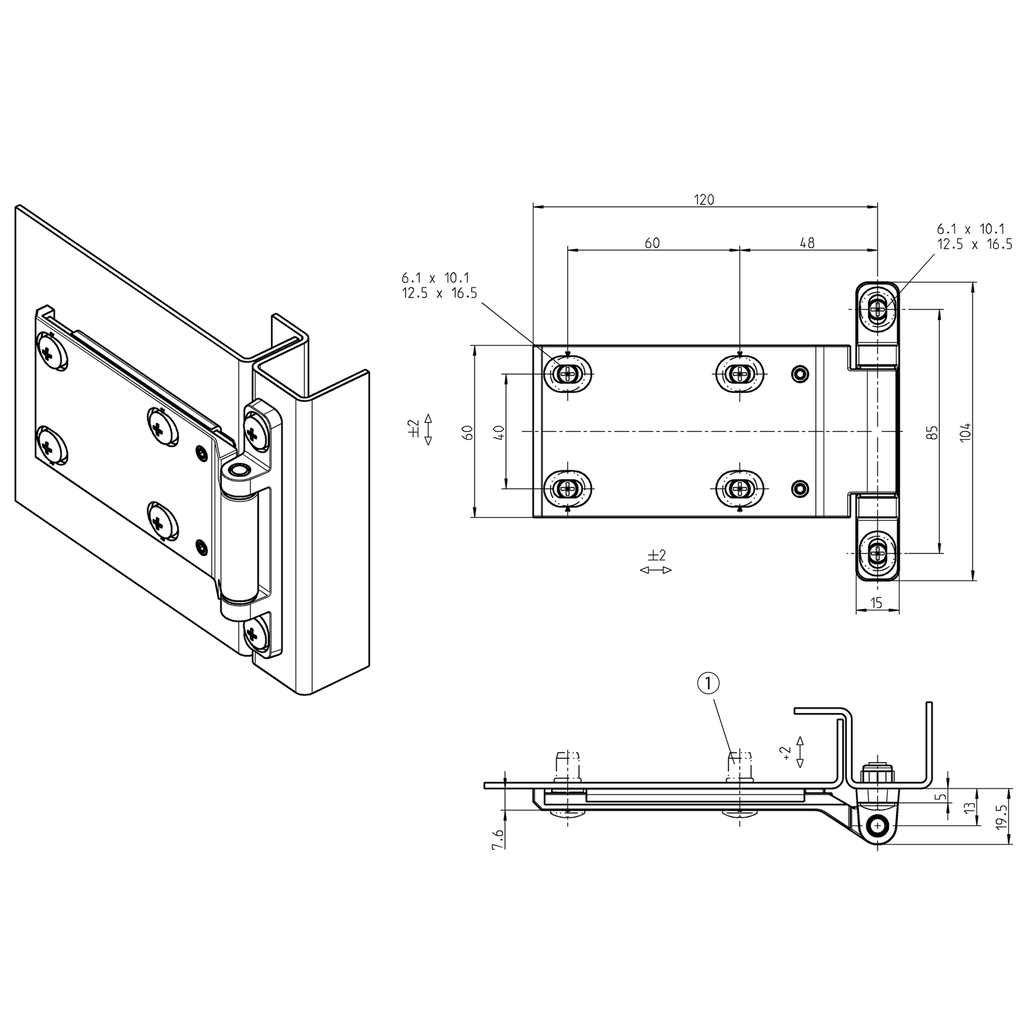

① Centre part prepared for flat head rivet nut M6
Internal Reference:
1054-U43-01
Barcode:
1054-U00043-0000001
Product Type:
Hinge
Program:
1054
Catalog sheet:
4B-253
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Adjustable :
3D
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
