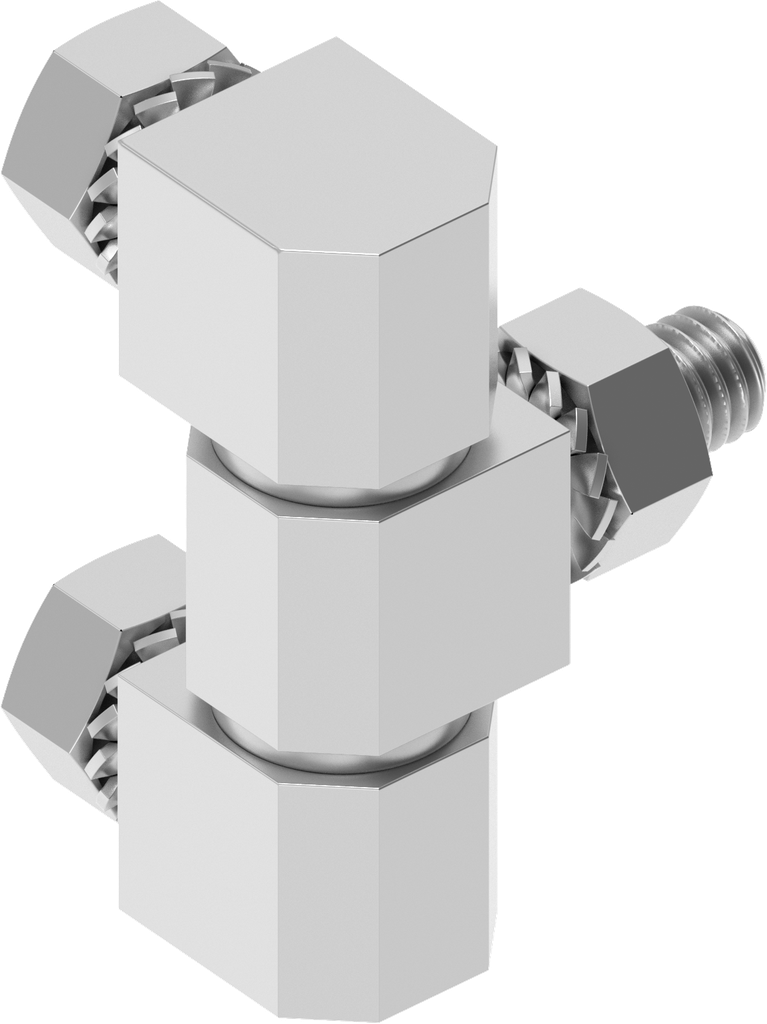

180° Hinge, Stainless steel AISI 316; 1055-U8

https://20260223-uat.emka.opaas.sh/shop/1055-u8-180deg-hinge-stainless-steel-aisi-316-77419 https://20260223-uat.emka.opaas.sh/web/image/product.template/77419/image_1920?unique=6d24654

26.80 € 26.8 EUR 26.80 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1055-U8
    Barcode: 1055-U00008-0000000
    Product Type: Hinge
    Material: Stainless steel AISI 316
    Program: 1055
    Catalog sheet: 4A-250
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

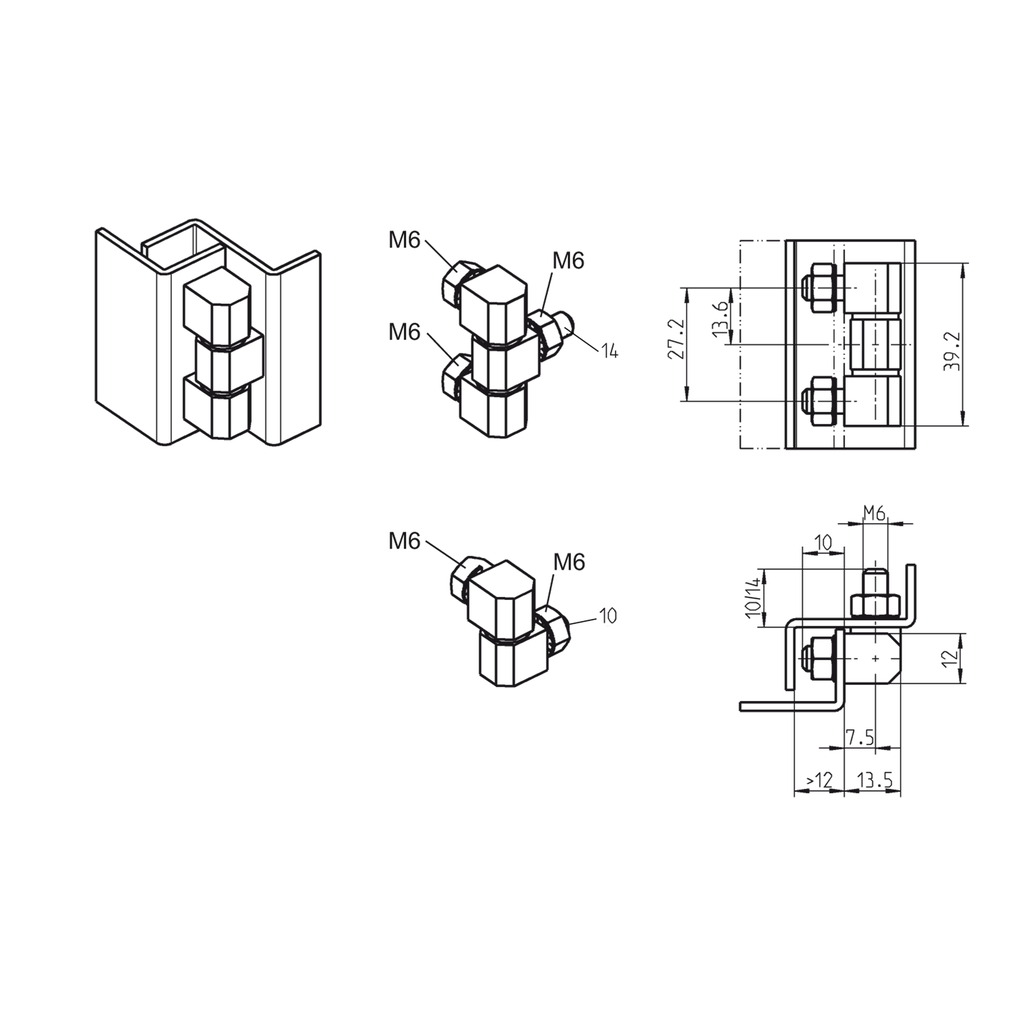

    Here you can find the product data sheets and CAD files of this product
