180° Clip-in hinge, Polyamide GF black
180° Clip-in hinge, Polyamide GF black
180° Clip-in hinge, Polyamide GF black
180° Clip-in hinge, Polyamide GF black

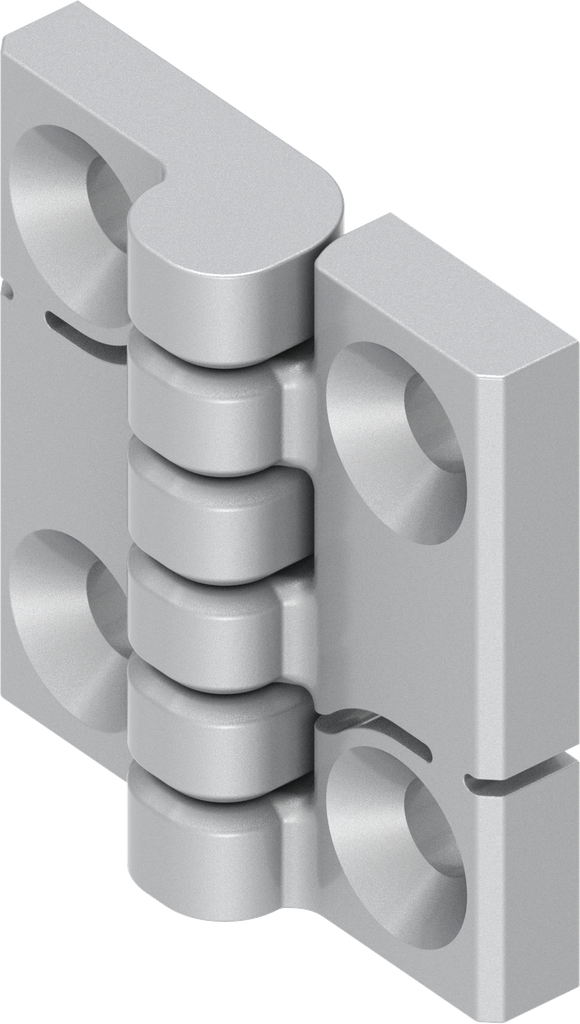

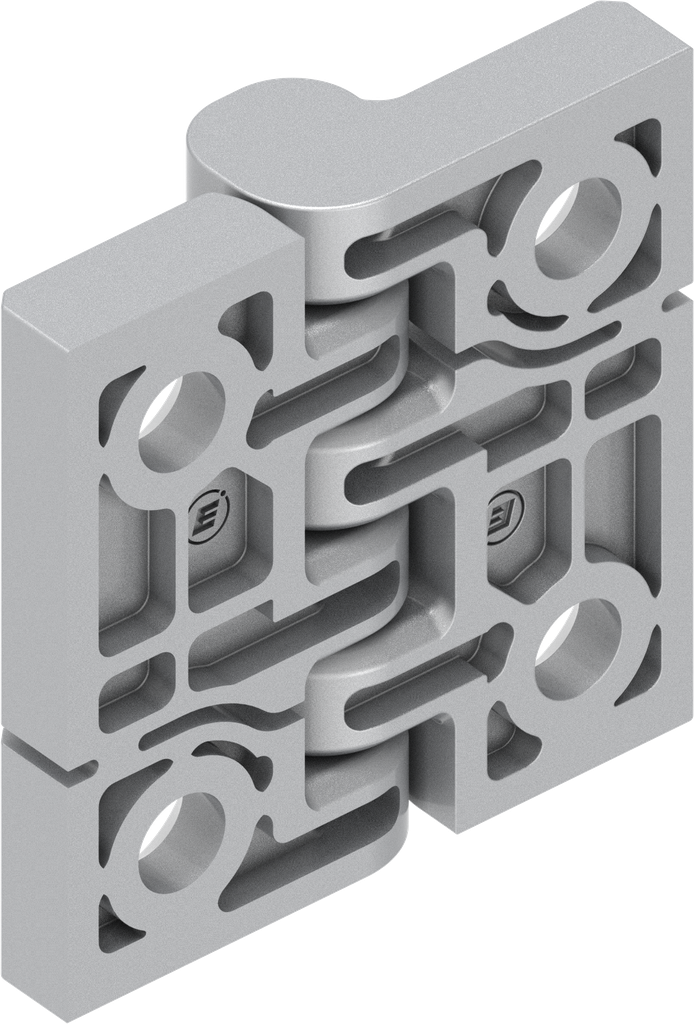

180° Clip-in hinge, Polyamide GF silver; 1056-U66-HW

https://20260223-uat.emka.opaas.sh/shop/1056-u66-hw-180deg-clip-in-hinge-polyamide-gf-silver-61765 https://20260223-uat.emka.opaas.sh/web/image/product.template/61765/image_1920?unique=e4dcc76

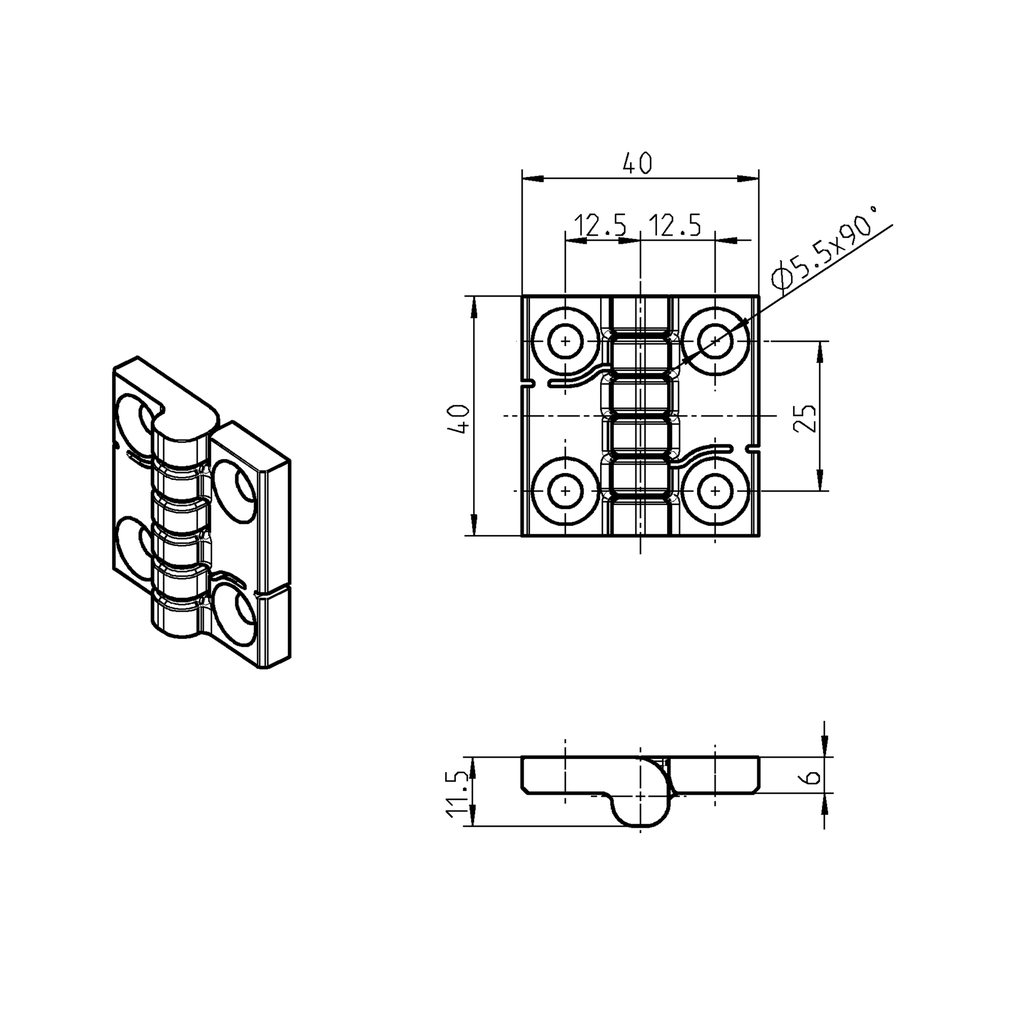

Hinge unassembled; Dimension 40 x 40 mm

1.24 € 1.24 EUR 1.24 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1056-U66-HW
    Barcode: 1056-u00066-00000HW
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-207
    Material of the module : Polyamide GF
    Surface of the module: silver
    Door return variable: Yes
    Article with property rights: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
