Recessed grip for Ts = 1.2 - 1.6 mm, Polyamide GF black
Recessed grip foamed, Polyamide GF black

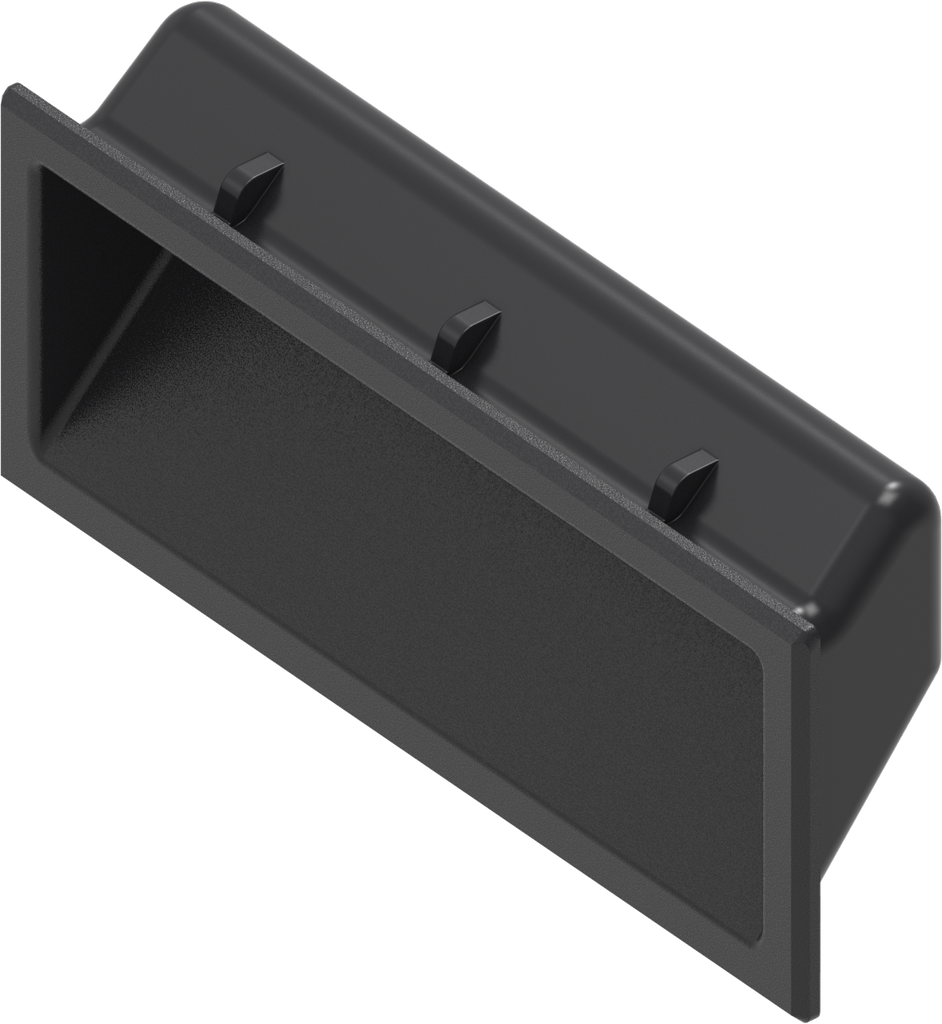

Recessed grip for Ts = 1.75 - 2.2 mm, Polyamide GF black; 1091-103-03
100% original guarantee
Return within 30days
Free delivery on all orders
Product Benefits:
- Cost savings due to quick mounting without tools
- Pull snaps automatically into place behind the door leaf
- Corrosion-resistant made of PA6 GF30
Product information:
Pulls for other door gauges on request
Assembly instruction:
The recessed handle automatically engages with a clip arm behind the door leaf.
Internal Reference:
1091-103-03
Barcode:
1091-000103-0000003
Product Type:
Handle
Material:
Polyamide GF
Program:
1091
Surface:
black
Fixing type of handle:
clip-on, assembly without tools
Handle Art(2):
Pull
Suitable for door thickness from:
1.75 mm
Suitable for door thicknesses up to:
2.20 mm
No Specifications
No Matching Products

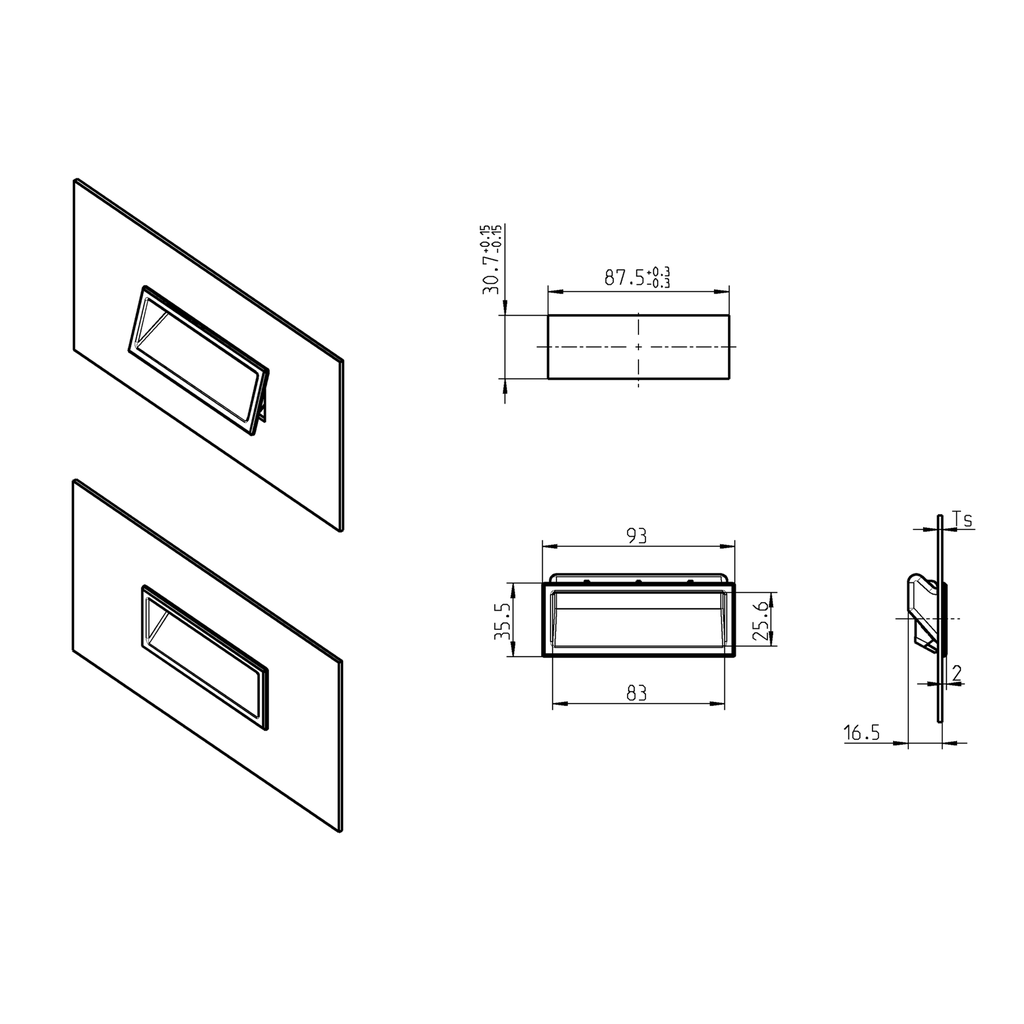

Here you can find the product data sheets and CAD files of this product
