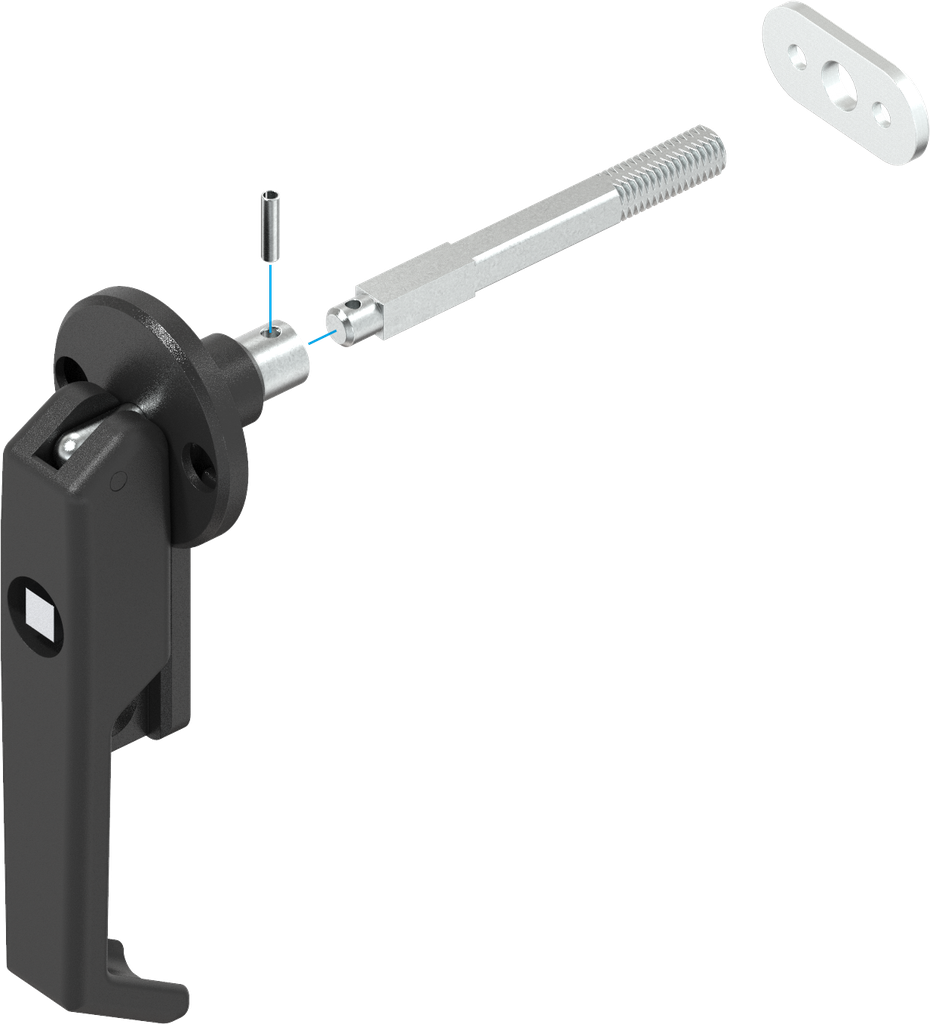

Outside handle and inside handle for zinc die shaft, Polyamide GF black

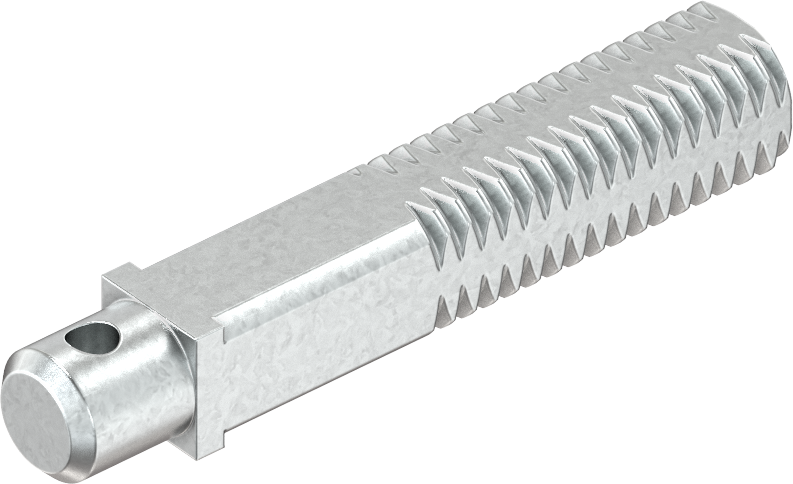

Shaft, Steel zinc-plated
Shaft, Steel zinc-plated; 1091-59-01

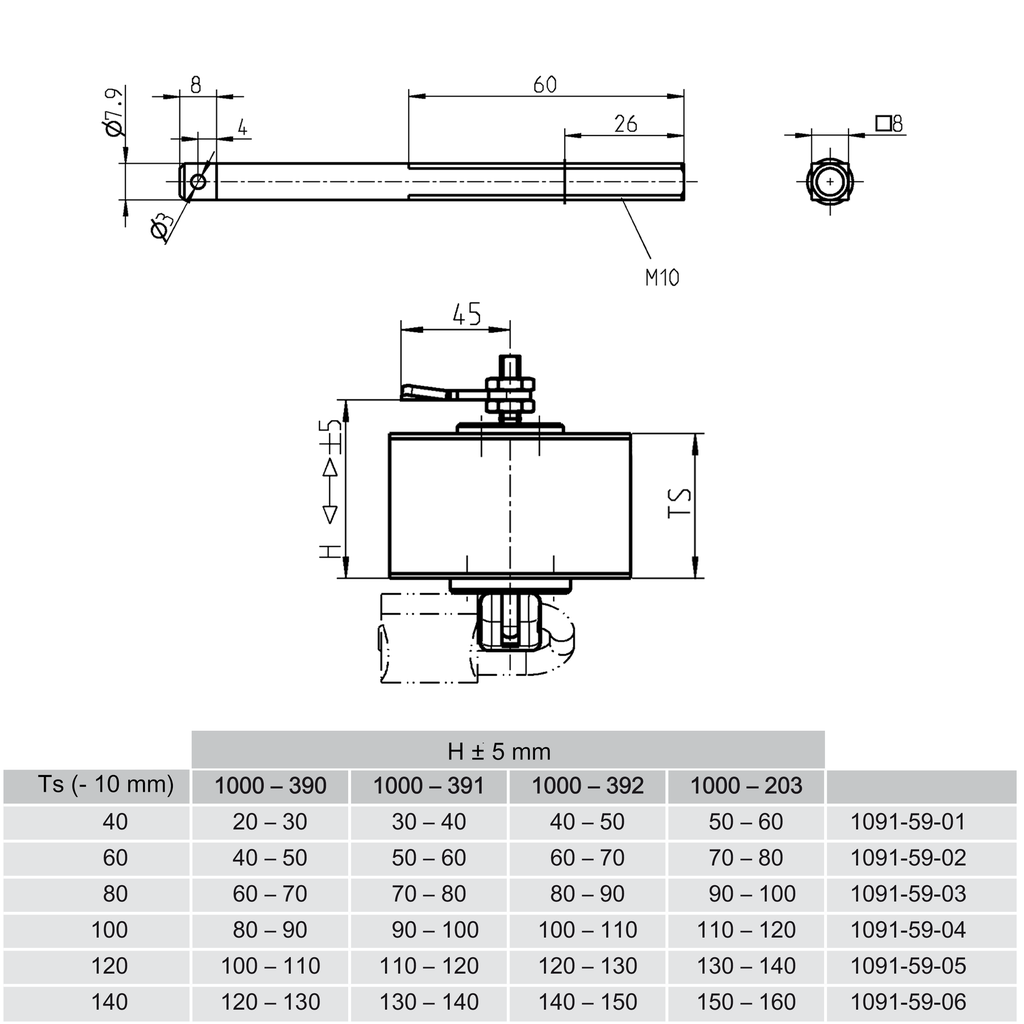

for Ts = 30 - 40 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1091-59-01
Barcode:
1091-000059-0000001
Product Type:
Shaft
Material:
Steel
Program:
1091
Surface:
zinc-plated
Axis:
Steel shaft
Suitable for door thickness from:
30 mm
Suitable for door thicknesses up to:
40 mm
Lock Type(1):
Cam
Closure Type:
HVACR compression latch
