Recessed grip for Ts = 1.2 - 1.6 mm, Polyamide black
Recessed grip for Ts = 0.8 - 1.2 mm, Polyamide black

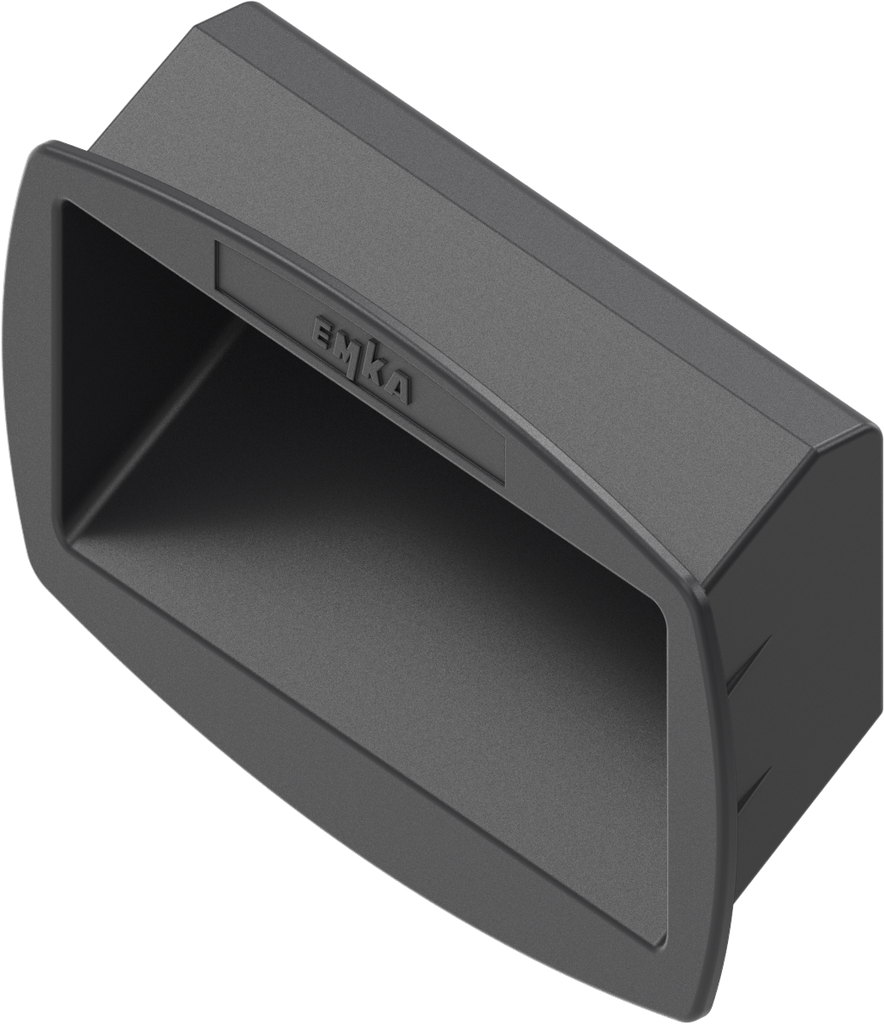

Recessed grip for Ts = 1.75 - 2.2 mm, Polyamide black; 1091-92
100% original guarantee
Return within 30days
Free delivery on all orders
Assembly instruction:
Pull is fitted with clip-in arms which snap automatically into place behind the door leaf.
Internal Reference:
1091-92
Barcode:
1091-000092-0000000
Product Type:
Handle
Material:
Polyamide
Program:
1091
Surface:
black
Fixing type of handle:
clip-on, assembly without tools
Handle Art(2):
Pull
Suitable for door thickness from:
1.75 mm
Suitable for door thicknesses up to:
2.20 mm
No Specifications
No Matching Products

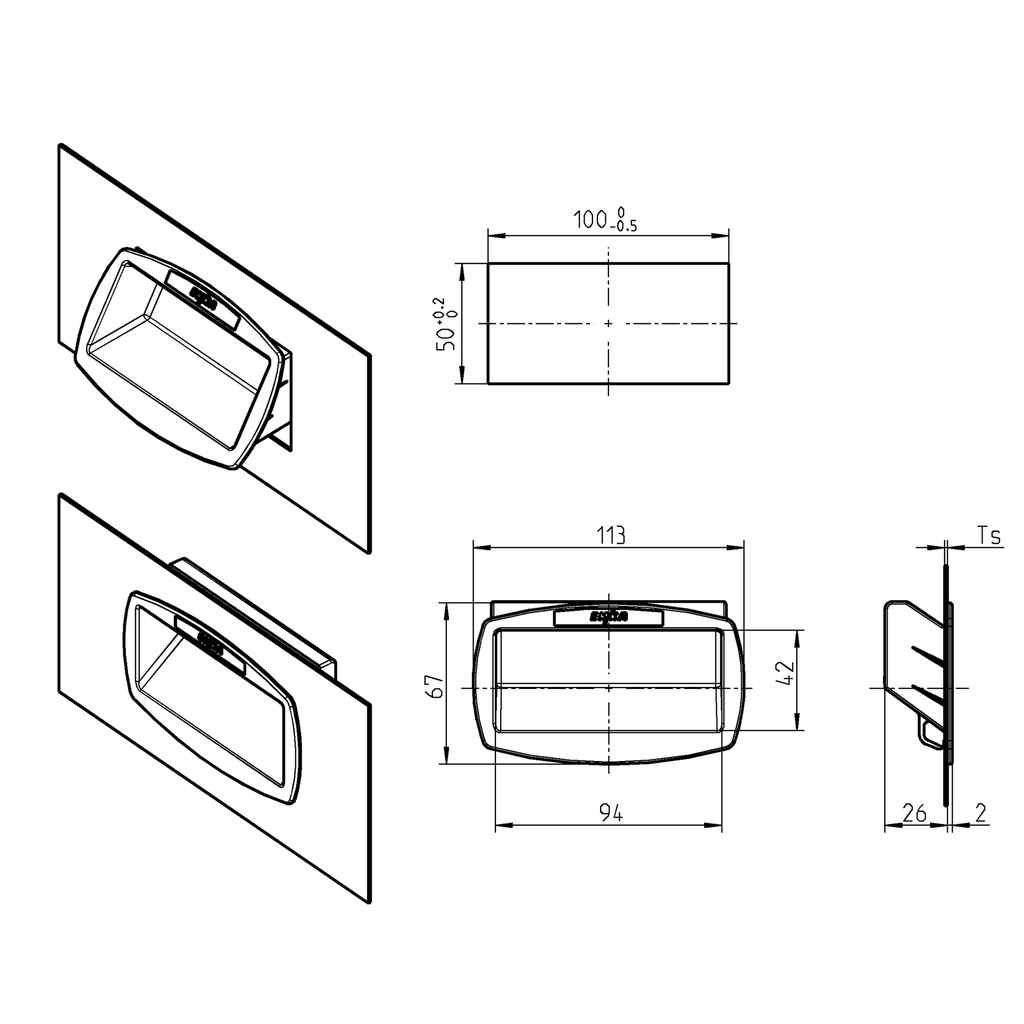

Here you can find the product data sheets and CAD files of this product
