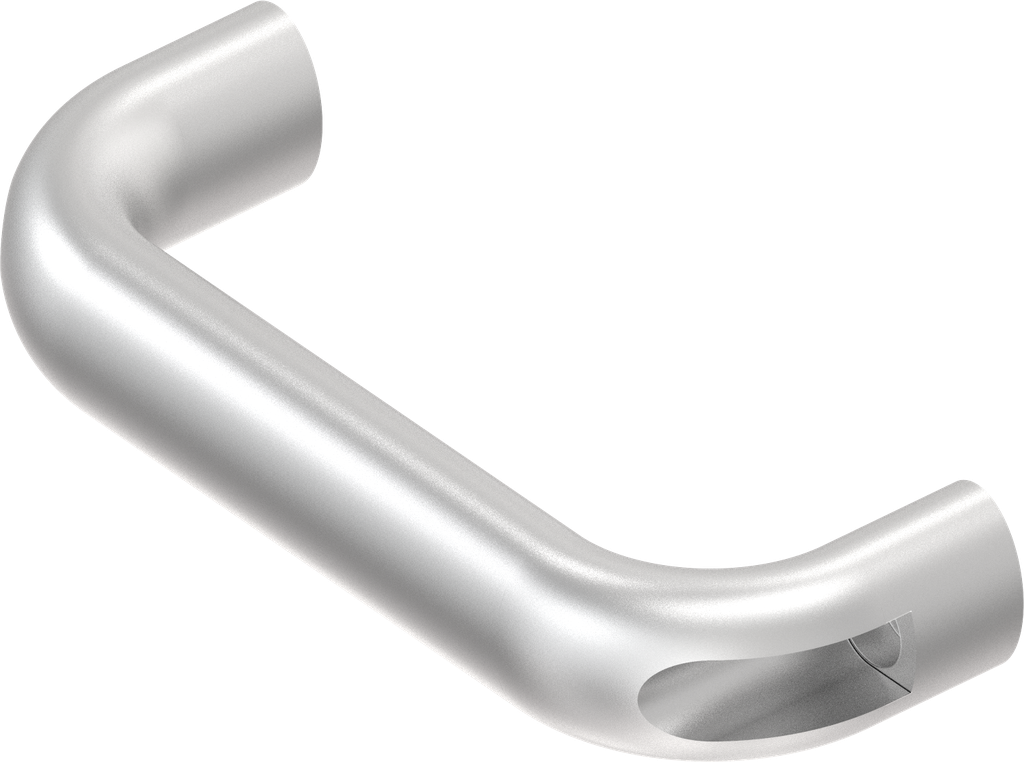

Bow-type handle, Aluminium blank
Bow-type handle, Aluminium blank

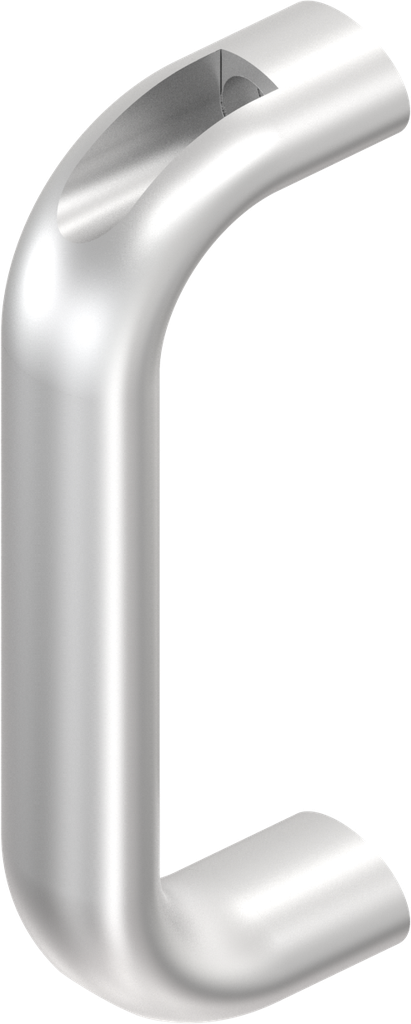

Bow-type handle, Aluminium anodized; 1095-28-132NA
A = 132 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:

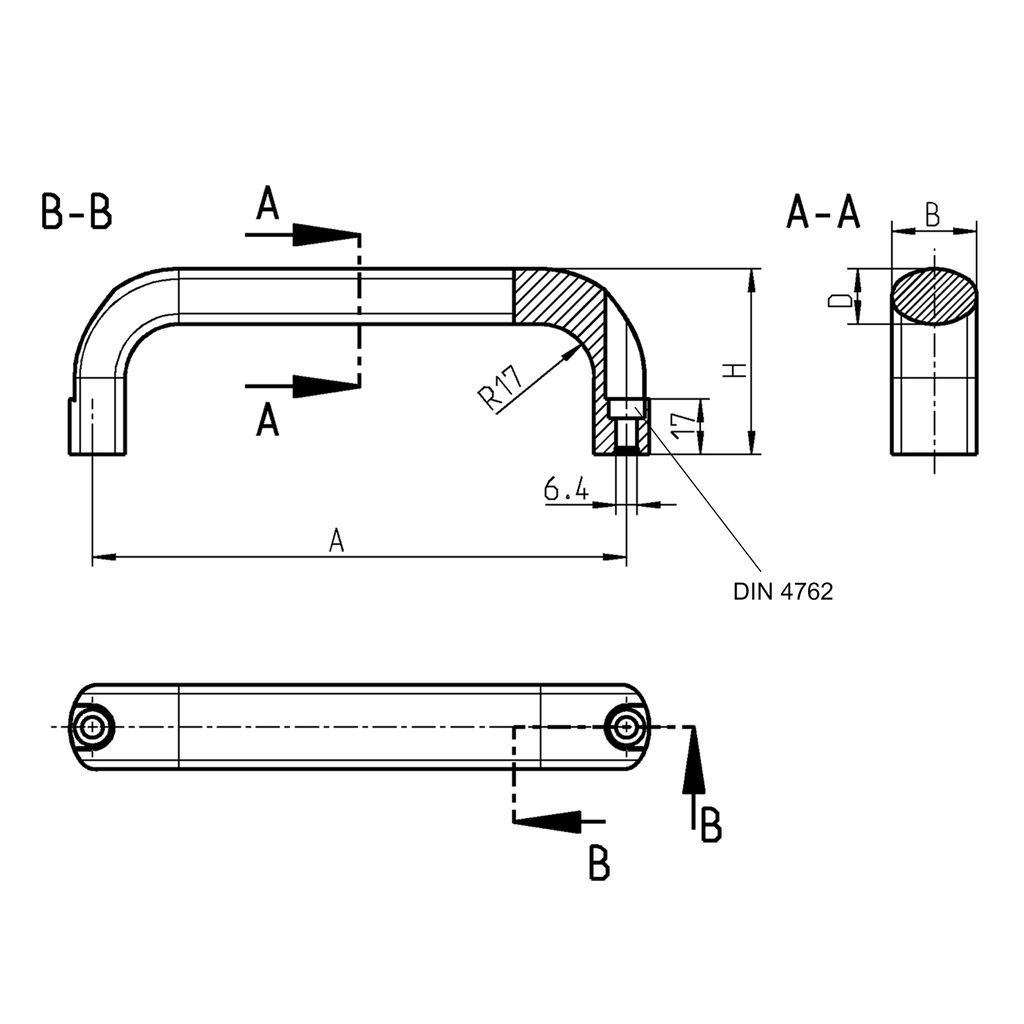

Bore hole for hexagon socket head cap screw DIN 4762
Internal Reference:
1095-28-132NA
Barcode:
1095-000028-00132na
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
anodized
Catalog sheet:
6A-160
Dimension A:
132 mm
Dimension B:
26 mm
Fixing type of handle:
screw-on from outside
Dimension D:
17 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
55 mm
Dimension R:
17 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
