Bow-type handle, Die-cast aluminium blank
Bow-type handle, Die-cast aluminium blank

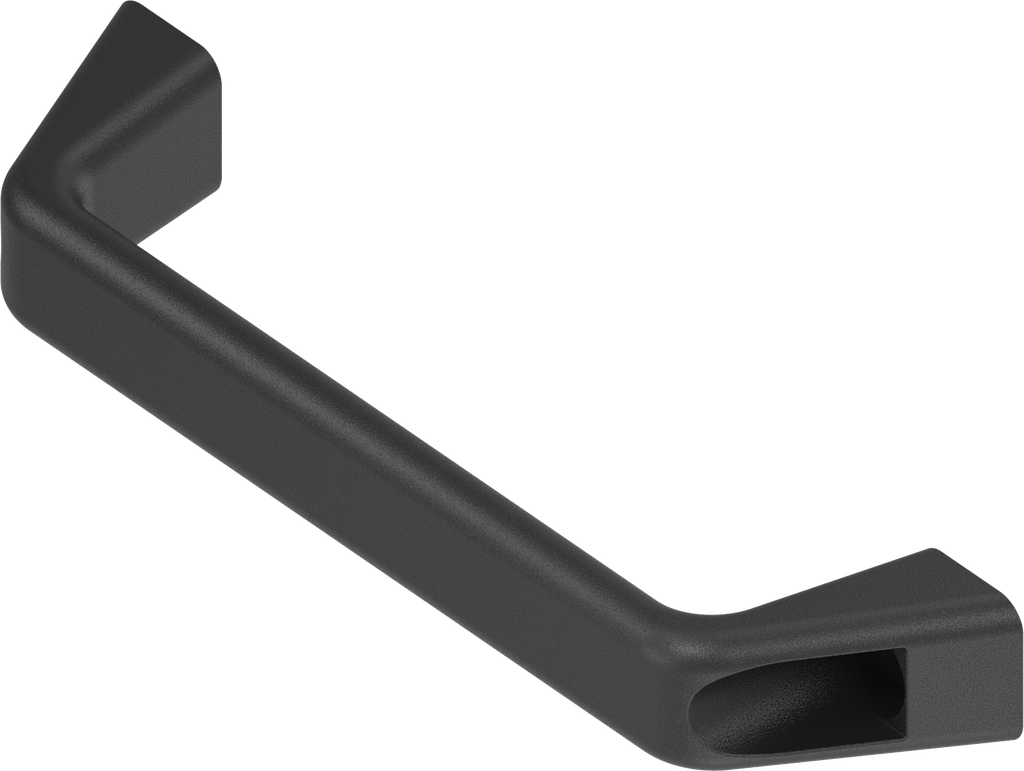

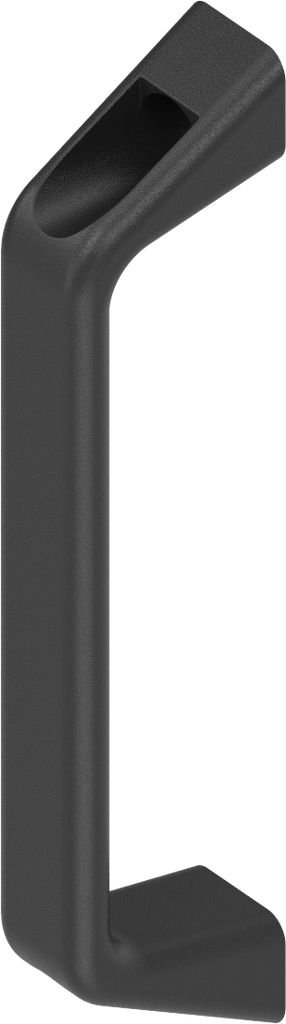

Bow-type handle, Die-cast aluminium black plastic-coated; 1095-29-180AA
A = 180 mm
100% original guarantee
Return within 30days
Free delivery on all orders

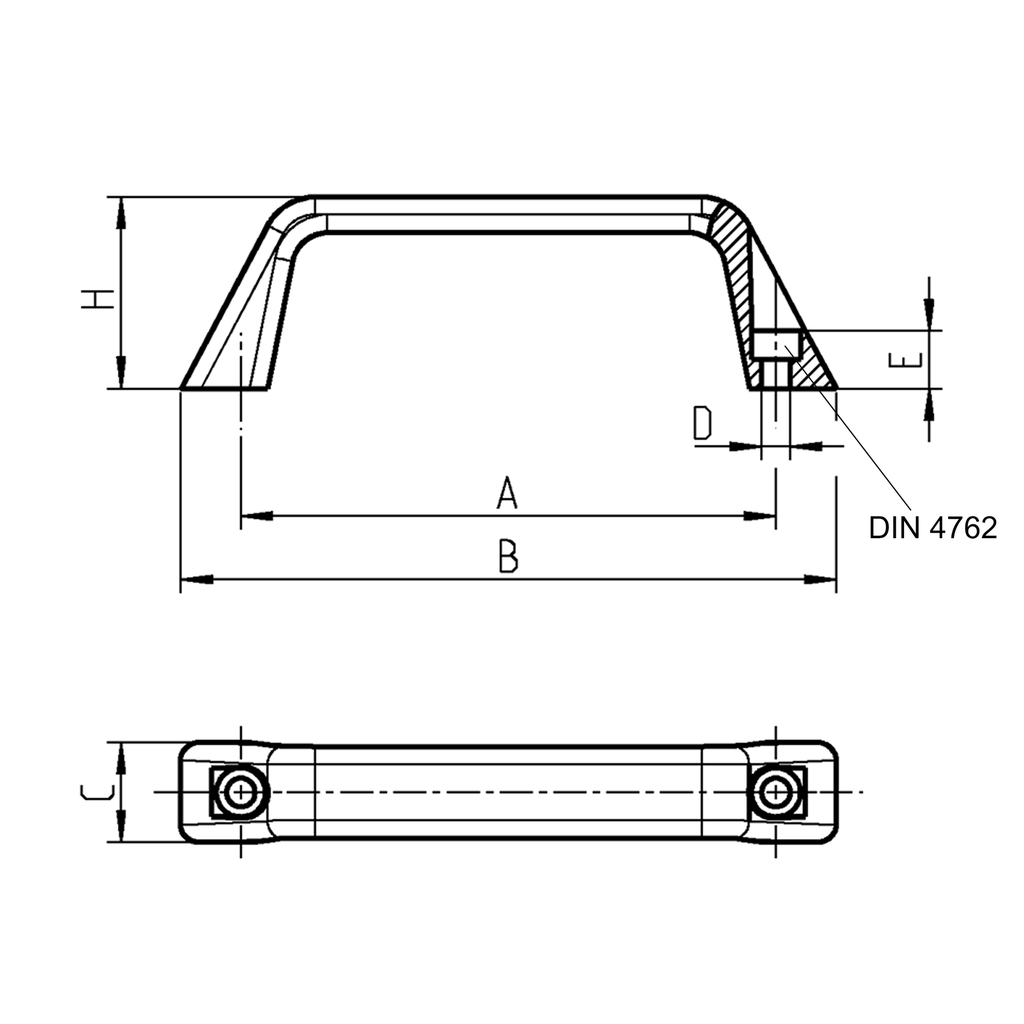

Assembly instruction:
Bore hole for hexagon socket head cap screw DIN 4762
Internal Reference:
1095-29-180AA
Barcode:
1095-000029-00180aa
Product Type:
Handle
Material:
Die-cast aluminium
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-180
Dimension A:
180 mm
Execution:
A
Dimension B:
215 mm
Fixing type of handle:
screw-on from outside
Dimension C:
27 mm
Dimension D:
8.40 mm
Dimension E:
16 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
48 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
