Bow-type handle, Stainless steel AISI 304
Bow-type handle, Stainless steel AISI 304

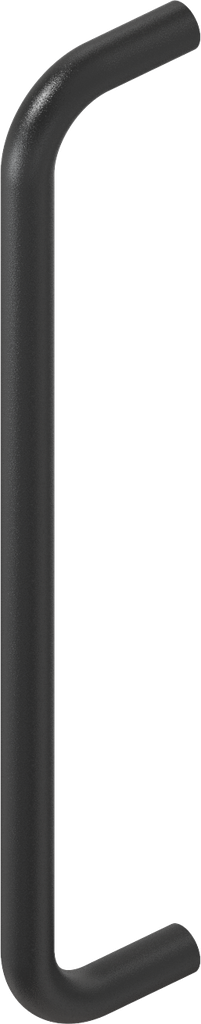

Bow-type handle, Aluminium black plastic-coated; 1095-38-250AA
A = 250 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1095-38-250AA
Barcode:
1095-000038-00250aa
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-190

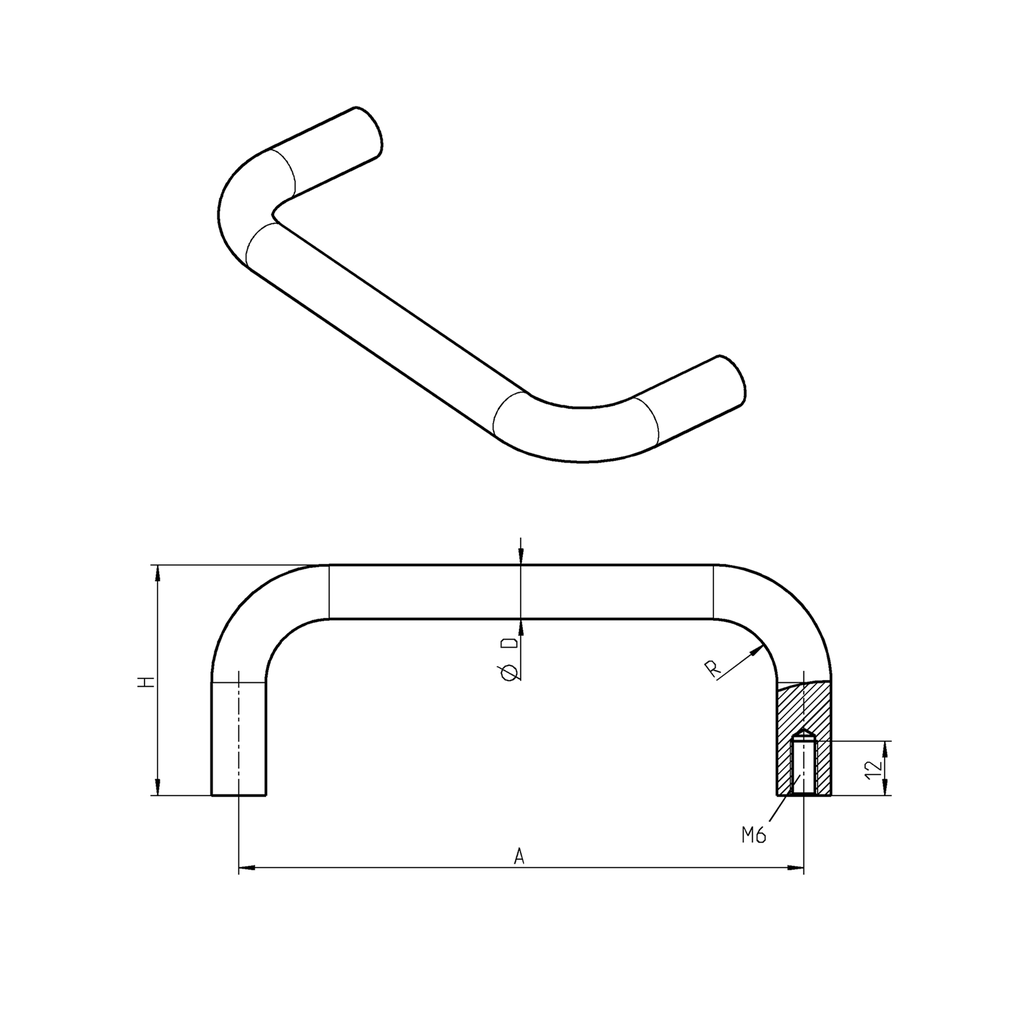

Dimension A:
250 mm
Fixing type of handle:
screw-on from inside
Dimension D:
12 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
51 mm
Dimension R:
14 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
