Cap foamed, Polyamide GF black
Swinghandle "long" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black

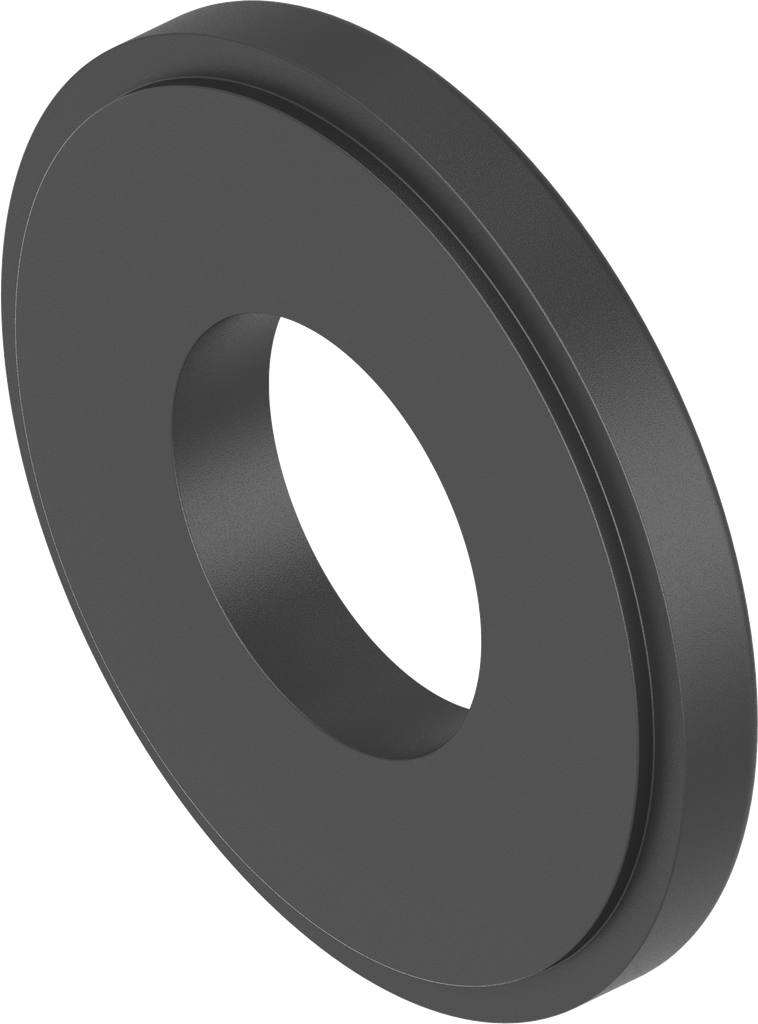

Adapter ring, Polyamide GF black; 1107-53
for cut out Ø46
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
With adapter ring the max. door gauge (Ts) will be 6 mm
Can be used for swinghandle Program 1107 and 1317

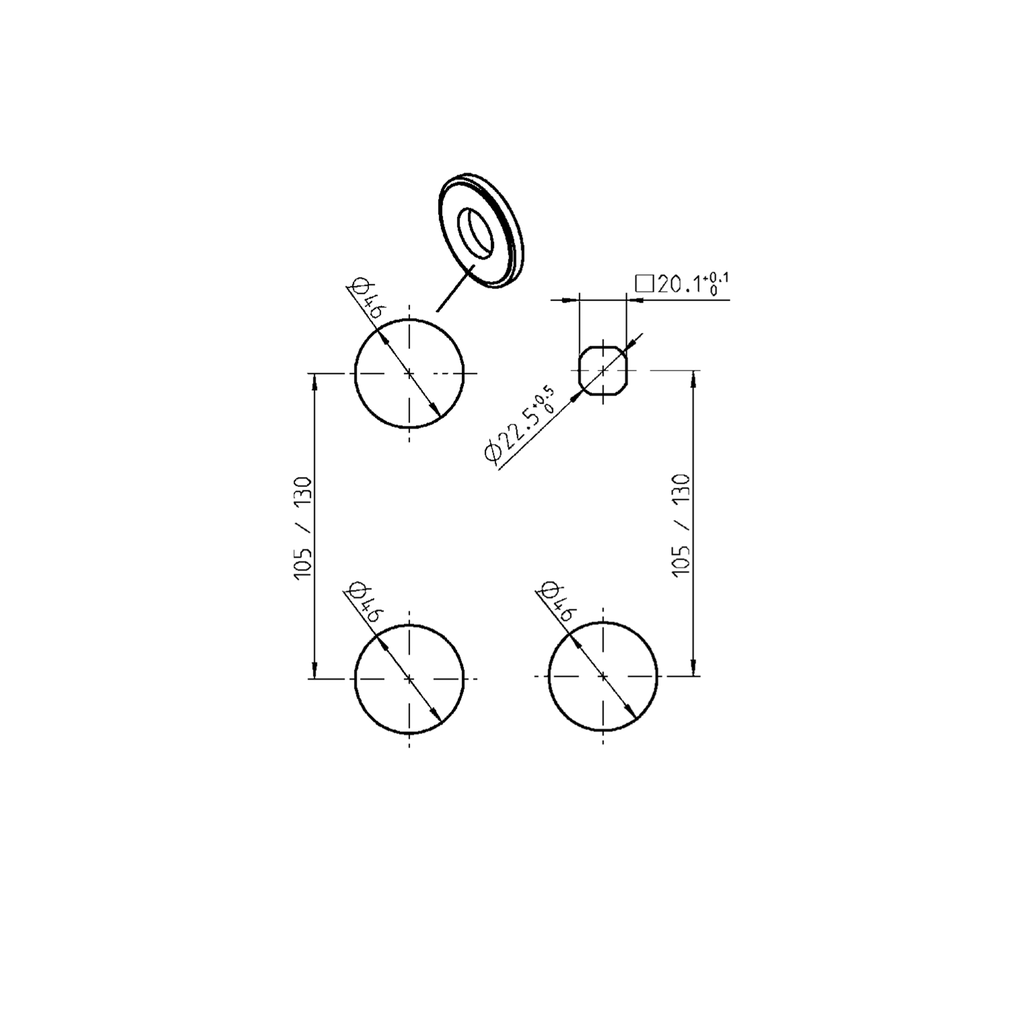

See cut out
Internal Reference:
1107-53
Barcode:
1107-000053-0000000
Product Type:
Adapter
Material:
Polyamide GF
Program:
1107
Surface:
black
Catalog sheet:
3AB-140
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
6 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
