Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Profile half cylinder with insert square 8 slotted, Zinc die chrome-plated
Profile half cylinder with insert square 8 slotted, Zinc die chrome-plated

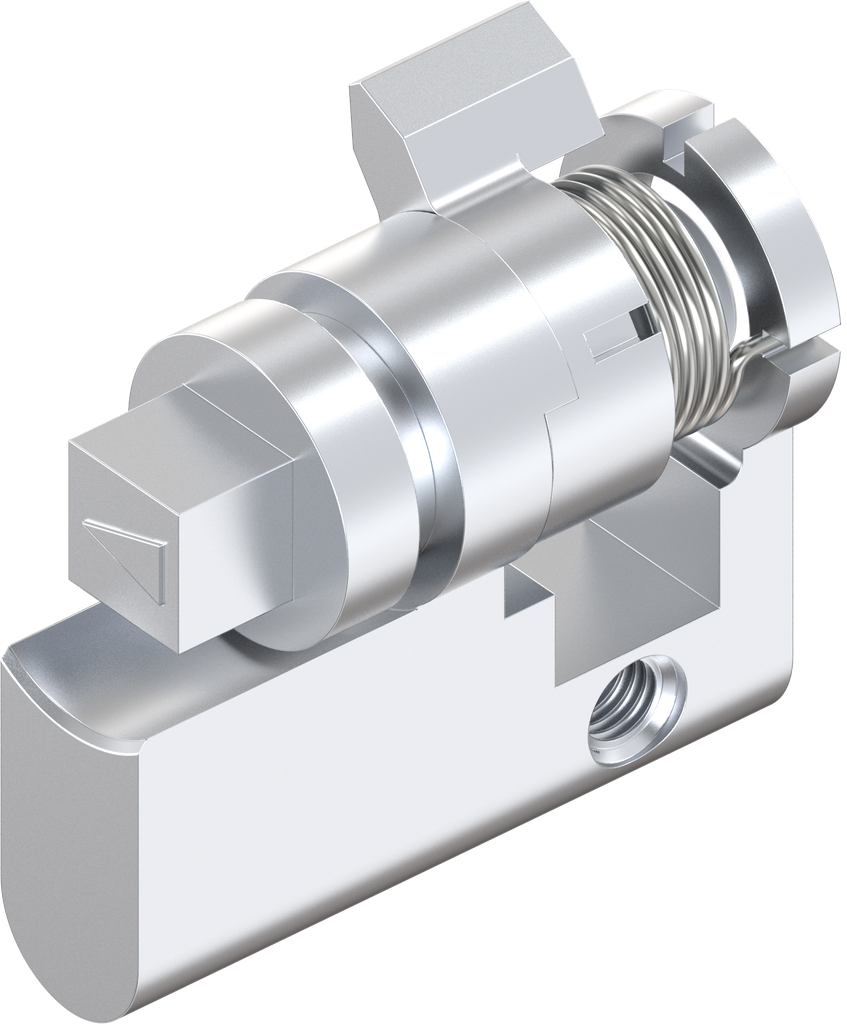

Profile half cylinder with insert square 8, Zinc die chrome-plated; 1109-U20-01

https://20260223-uat.emka.opaas.sh/shop/1109-u20-01-profile-half-cylinder-with-insert-square-8-zinc-die-chrome-plated-217909 https://20260223-uat.emka.opaas.sh/web/image/product.template/217909/image_1920?unique=dc56083

4.50 € 4.5 EUR 4.50 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1109-U20-01
    Barcode: 1109-U00020-0000001
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-320
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Type of actuation: Square 8
    snap function: Yes
    Snap function, thumb position: Locking cam top
    No Specifications
    View All Products
    Keys
    Assembly
    Swinghandle, Lifthandle
    Locking set

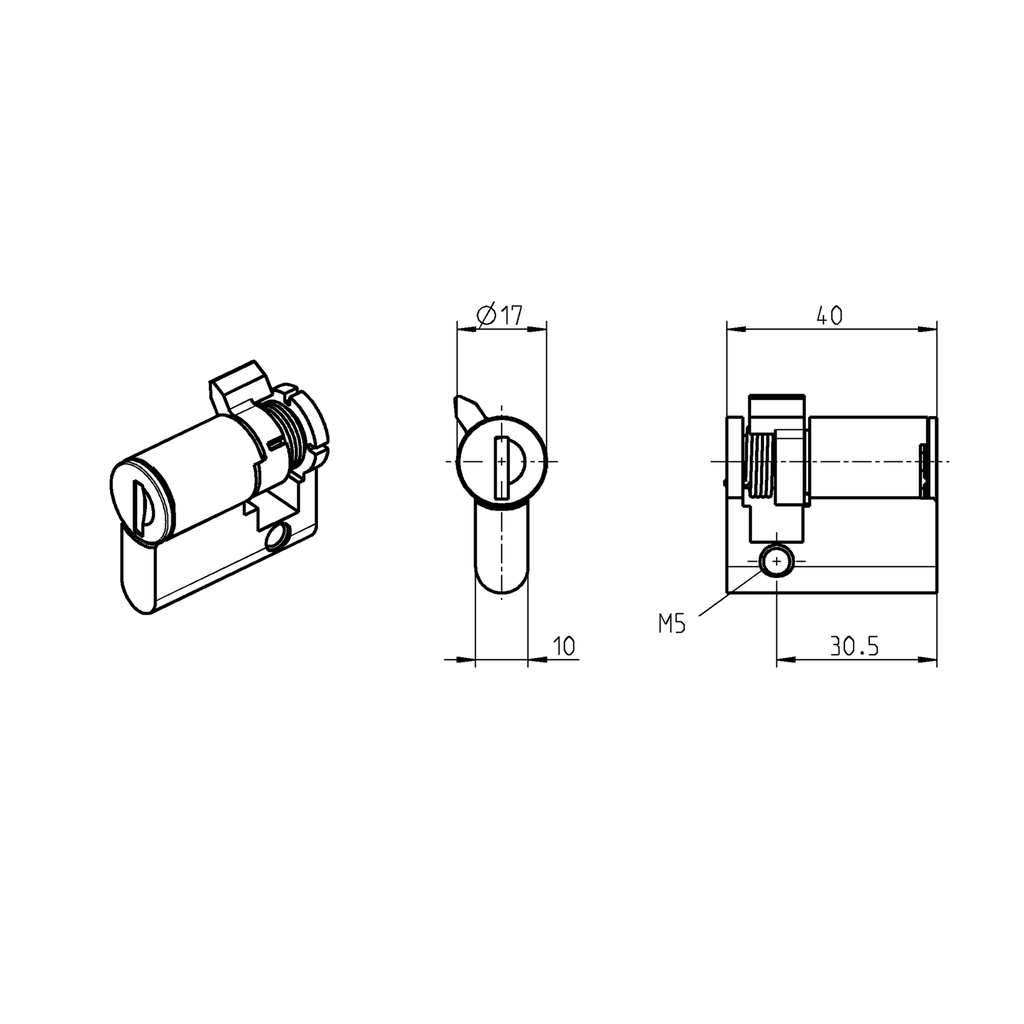

    Here you can find the product data sheets and CAD files of this product
