Cylinder quarter turn, keyed different, Zinc die black powder-coated
Rod guide for flat rod 10 x 3, Polyamide GF black

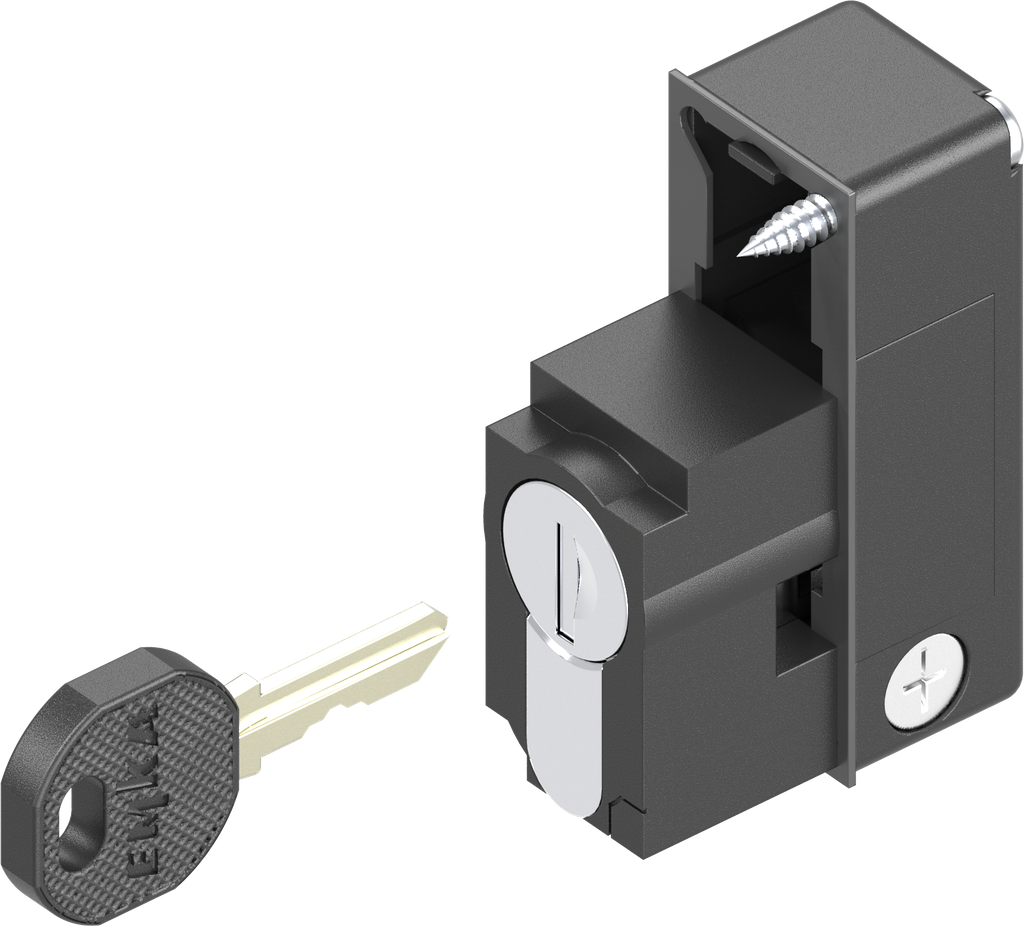

Locking set with profile half cylinder with round cylinder, keyed EK 333, Polyamide GF black; 1109-U51
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1109-U51
Barcode:
1109-U00051-0000000
Product Type:
Locking set
Program:
1109
Catalog sheet:
3XA-120
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Installation Position of Block:
Dish
Cloak:
Yes

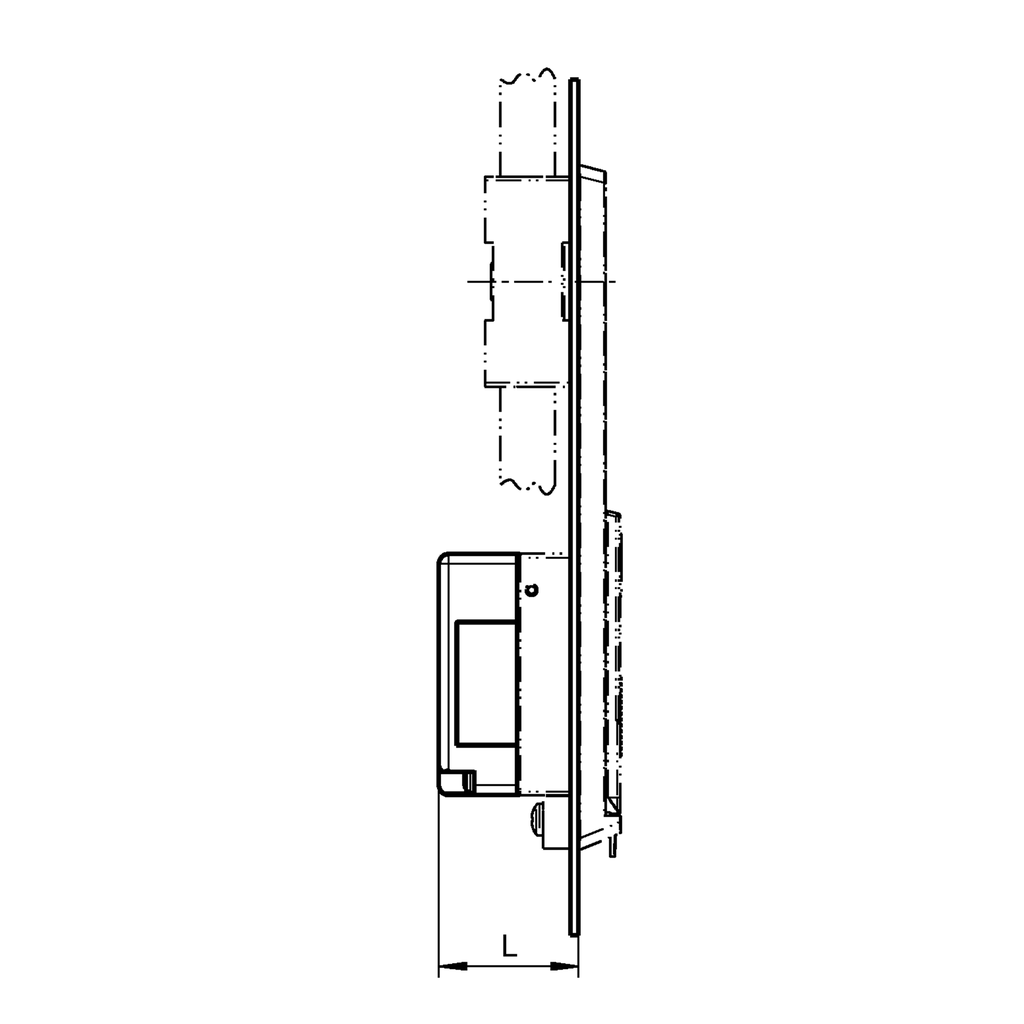

Cap dimension L:
Program 1190 = 29.5,Program 1150 = 42,Program 2400 = 23,Program 1180 = 32,Program 2100 = 36,Program 2600 = 36
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
