180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die chrome-plated
180° Hinge, Zinc die chrome-plated

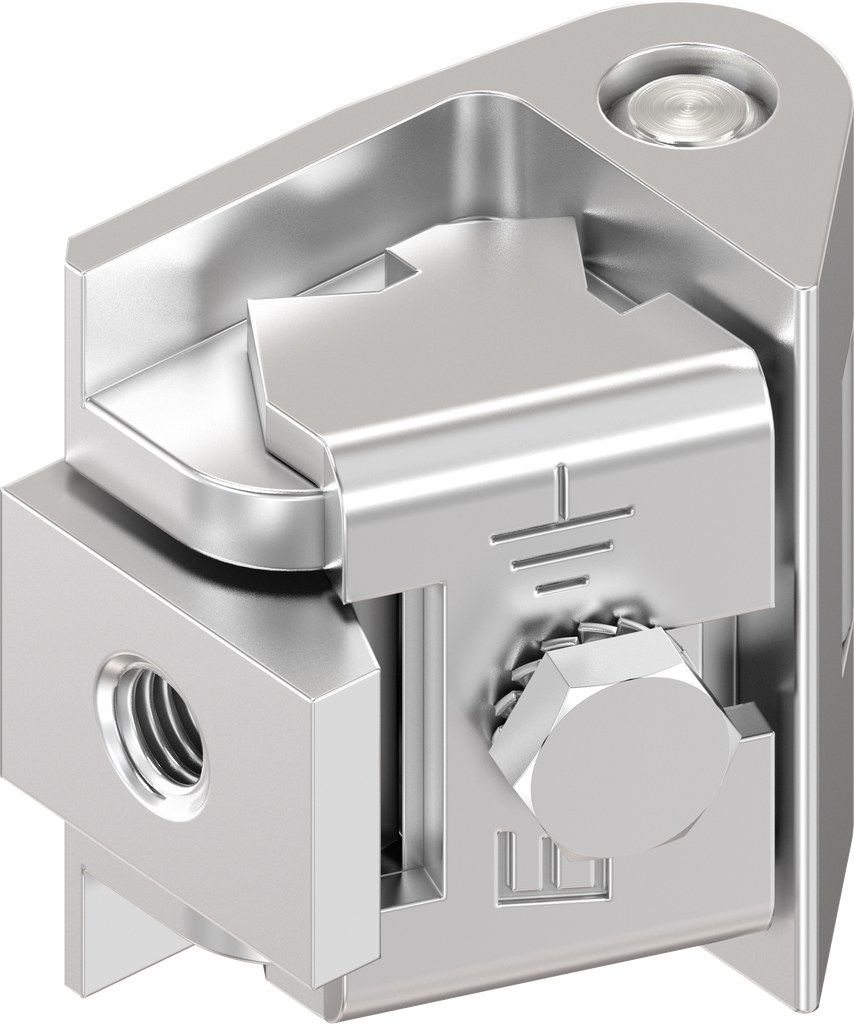

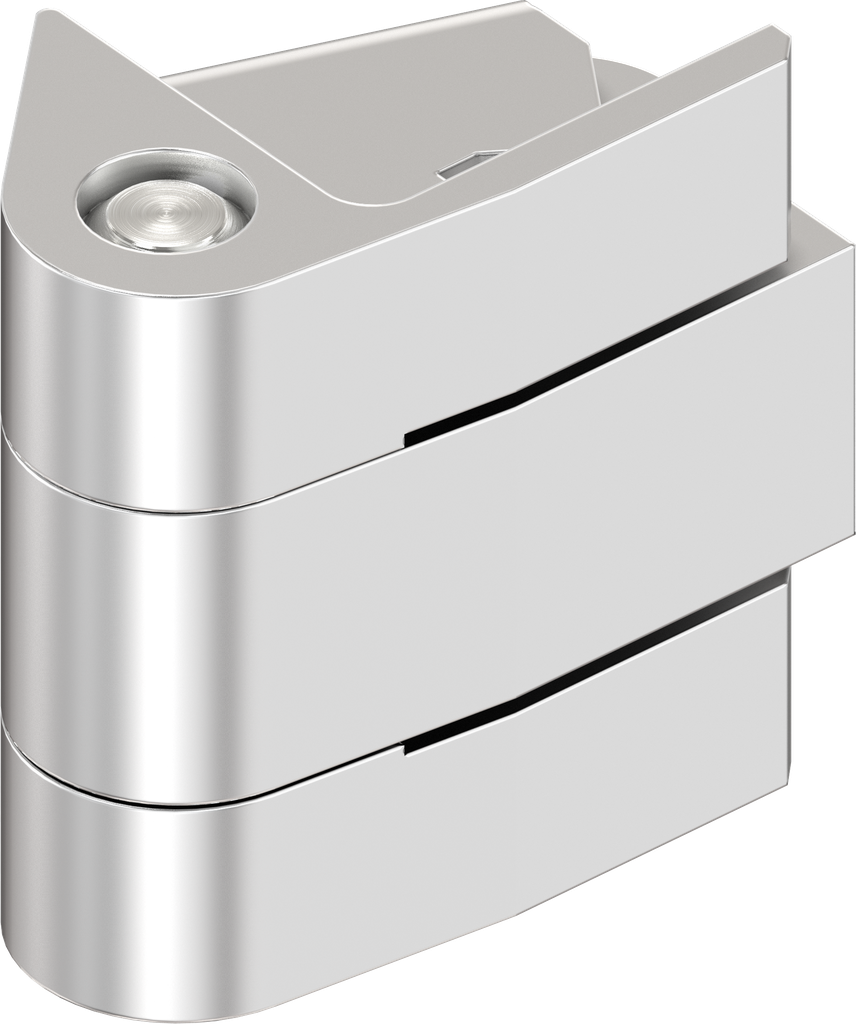

180° Hinge, Stainless steel AISI 316; 1110-U5-NPH

https://20260223-uat.emka.opaas.sh/shop/1110-u5-nph-180deg-hinge-stainless-steel-aisi-316-64194 https://20260223-uat.emka.opaas.sh/web/image/product.template/64194/image_1920?unique=f6adea9

12.53 € 12.530000000000001 EUR 12.53 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Single cabinets In-line cabinets with single door Grounding possible Left Right
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    Internal Reference: 1110-U5-NPH
    Barcode: 1110-U00005-0000NPH
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-150
    Material of the module : Stainless steel AISI 316
    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Grounding possible: Yes
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

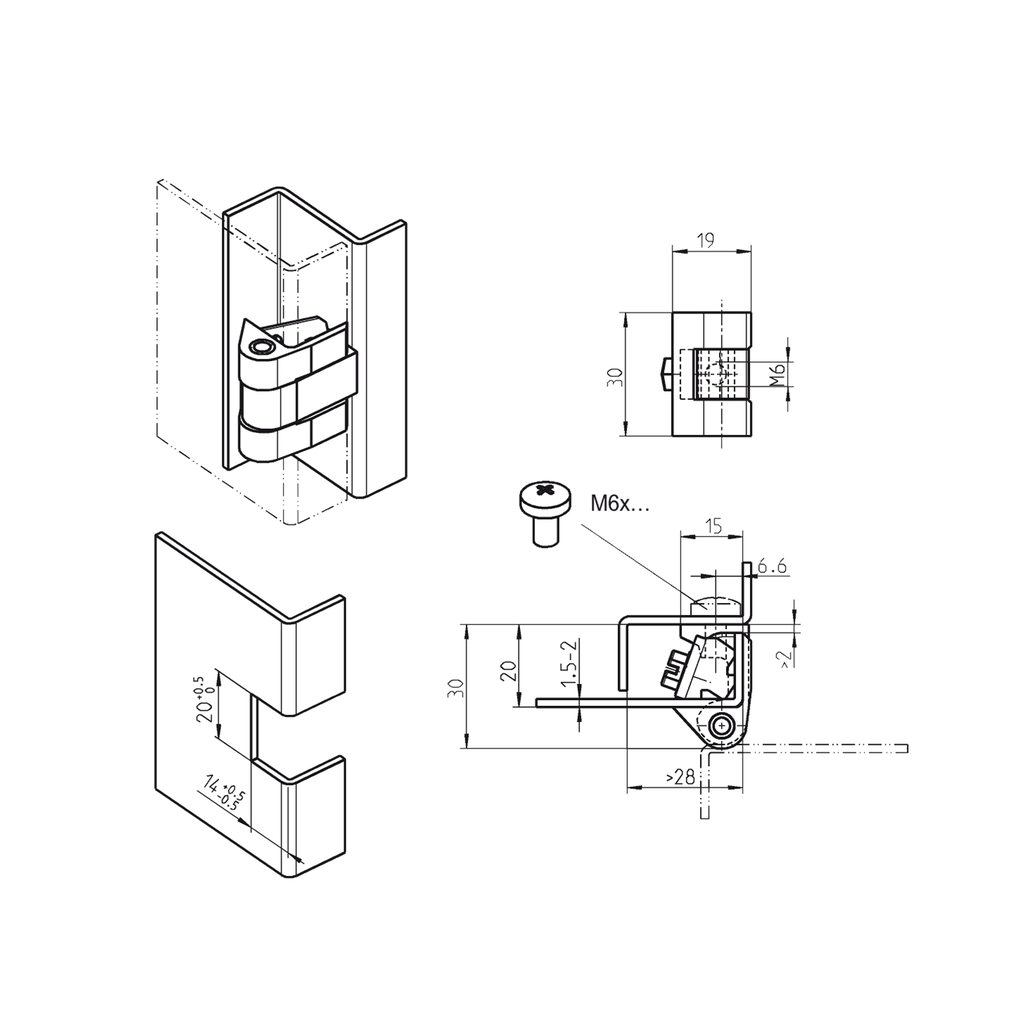

    Here you can find the product data sheets and CAD files of this product
