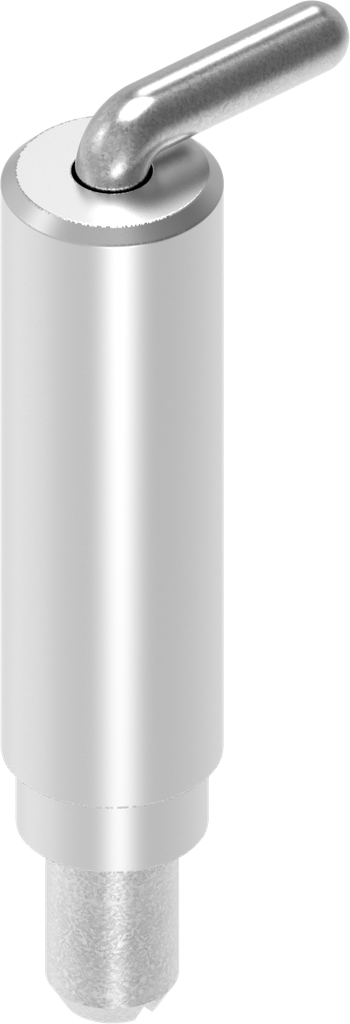

Pin hinge, Stainless steel AISI 304; 1117-U1-PF
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1117-U1-PF
Barcode:
1117-U00001-00000PF
Product Type:
Hinge
Program:
1117
Catalog sheet:
4C-120
Material of the module :
Stainless steel AISI 304
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
weld-on
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Suitable for door thicknesses up to:
6 mm
Cabinet type :
Single cabinets,In-line cabinets with single door
pin hinge:
Yes
Door position:
concealed,prominent
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products

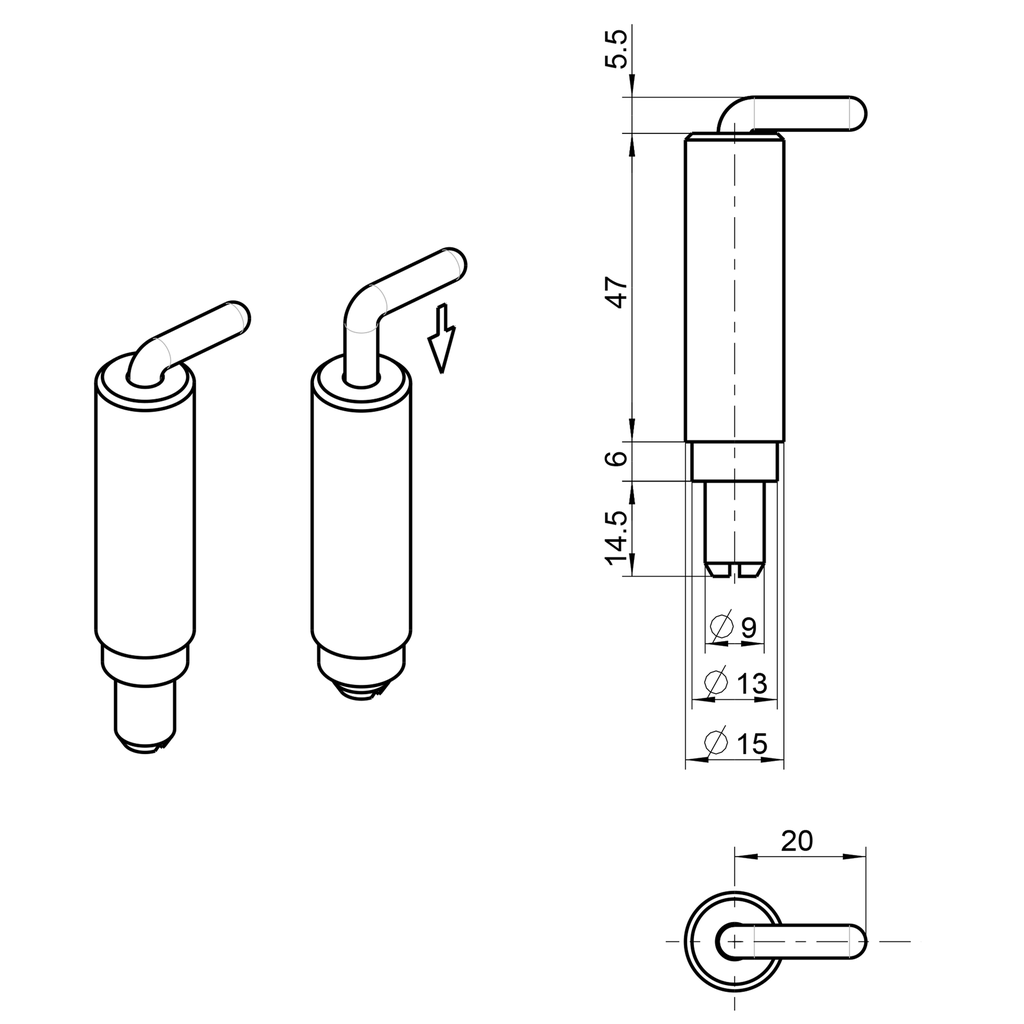

Here you can find the product data sheets and CAD files of this product
