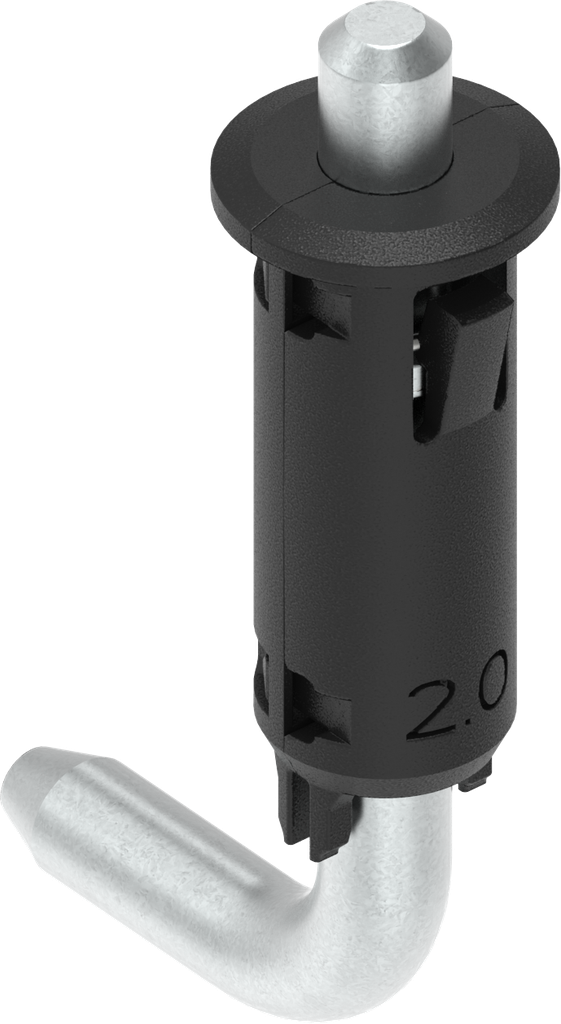

Pin hinge for Ts = 2 mm, Polyamide and zinc die black; 1117-U6-02
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
Attention:
The pin hinge is for small doors only!
Example:
Electric meter and toolboxes.

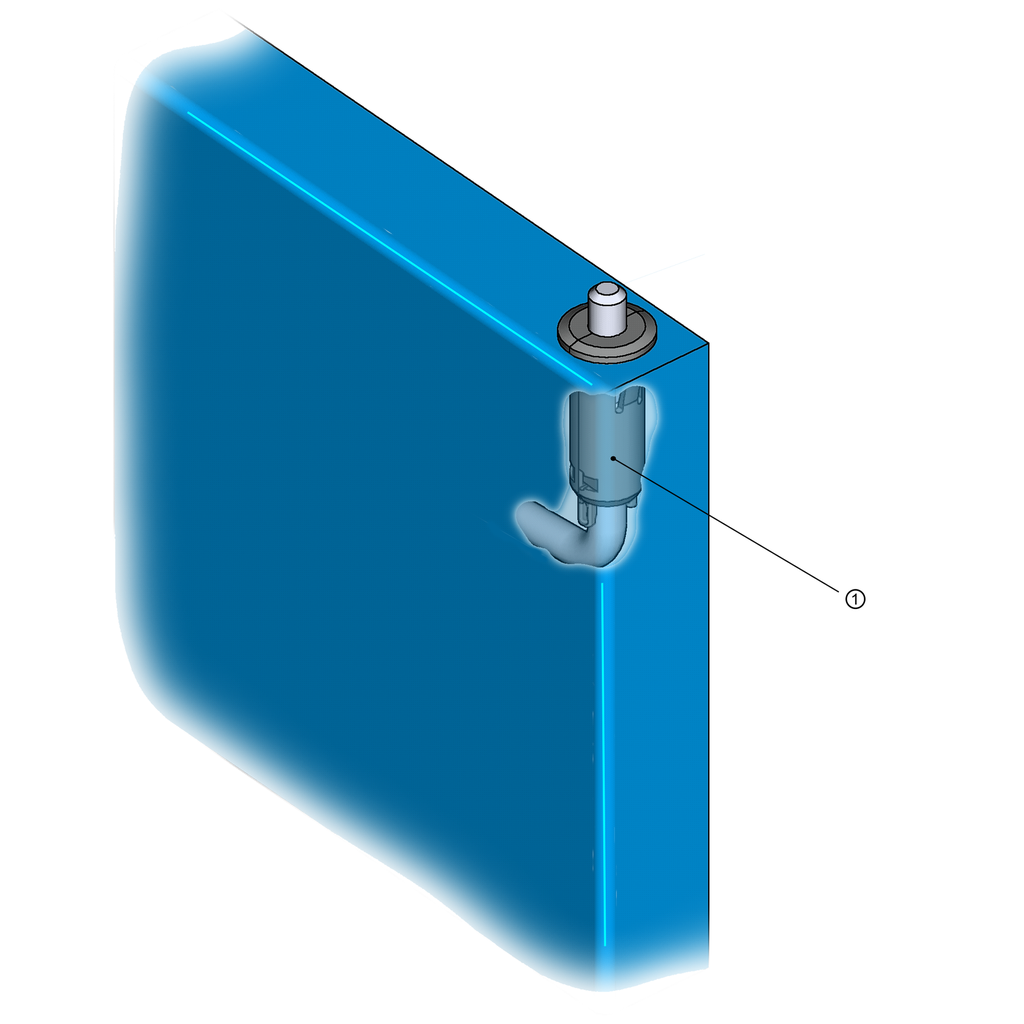

① Door depicted transparent in the the area of the hinge
Internal Reference:
1117-U6-02
Barcode:
1117-u00006-0000002
Product Type:
Hinge
Program:
1117
Catalog sheet:
4C-130
Material of the module :
Polyamide and zinc die
Surface of the module:
black
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
clamp-on / clip fix
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Cabinet type :
Single cabinets,In-line cabinets with single door
pin hinge:
Yes
Door position:
concealed,prominent
Door Version :
Left,Right
Door thickness:
2 mm
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
