Catch for rod with locking slider, Zinc die black powder-coated
Flat rod with notch, Steel zinc-plated

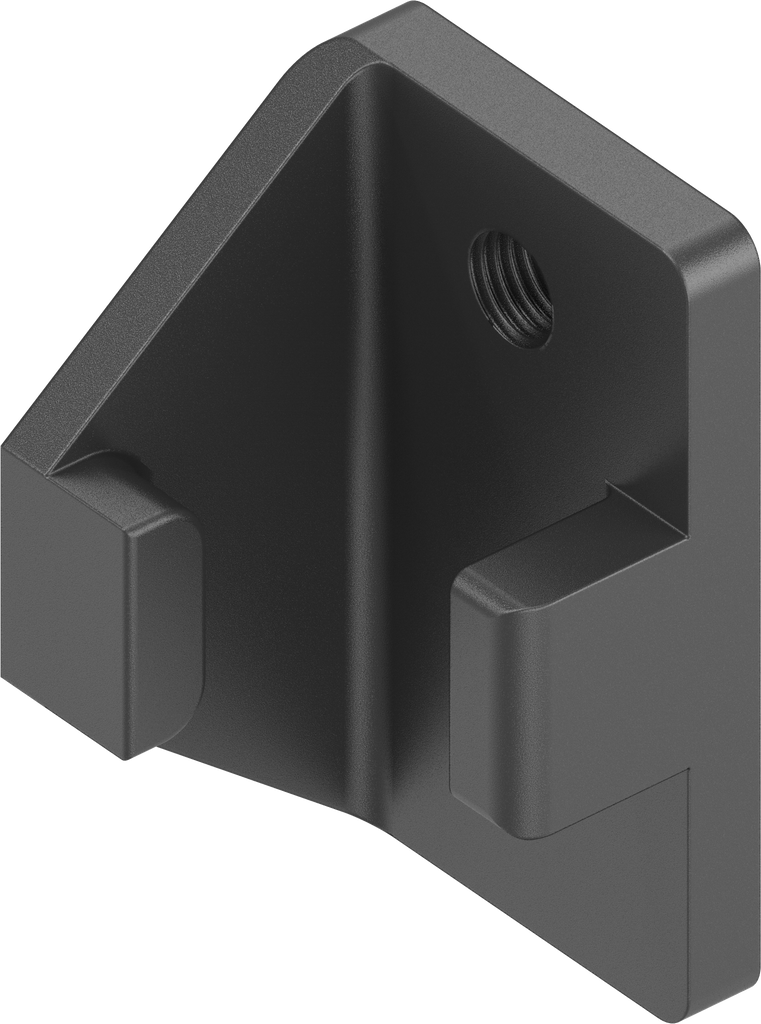

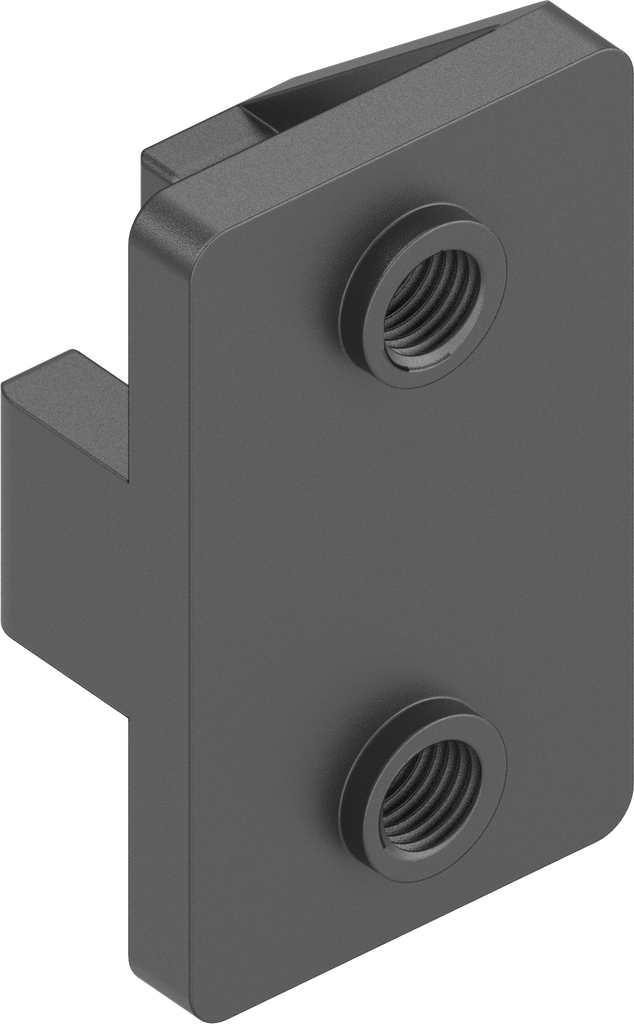

Catch for rod with locking slider, Zinc die black powder-coated; 1121-54-P
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
Catch interchangeable with 120° hinge, catalogue page 4A-190, or 180° hinge, catalogue page 4A-210
Internal Reference:
1121-54-P
Barcode:
1121-000054-000000P
Product Type:
Catch
Material:
Zinc die
Program:
1121
Surface:
black powder-coated
Catalog sheet:
3ZA-1220
Type of fastening:
with female thread M6
Mounting Positions :
Outside the sealing
Flat Bar Size:
Flat rod 14 x 3
Locking system type:
Flat rod with locking slider
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
