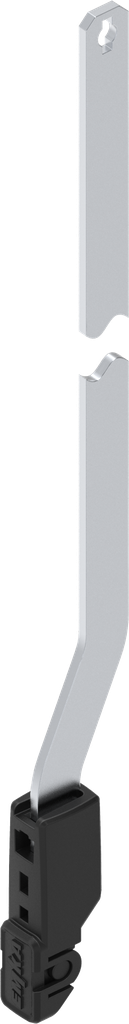

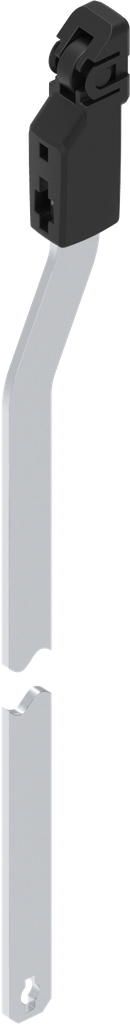

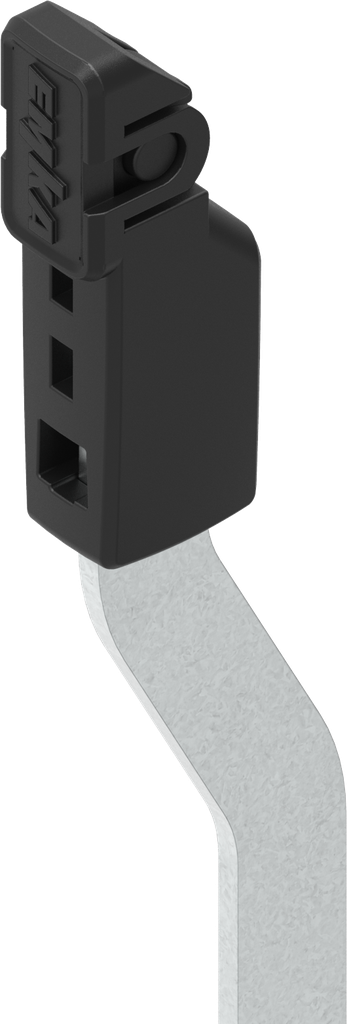

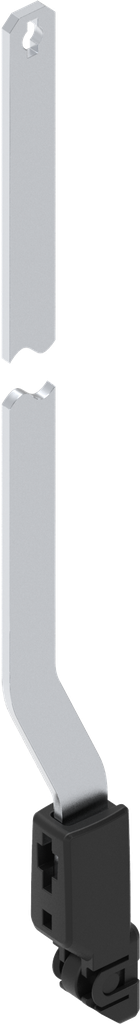

Flat rod L = 1101 - 1200 mm with guiding shoe, completely assembled, Steel zinc-plated; 1121-U187-08
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:

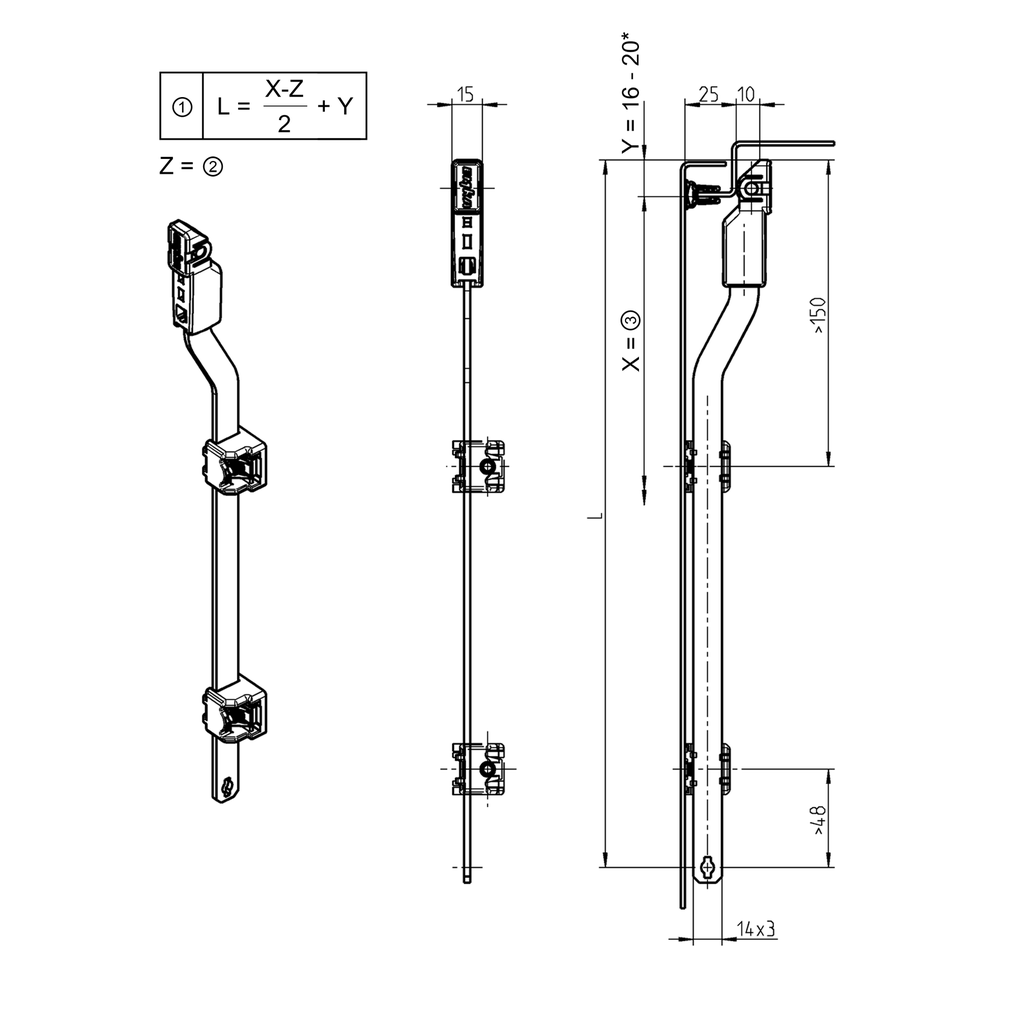

① = Calculation of the rod length L
② = Rod control length ( e.g. dimension 347 on catalogue page 3YA-120 )
③ = Clear height
* = Dimension Y depending on type of seal
Order / Calculation example:
Order number for a flat rod with shoe, complete, and a length of 1034 mm = 1121-U187-L 1034
Internal Reference:
1121-U187-08
Barcode:
1121-U00187-0000008
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with shoe for rod control
Compression Value :
10 mm
Dimension L up to:
1200 mm
Dimension L from:
1101 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
