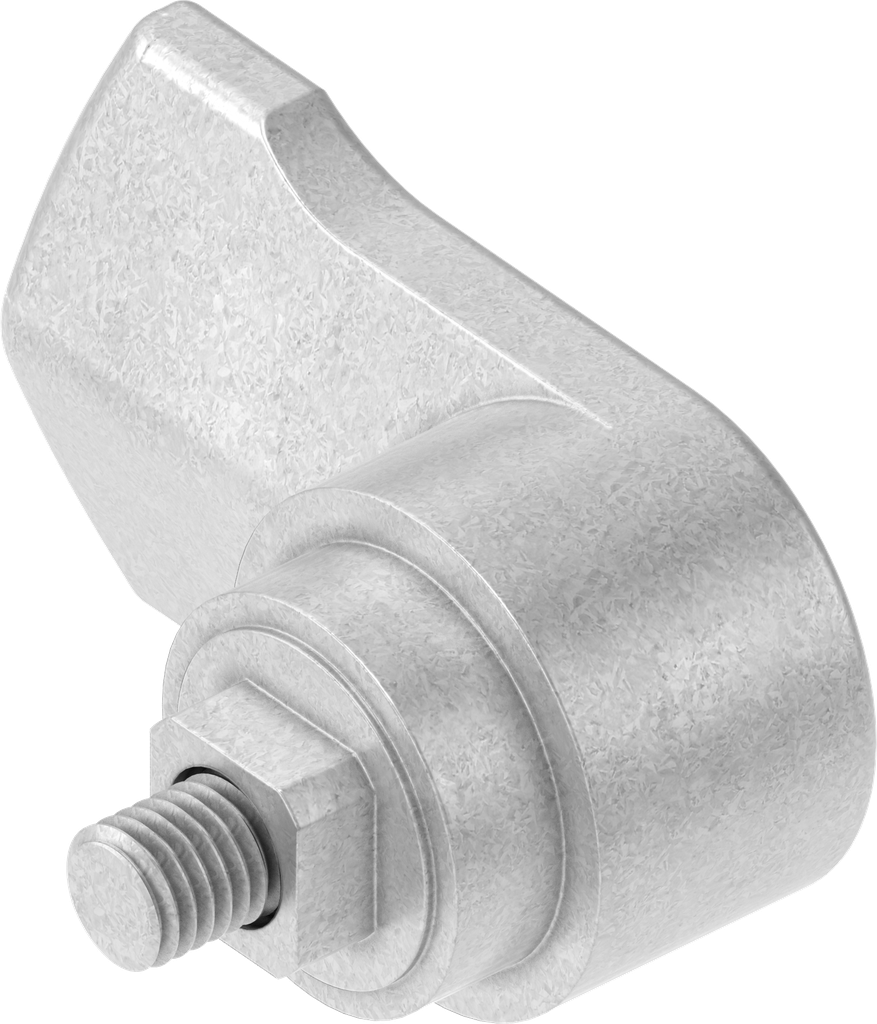

Cam, Zinc die zinc-plated; 1121-U25
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1121-U25
Barcode:
1121-U00025-0000000
Product Type:
Cam
Program:
1121
Catalog sheet:
3YA-820
Material of the module :
Zinc die
Surface of the module:
zinc-plated

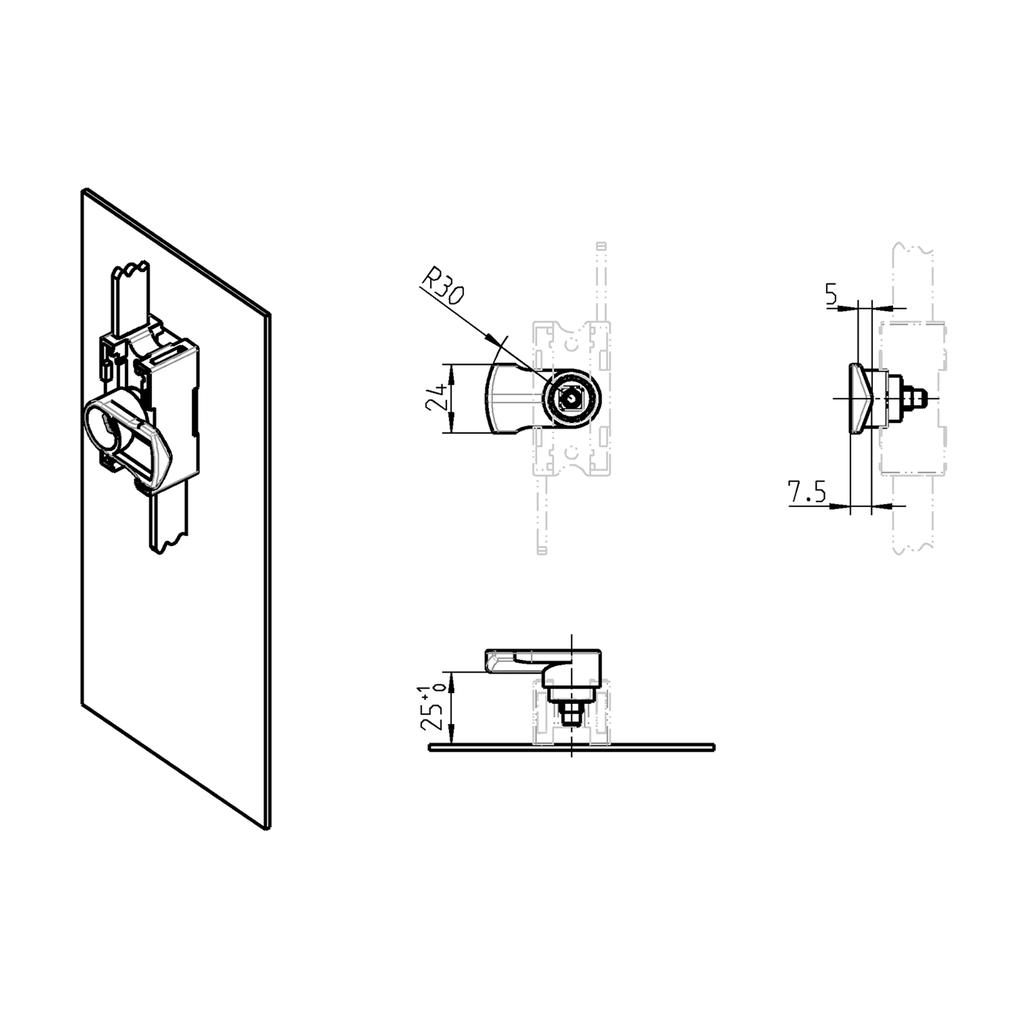

Dimension A:
25 mm
Mounting Positions :
Inside the sealing
Compression Value :
4.5 mm
Dimension L:
30 mm
Spoon:
Yes
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
