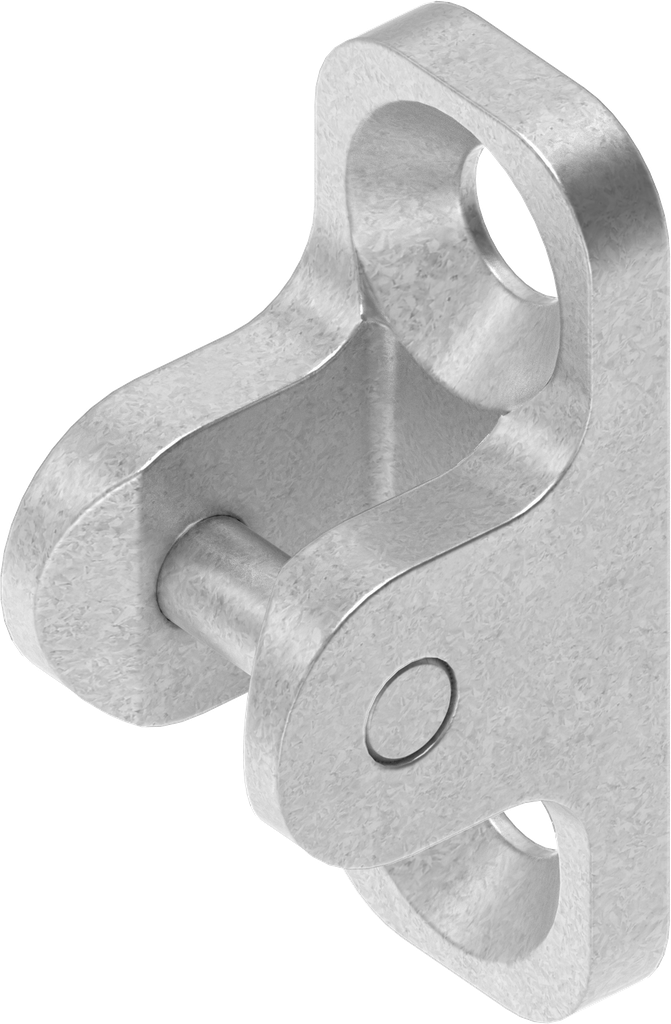

Catch for flat rod with notch, Zinc die zinc-plated; 1121-U76
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
Catch interchangeable with 120° hinge, catalogue page 4A-190, or 180° hinge, catalogue page 4A-210
Internal Reference:
1121-U76
Barcode:
1121-U00076-0000000
Product Type:
Catch
Program:
1121
Catalog sheet:
3ZA-610
Material of the module :
Zinc die
Surface of the module:
zinc-plated
Type of fastening:
for countersunk screw M6
Mounting Positions :
Outside the sealing
Flat Bar Size:
Flat rod 14 x 3
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Locking system type:
Flat rod with notch
No Specifications
