Rod control for flat rods, Zinc die and steel zinc-plated
Flat rod with locking slider , Steel zinc-plated

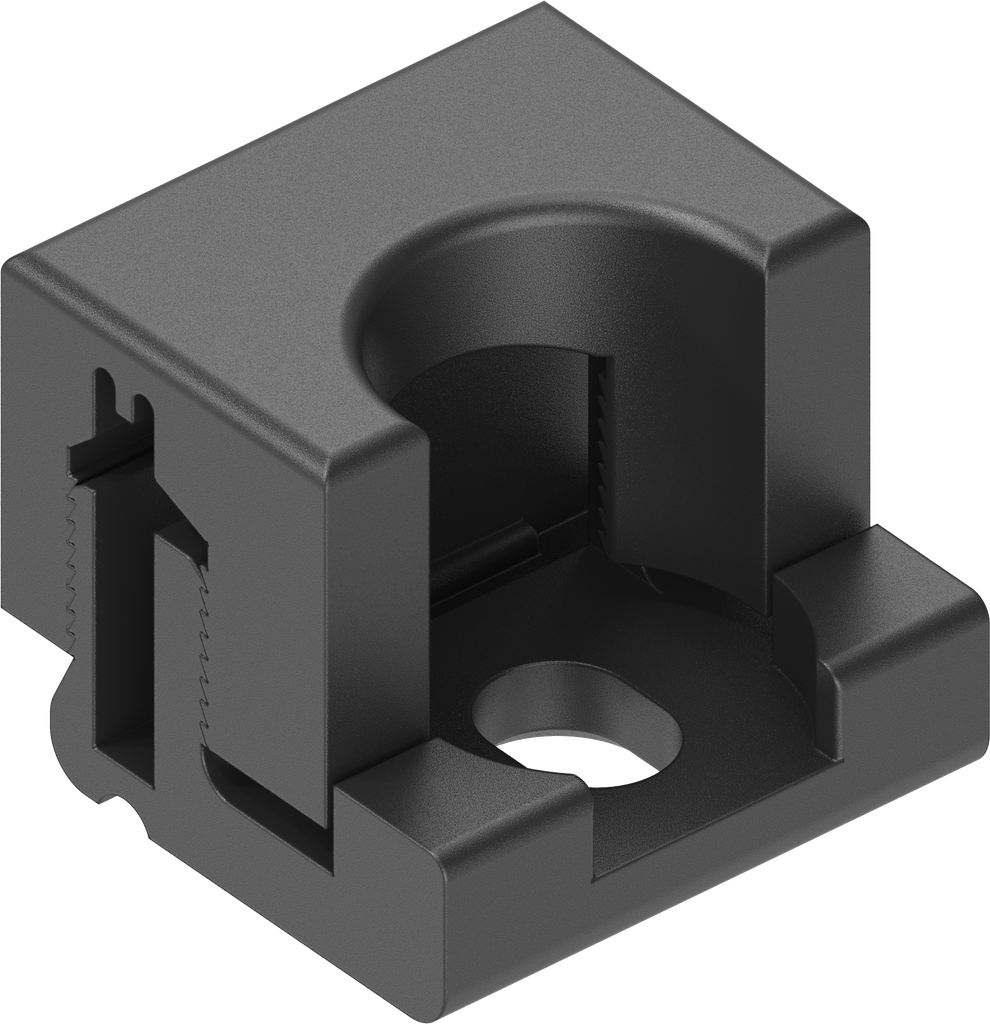

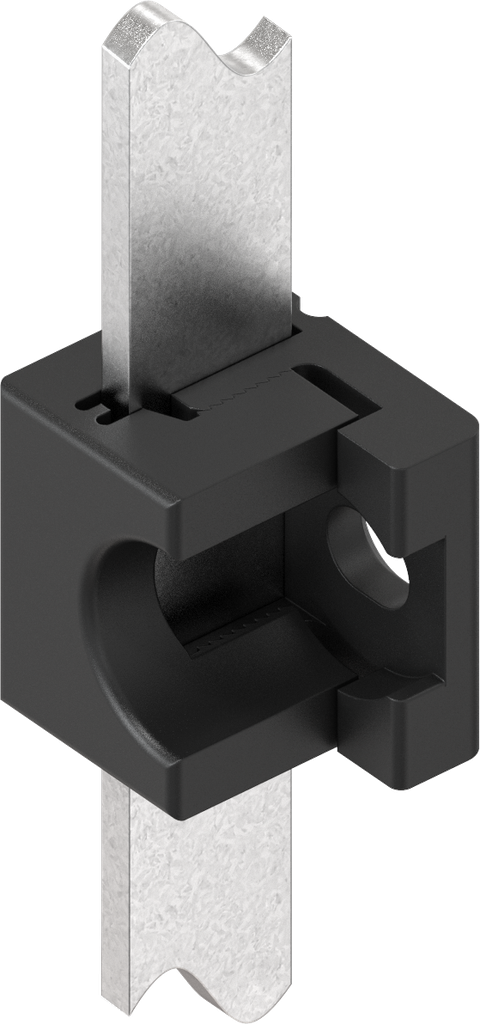

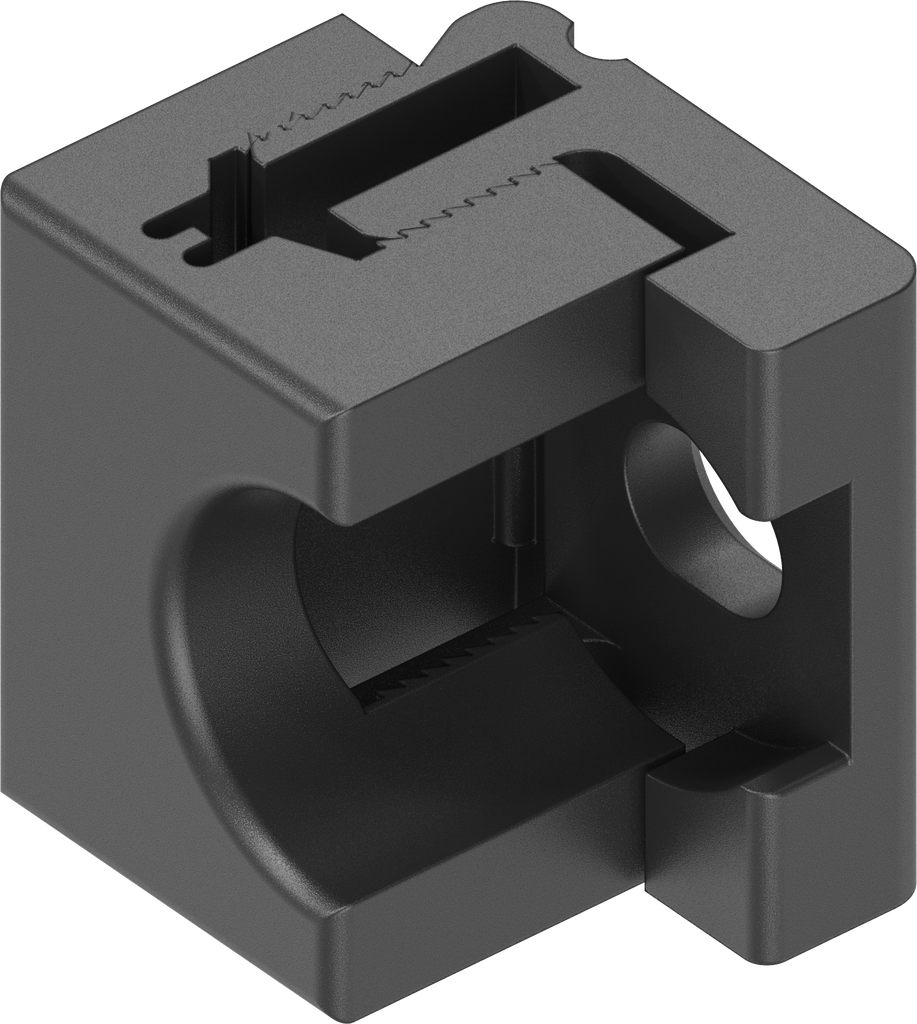

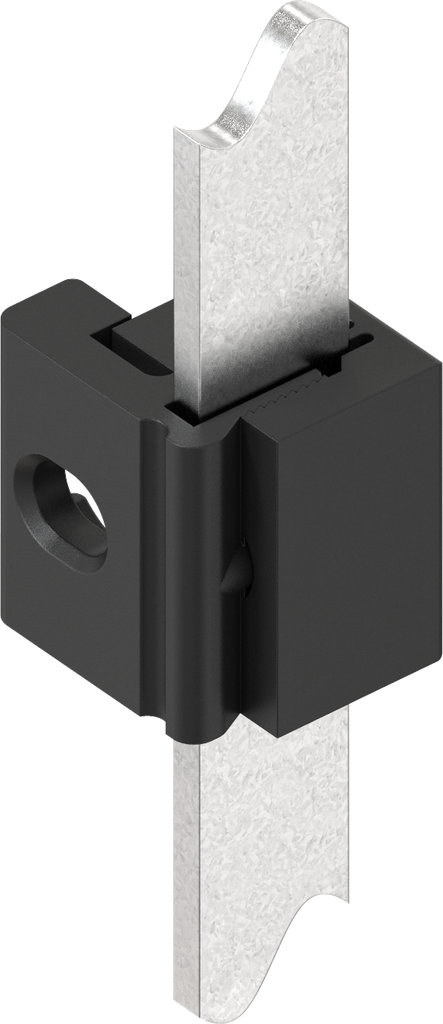

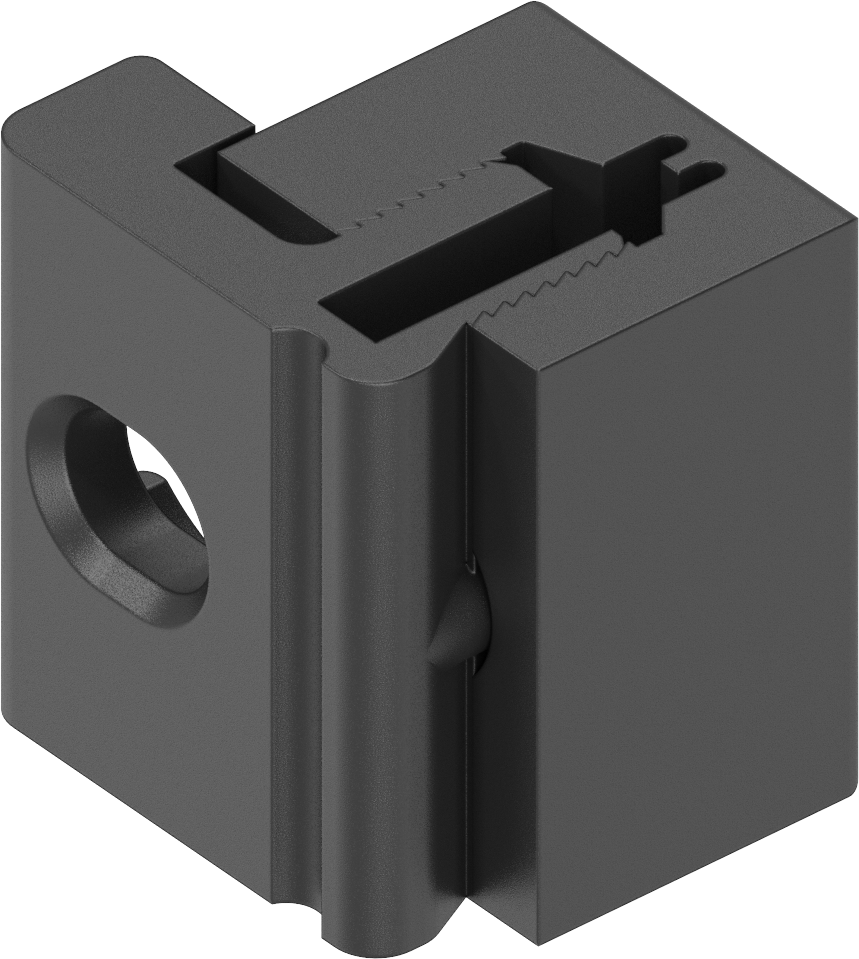

Rod guide for flat rod 14 x 3, Polyamide GF black; 1121-U91
Pre-assembly of the bottom part possible, cover will clip-on
100% original guarantee
Return within 30days
Free delivery on all orders
Product Benefits:
Pre-assembly of the bottom part possible, Cover will clip-on
Internal Reference:
1121-U91
Barcode:
1121-U00091-0000000
Product Type:
Rod guide
Program:
1121
Catalog sheet:
3ZC-120
Material of the module :
Polyamide GF
Surface of the module:
black
Fixing of rod guide:
Weld stud M6 x 12
For Flat Bars:
14 x 3
Assembly:
Pre-assembly of bottom part,Cover will clip-on
No Specifications
View All Products

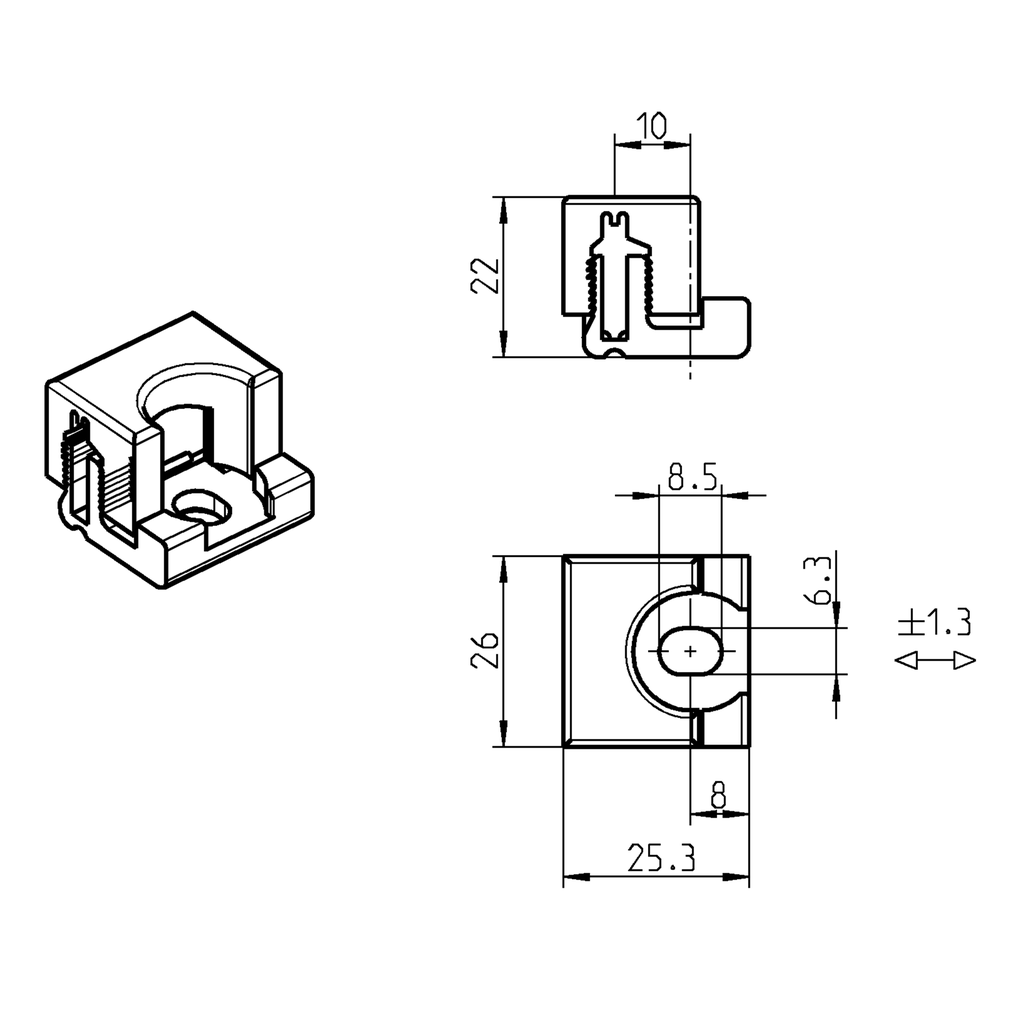

Here you can find the product data sheets and CAD files of this product
