Escutcheon with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon with L-handle, non-keyed, Polyamide black and zinc die black powder-coated

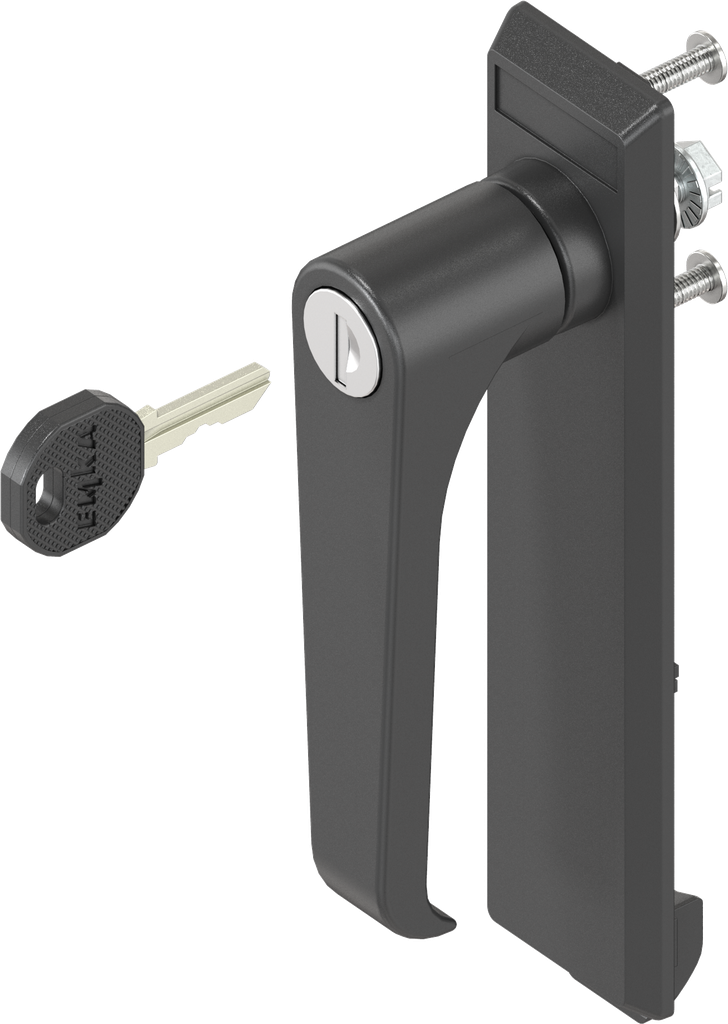

Escutcheon with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated; 1123-U14-06
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1123-U14-06
Standards:
Protection class IP 40
Barcode:
1123-U00014-0000006
Product Type:
Escutcheon
Program:
1123
Catalog sheet:
3B-180
Material of the module :
Polyamide black and zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Handle Art:
L-handle
Locking means key tag:
L-handle keyed EK 333
Key Tag Size:
long
Door thickness:
2 mm
Locking components:
Rod control,Bearing bush with cam
No Specifications
View All Products

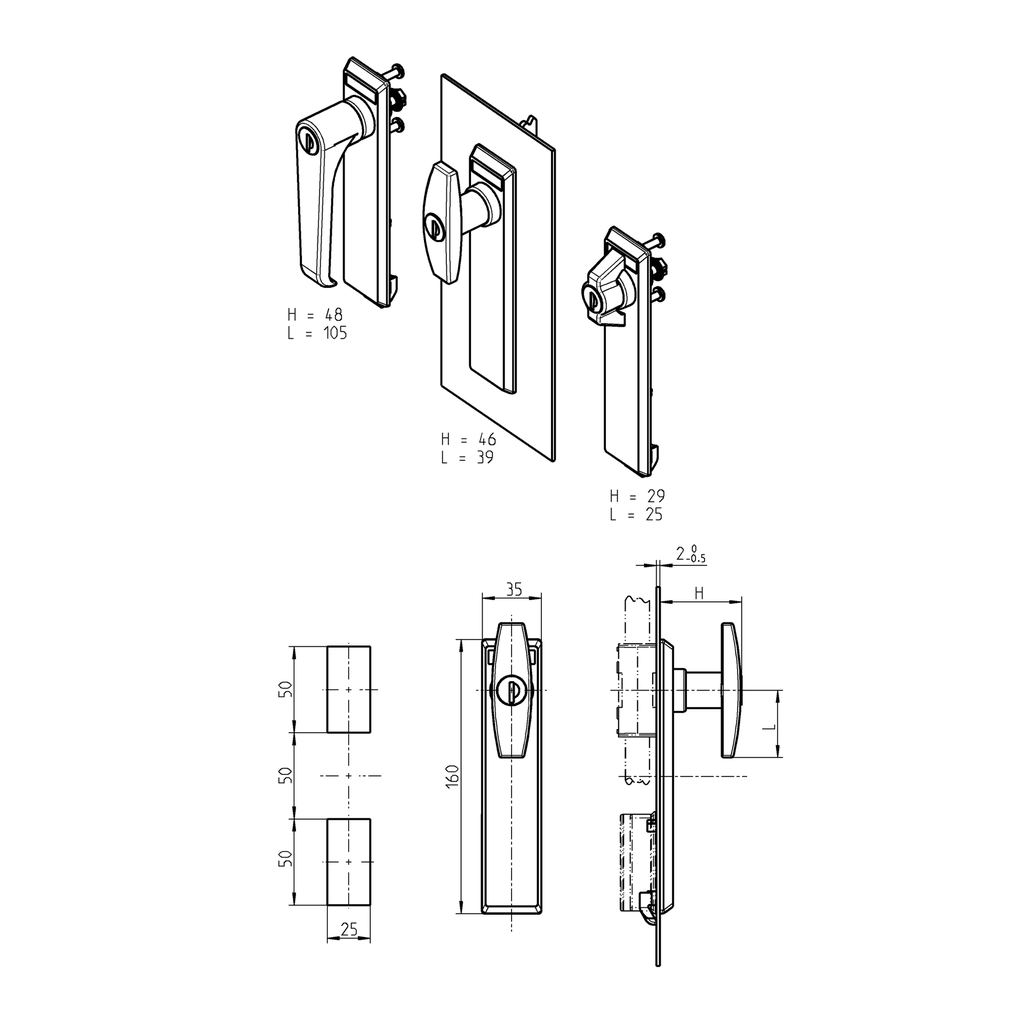

Here you can find the product data sheets and CAD files of this product
