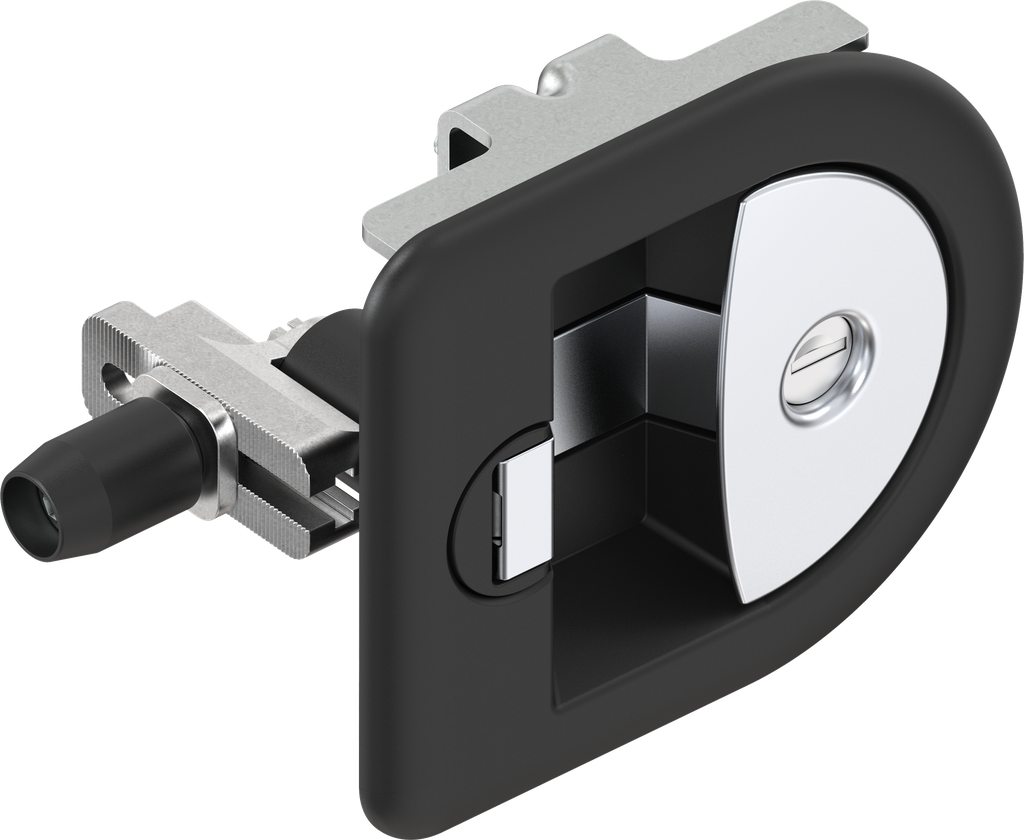

Chest handle keyed EK 333, Polyamide black and zinc die chrome-plated
Chest handle keyed EK 333, Polyamide black and zinc die chrome-plated
Cylinder cover (spare part), Bio-Flex black
Cylinder cover (spare part), Bio-Flex black

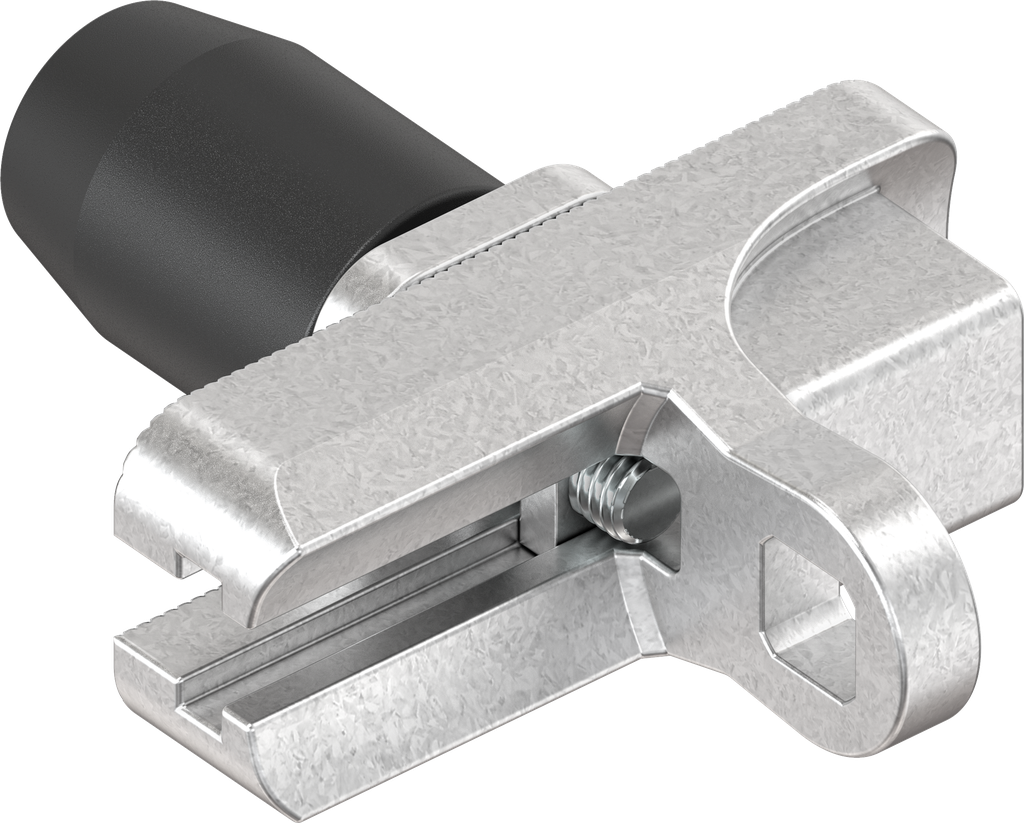

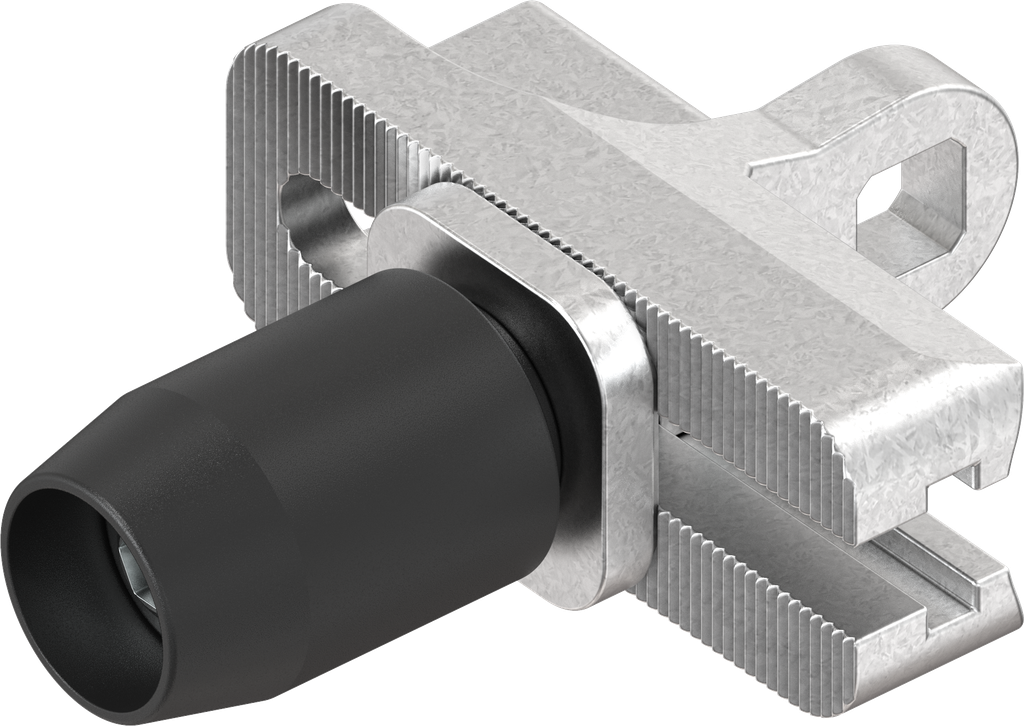

Roller cam height-adjustable, Polyamide black and zinc die zinc-plated; 1130-U16

https://20260223-uat.emka.opaas.sh/shop/1130-u16-roller-cam-height-adjustable-polyamide-black-and-zinc-die-zinc-plated-64732 https://20260223-uat.emka.opaas.sh/web/image/product.template/64732/image_1920?unique=542f4d1

2.54 € 2.54 EUR 2.54 €

0.00 €

Not Available For Sale

    This combination does not exist.

    Inside the sealing
    Contact Us
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Product information:

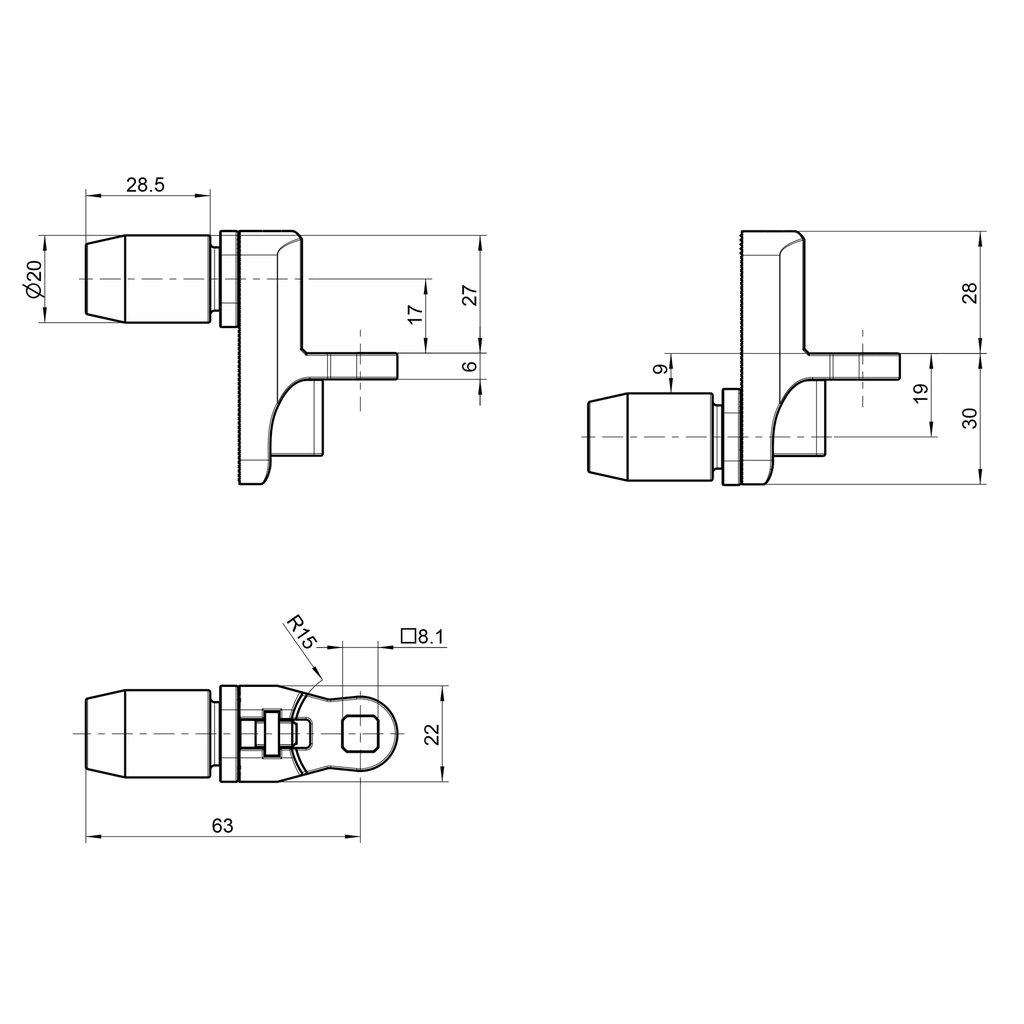

    H = 16 - 52 mm A = Roller cam height-adjustable Height adjustable in 1 mm steps
    Internal Reference: 1130-U16
    Barcode: 1130-u00016-0000000
    Product Type: Cam
    Program: 1130
    Catalog sheet: 8A-110
    Material of the module : Polyamide black and zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Offset: Height adjustable
    Dimension L: 63 mm
    No Specifications
    View All Products
    Other latch
    Here you can find the product data sheets and CAD files of this product
