Rod with torsion for top, Steel zinc-plated
Swinghandle with rods, keyed EK 333, Polyamide and zinc die black powder-coated
Rod with torsion for top, Steel zinc-plated; 1160-08-07RA
No stock item, please ask for availability
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:

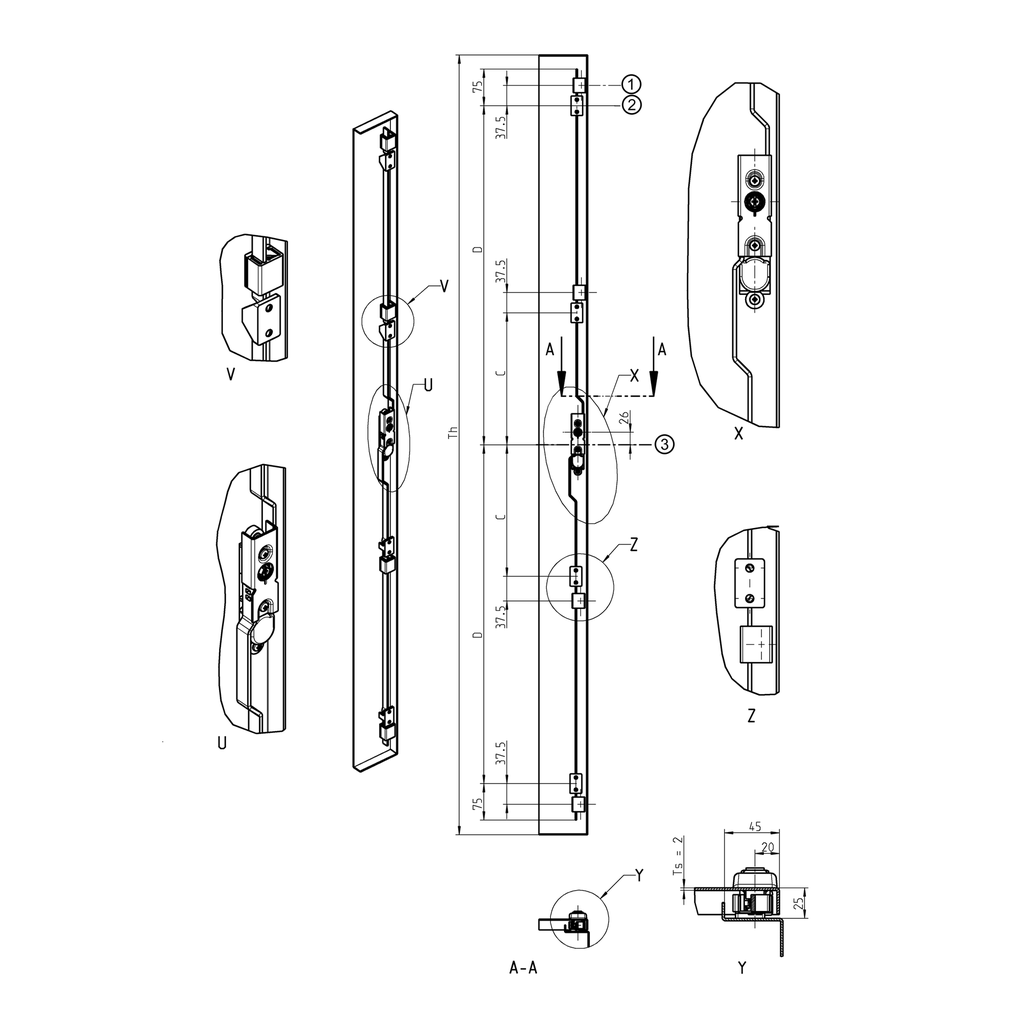

Order respective upper and lower rod separately.
① = Rod guide centre
② = Catch centre
③ = Door centre
Internal Reference:
1160-08-07RA
Barcode:
1160-000008-00007RA
Product Type:
Rod
Material:
Steel
Program:
1160
Surface:
zinc-plated
Catalog sheet:
3ZA-420
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
C Dimension:
275
D Dimension:
850
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with torsion
For Door Height:
1900-2200
No Specifications
