Rod control, left version, Polyamide and steel black and zinc-plated

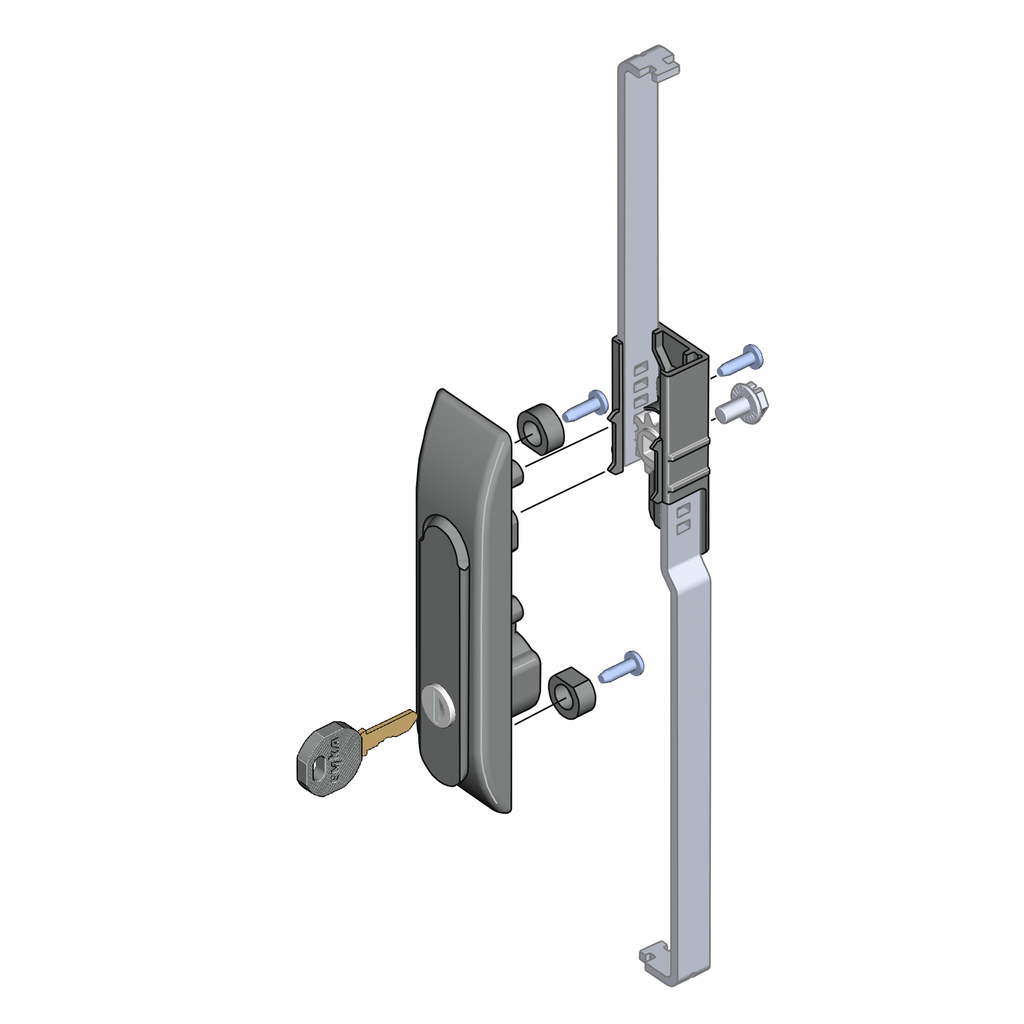

Swinghandle for rod control, keyed EK 333, Polyamide and zinc die black powder-coated

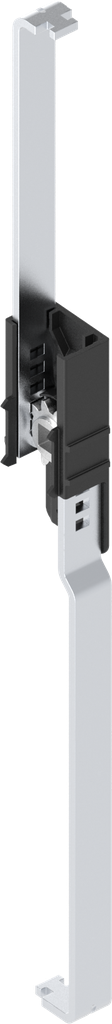

Rod control, right version, Polyamide and steel black and zinc-plated; 1160-U200-RE
100% original guarantee
Return within 30days
Free delivery on all orders

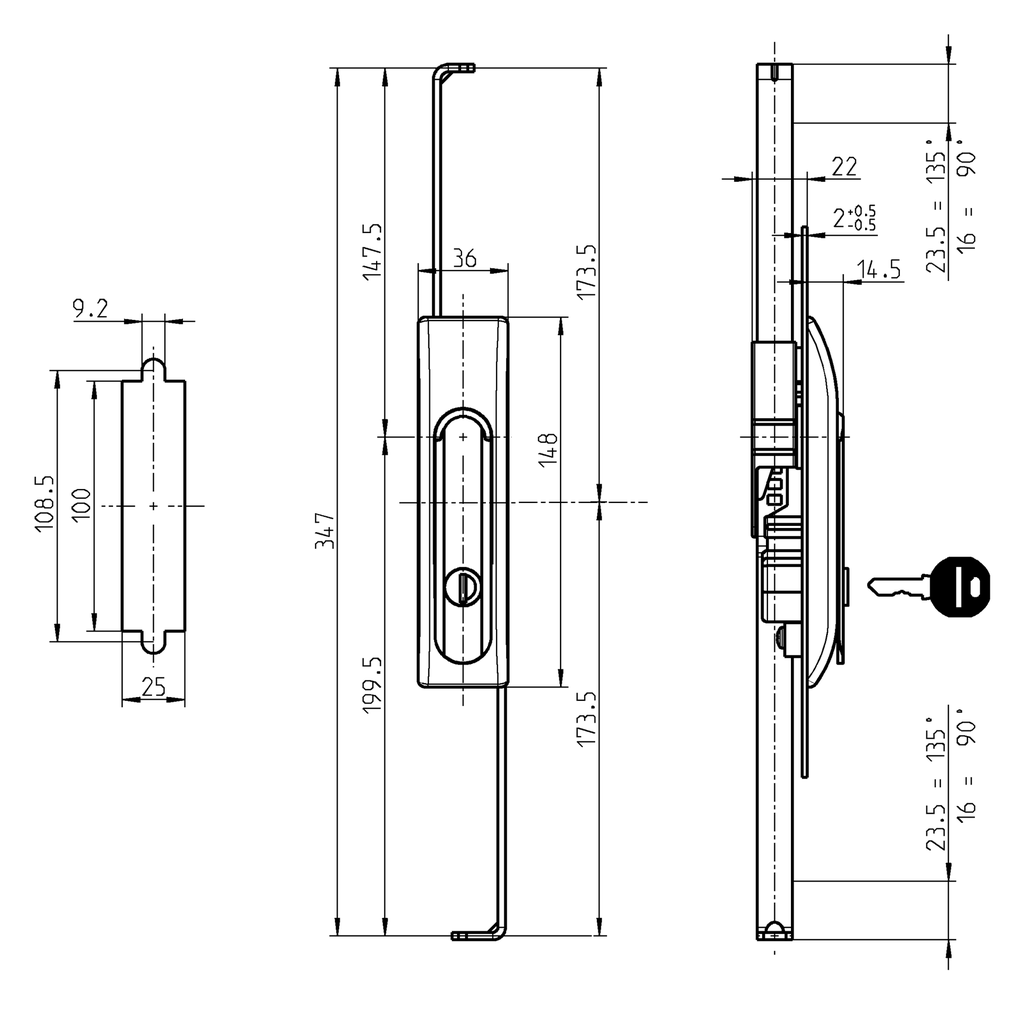

Function:
Turn 135° = Stroke 23.5 mm
Turn 90° = Stroke 16 mm
Internal Reference:
1160-U200-RE
Barcode:
1160-U00200-00000RE
Product Type:
Rod control
Program:
1160
Catalog sheet:
3D-140
Material of the module :
Polyamide and steel
Surface of the module:
black and zinc-plated
Rod:
Flat rod
Connection rod mount:
Rivet in T-shape, stamped
Mounting Positions :
Inside the sealing,Outside the sealing
Door Version :
Right
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
