Swinghandle for rods with insert slot 2 x 4, Zinc die black powder-coated
Rod with torsion for bottom, Steel zinc-plated
Rod with torsion for top, Steel zinc-plated; 1180-08-05RA
100% original guarantee
Return within 30days
Free delivery on all orders

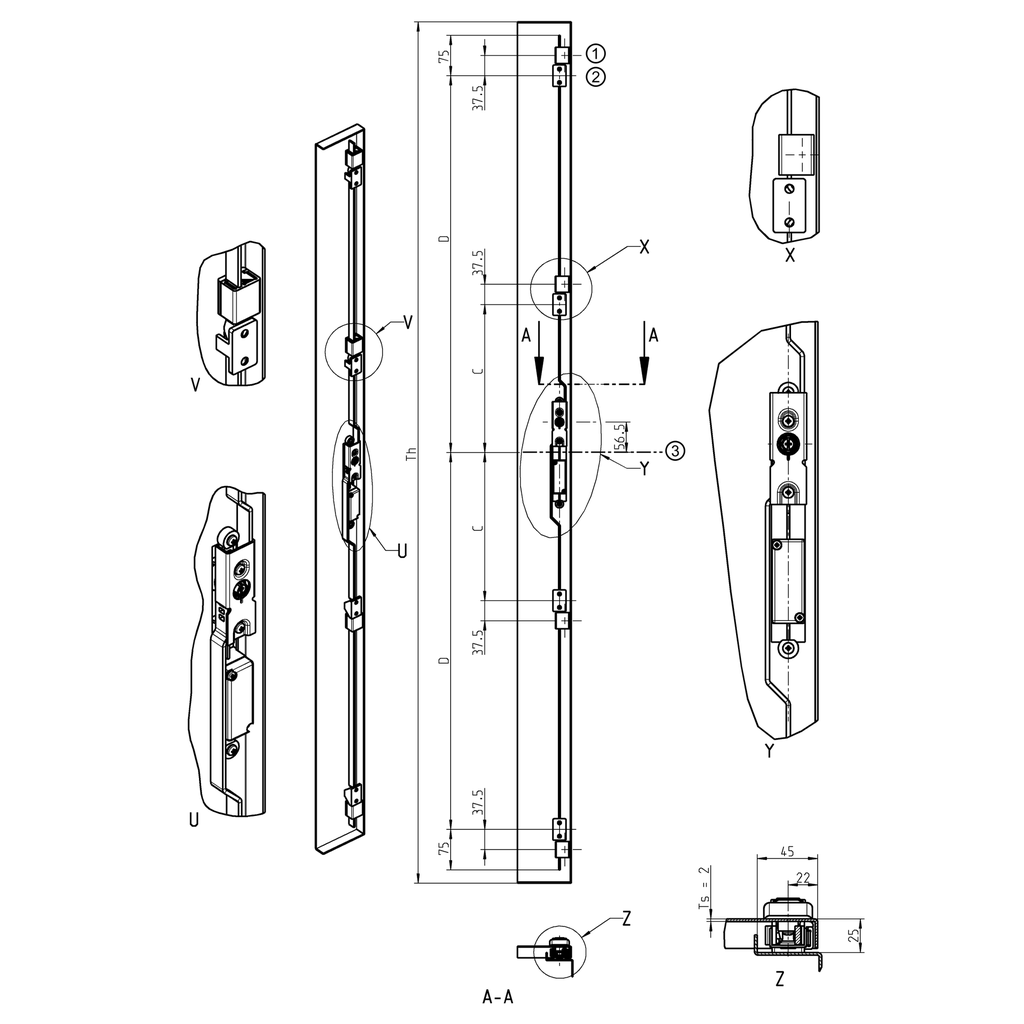

Product information:
① = Rod guide centre
② = Catch centre
③ = Door centre
Internal Reference:
1180-08-05RA
Barcode:
1180-000008-00005ra
Product Type:
Rod
Material:
Steel
Program:
1180
Surface:
zinc-plated
Catalog sheet:
3ZA-520
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes
C Dimension:
275
D Dimension:
700
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with torsion
For Door Height:
1600-1900
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
